On Board Diagnosis Logic
WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

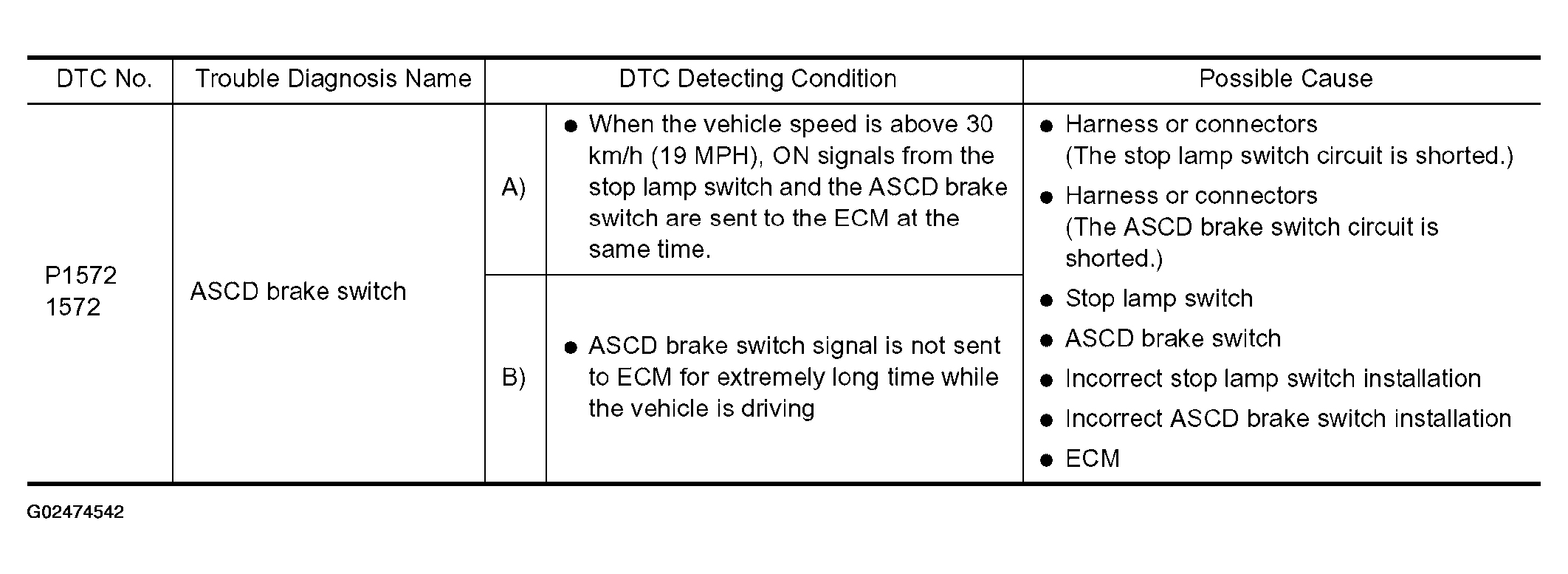

This self-diagnosis has the one trip detection logic.
The MIL will not light up for this diagnosis.
NOTE:
- If DTC P 1572 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605. Refer to "DTC P0605 ECM ".
- This self-diagnosis has the one trip detection logic. When malfunction A is detected, DTC is not stored in ECM memory. in that case, 1st trip DTC and 1st trip freeze frame data are displayed. 1st trip DTC is erased when ignition switch OFF. even when malfunction A is detected in two consecutive trips, DTC is not stored in ECM memory.
