Removal and Installation

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove AV switch. Refer to "REMOVAL AND INSTALLATION FOR AV SWITCH ".
  2. While pressing the tabs, push out the hazard switch.

Installation is in the reverse order of removal.

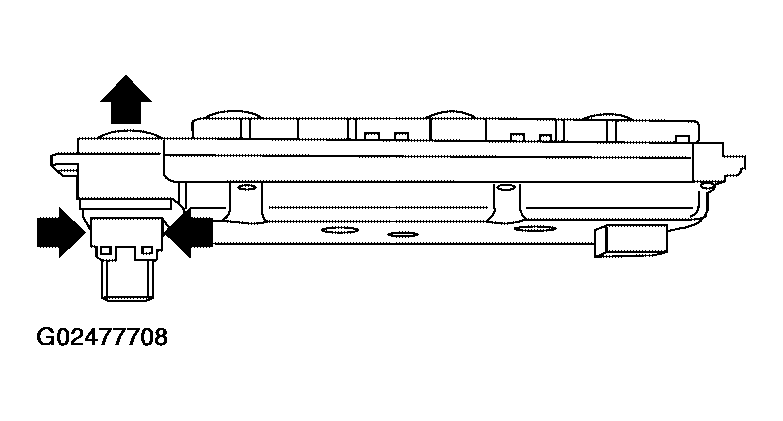

Fig 1: Pushing Out Hazard Switch
G02477708Courtesy of NISSAN MOTOR CO., U.S.A.
