Bulb Replacement

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove rear combination lamp mounting bolts.
  2. Pull rear combination lamp to remove from the vehicle.
  3. Turn bulb socket counterclockwise and unlock it.
  4. Remove bulb.

Installation is in the reverse order of removal.

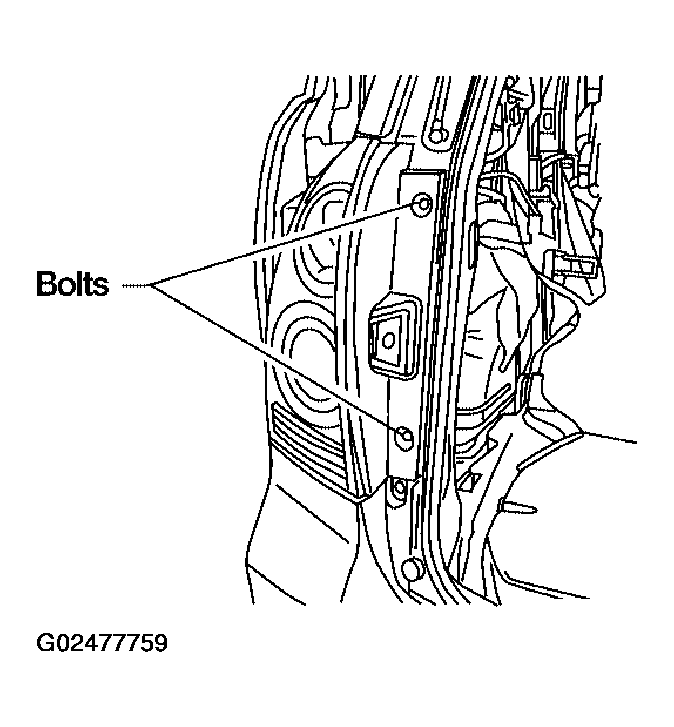

Fig 1: Removing Rear Combination Lamp Mounting Bolts
G02477759Courtesy of NISSAN MOTOR CO., U.S.A.
