Cross-section View

WARNING: This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

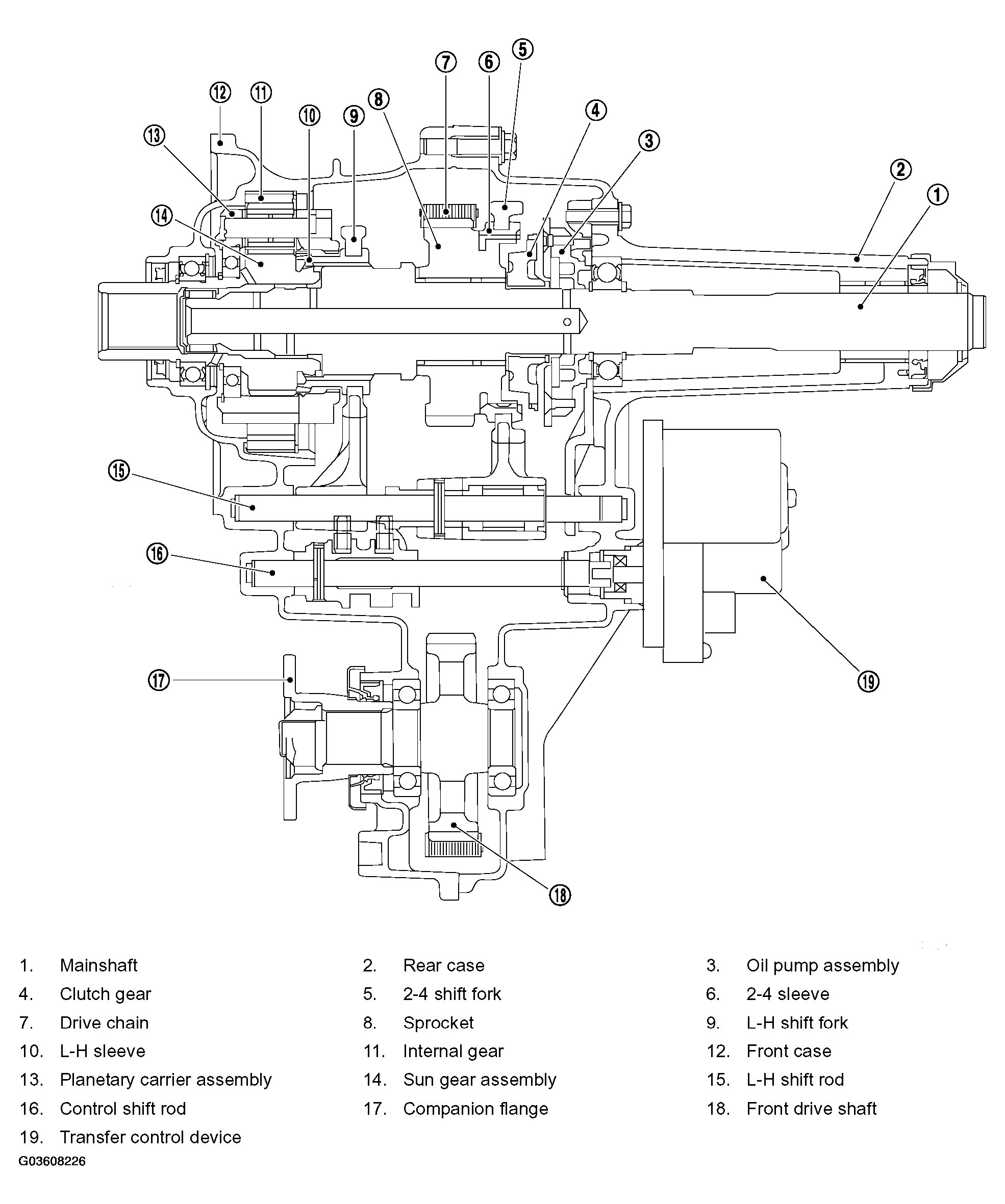

Fig 1: Cross-Section View - 4Wd System
G03608226Courtesy of NISSAN MOTOR CO., U.S.A.
