Disassembly (M/T Models)

WARNING: This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the retaining ring from the 2-4 shift fork, using suitable tool.
  2. Remove the fork guide collar and 2-4 shift fork spring from the 2-4 shift fork.
  3. Remove the clevis pin and shift collar from the 2-4 shift bracket.
  4. Remove the clevis pin and shift collar form the L-H shift fork.

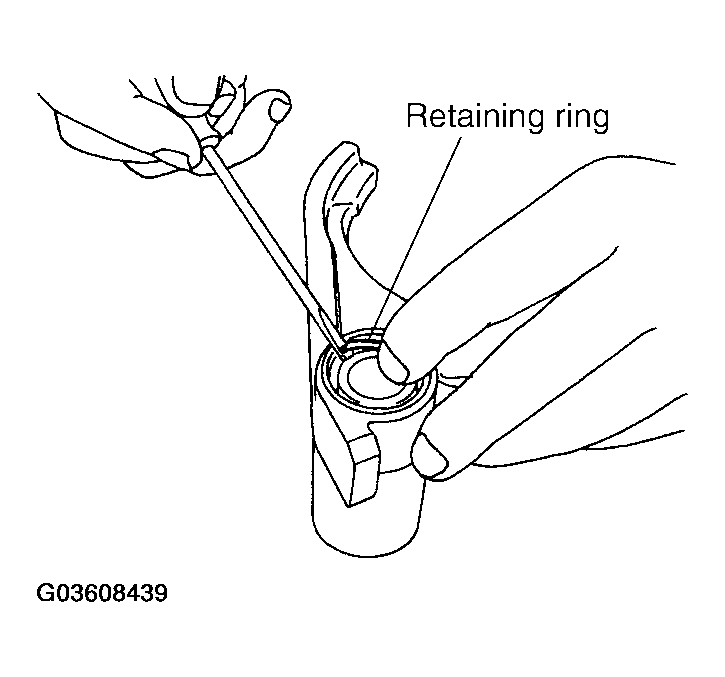

    Fig 1: Removing Retaining Ring From 2-4 Shift Fork, Using Suitable Tool
    G03608439Courtesy of NISSAN MOTOR CO., U.S.A.
