Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Switch the 4WD shift switch to 2WD and set the transfer assembly to 2WD.
  2. Disconnect the transfer control device connector.
  3. Remove the breather hose from the transfer control device.
  4. Remove the bolts and detach the transfer control device.

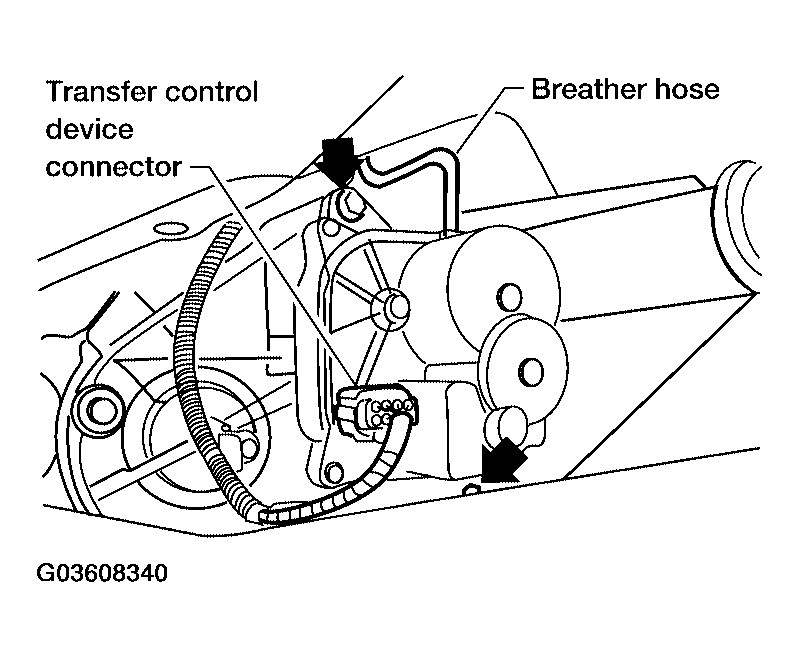

    Fig 1: Disconnecting Transfer Control Device Connector
    G03608340Courtesy of NISSAN MOTOR CO., U.S.A.
