Component Inspection

WARNING: This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch "OFF". (Stay for at least 5 seconds.)
Disconnect 4LO switch harness connector.
Remove 4LO switch. Refer to , "LOCATION OF ELECTRICAL PARTS ".

Push and release 4LO switch and check continuity between 4LO switch terminals 12 and 13.

CONNECTOR TERMINAL CONTINUITY SPECIFICATION

Terminal	Condition	Continuity
12 - 13	Push 4LO switch	Yes
12 - 13	Release 4LO switch	No

If NG, replace the 4LO switch.

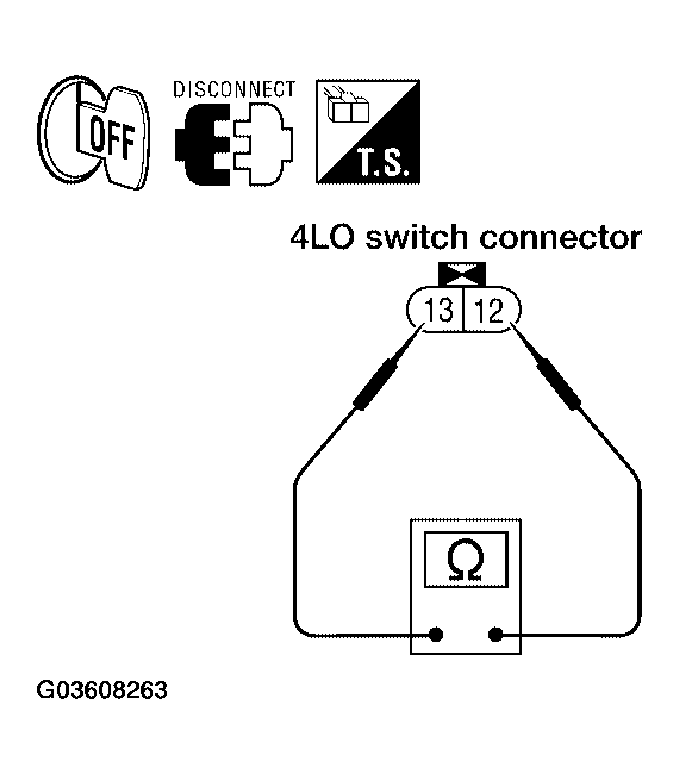

Fig 1: Checking Continuity Between 4LO Switch Terminals 12 And 13
Courtesy of NISSAN MOTOR CO., U.S.A.
