Side Shaft

WARNING: This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain gear oil, if necessary.
  2. Remove side oil seal using suitable tool.
    CAUTION: Do not damage gear carrier.

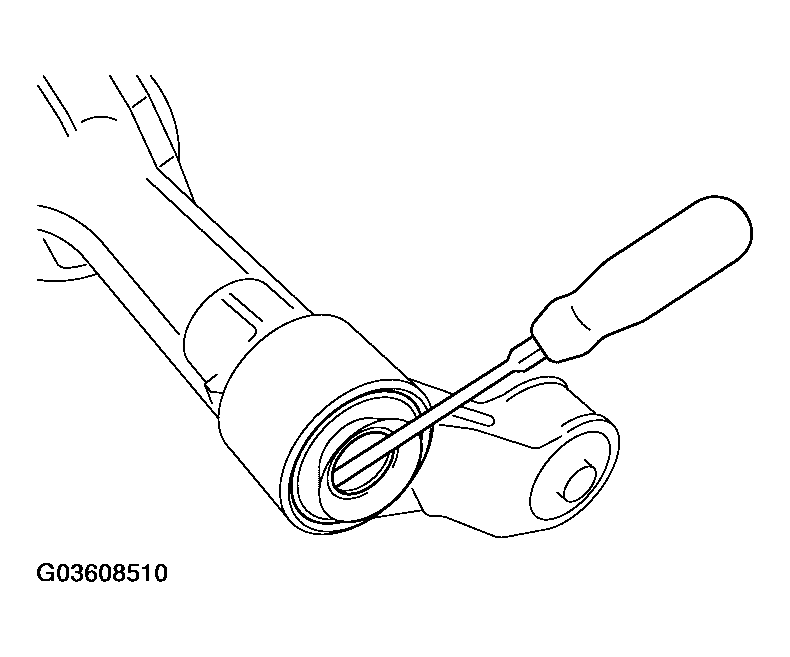

    Fig 1: Removing Side Oil Seal Using Suitable Tool
    G03608510Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove snap ring (hole side) using suitable tool.

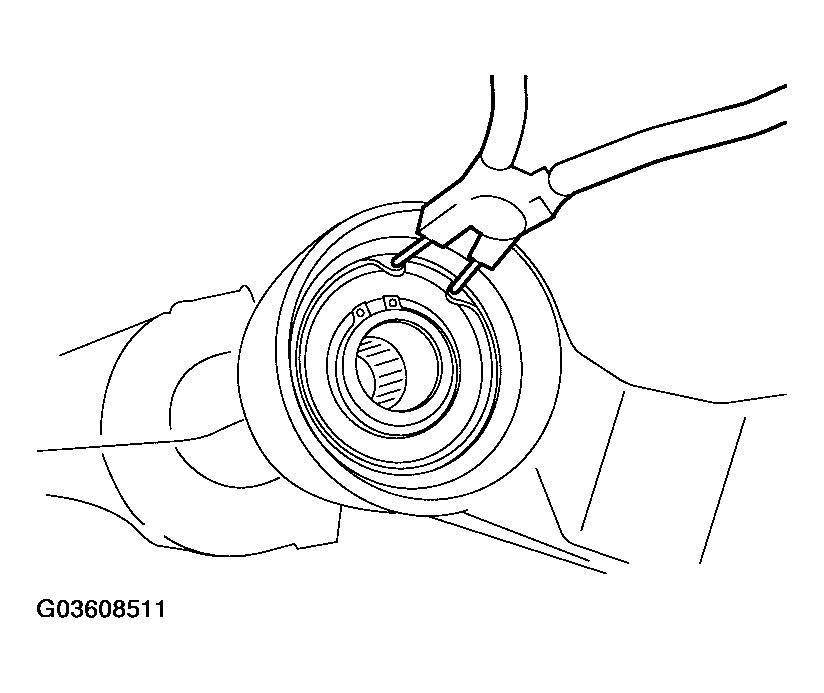

    Fig 2: Removing Snap Ring Using Suitable Tool
    G03608511Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove side shaft assembly out of gear carrier using suitable tool.
    NOTE: Tap on side shaft assembly from side gear side.
  5. Remove snap ring (shaft side).

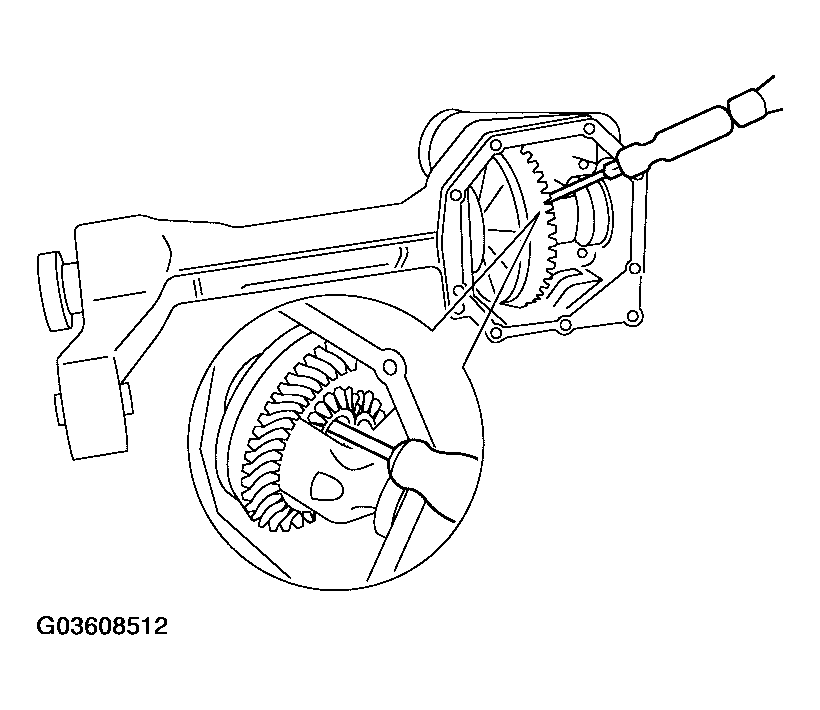

    Fig 3: Removing Side Shaft Assembly
    G03608512Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Press side shaft out of side shaft bearing.
    CAUTION: Do not drop side shaft.

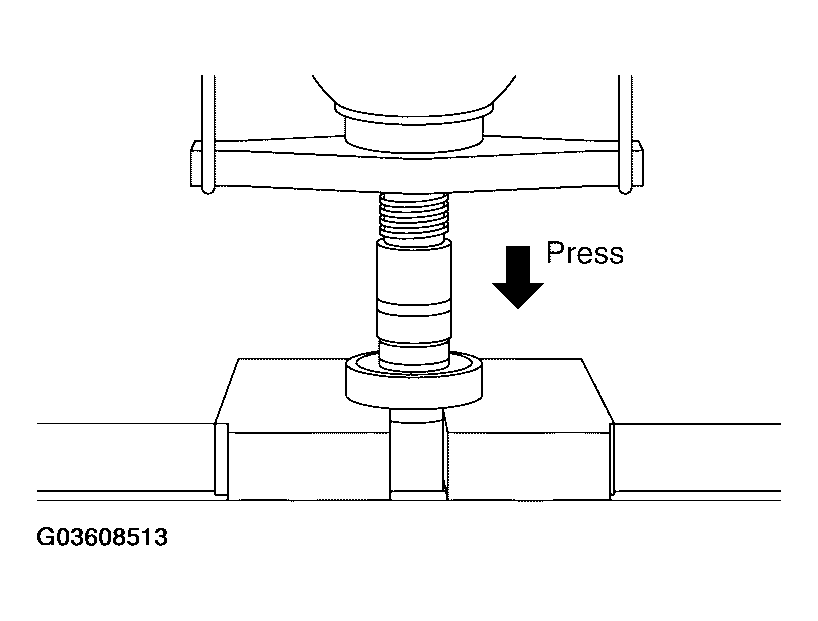

    Fig 4: Pressing Side Shaft Out Of Side Shaft Bearing
    G03608513Courtesy of NISSAN MOTOR CO., U.S.A.
