Consult-II Operation

WARNING: This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carries out CAN communication.
  1. With the ignition switch OFF, connect CONSULT-II and CONSULT- II CONVERTER to the data link connector, then turn ignition switch ON.

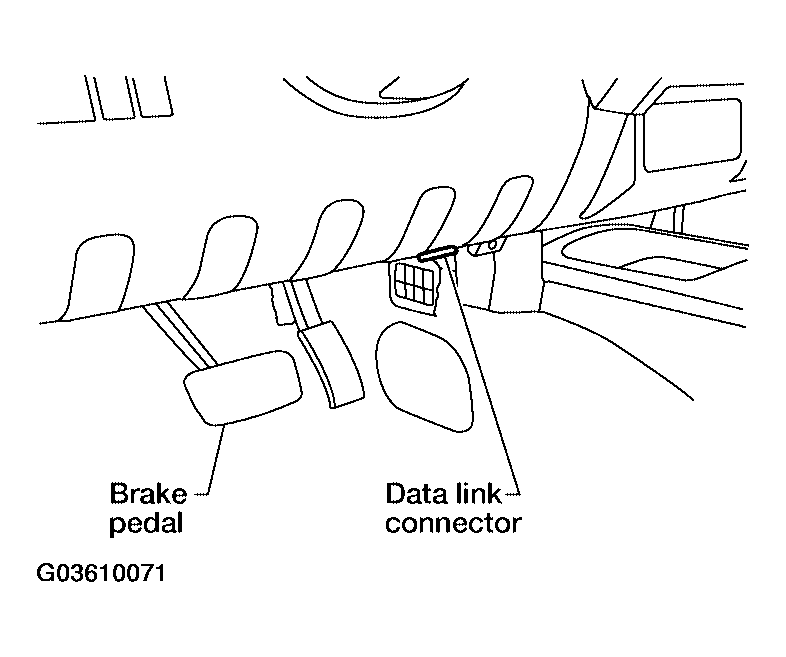

    Fig 1: Identifying Data Link Connector
    G03610071Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Touch "START (NISSAN BASED VHCL)".

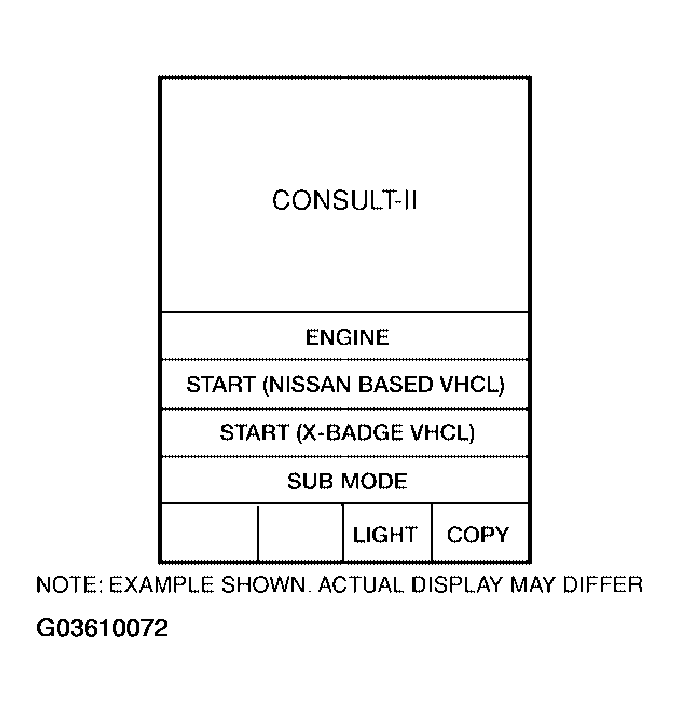

    Fig 2: CONSULT-II Display - START (NISSAN BASED VHCL)
    G03610072Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Touch "BCM" on "SELECT SYSTEM" screen.

    If "BCM" is not indicated, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

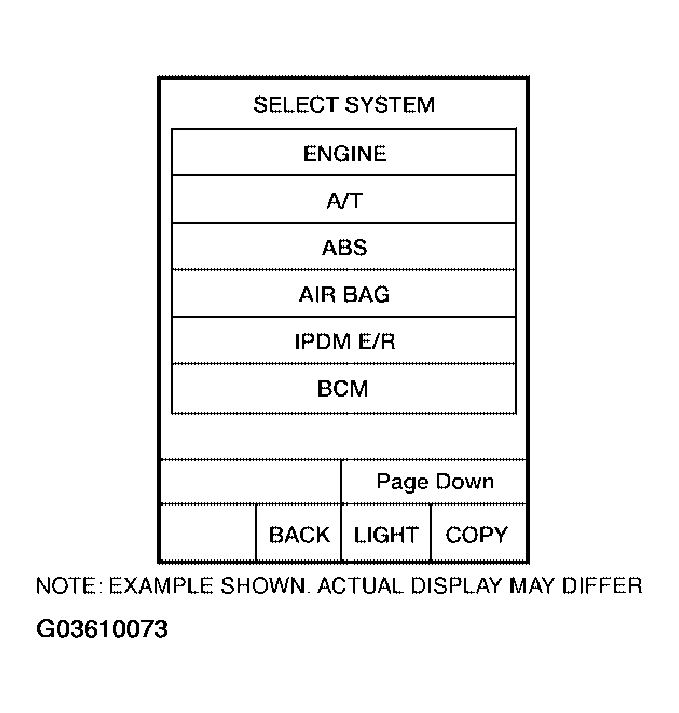

    Fig 3: CONSULT-II Display - BCM
    G03610073Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Touch "COMB SW" on "SELECT TEST ITEM" screen.

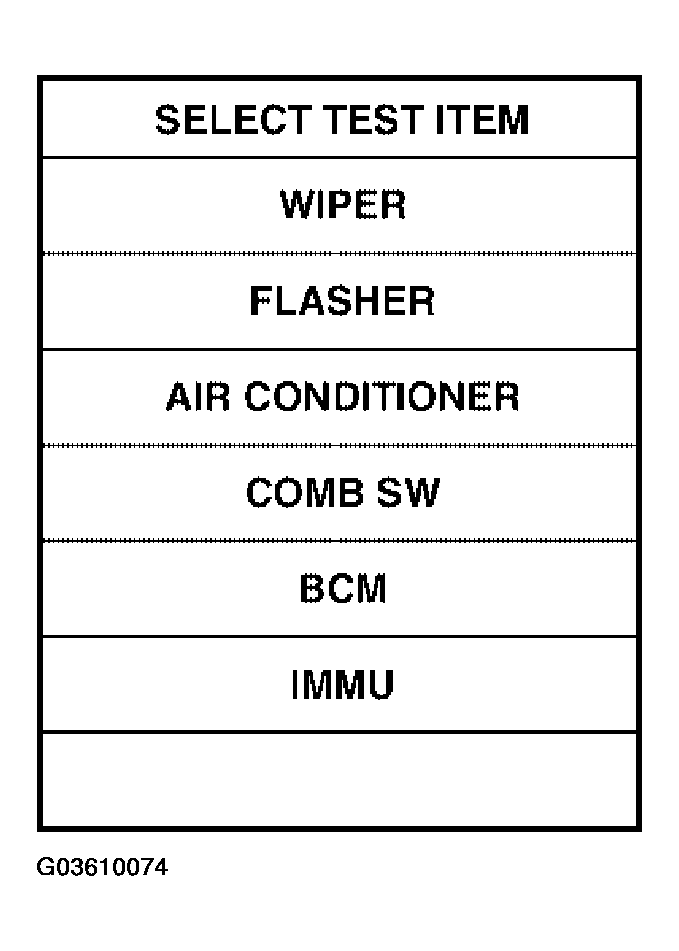

    Fig 4: CONSULT-II Display - COMB SW
    G03610074Courtesy of NISSAN MOTOR CO., U.S.A.
