Models With Power Door Locks

WARNING: This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK EACH SWITCH

    Select "BCM" on CONSULT-II. With "INT LAMP" data monitor, make sure switches listed in display item list turn ON-OFF linked with switch operation. Refer to "DISPLAY ITEM LIST " for switches and their functions.

    OK or NG

    • OK: GO TO 2.
    • NG: Inspect malfunctioning switch system.

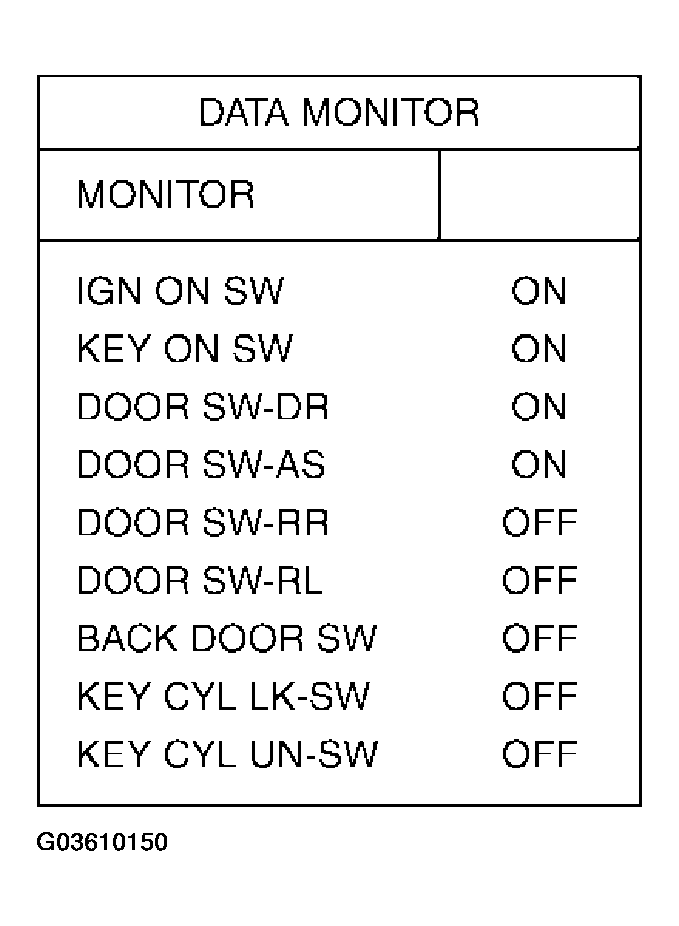

      Fig 1: CONSULT-II Screen Display - Data Monitor
      G03610150Courtesy of NISSAN MOTOR CO., U.S.A.
  2. ACTIVE TEST
    1. Select "BCM" on CONSULT-II. Select "INT LAMP".
    2. Select "LUGGAGE LAMP TEST" active test to make sure lamp operates.

    OK or NG

    • OK: Replace BCM. Refer to "REMOVAL AND INSTALLATION OF BCM ".
    • NG: GO TO 3.

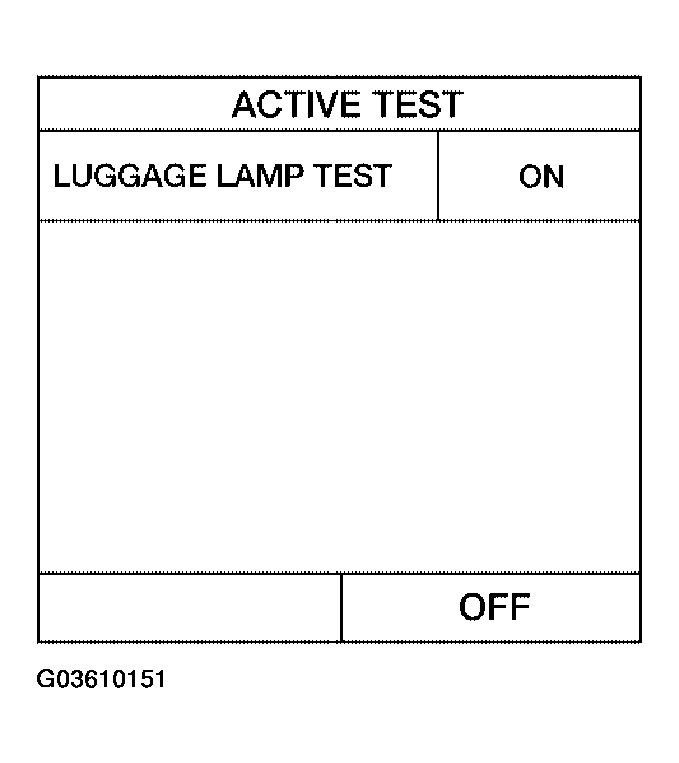

      Fig 2: CONSULT-II Screen Display - Active Test
      G03610151Courtesy of NISSAN MOTOR CO., U.S.A.
  3. CHECK CARGO LAMP POWER SUPPLY INPUT
    1. Check voltage between cargo lamp harness connector R11 terminal 2 and ground.
      CARGO LAMP CONNECTOR VOLTAGE CHART

      A (-) Voltage (Approx.)
      (+)
      Cargo lamp connector Terminal
      R11 2 Ground Battery voltage

    OK or NG

    • OK: GO TO 4.
    • NG: GO TO  6.

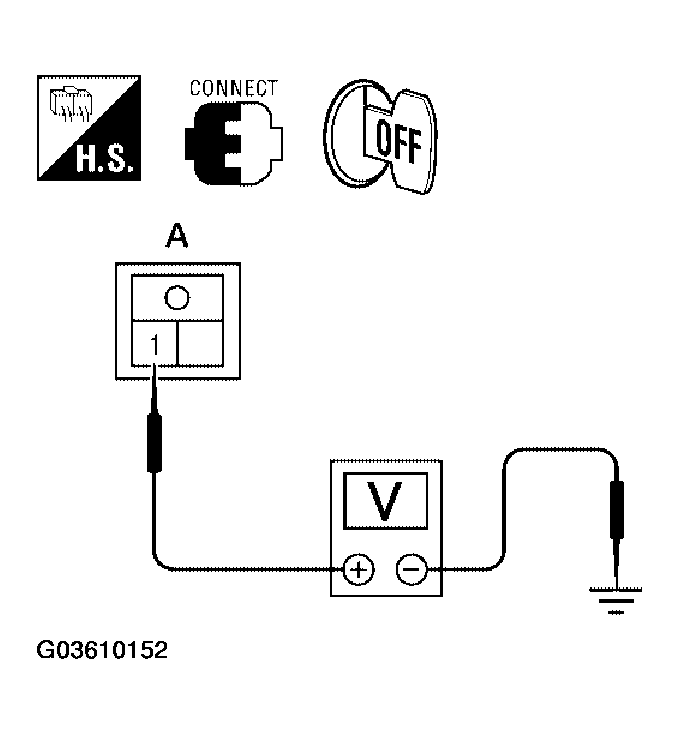

      Fig 3: Checking Voltage Between Cargo Lamp Connector R11 Terminal 2 And Ground
      G03610152Courtesy of NISSAN MOTOR CO., U.S.A.
  4. CHECK CARGO LAMP
      NOTE: Make sure cargo lamp operates with cargo lamp switch in ON position.
    1. Disconnect cargo lamp connector.
    2. Check continuity between cargo lamp terminals 1 and 2.
      CARGO LAMP CONTINUITY CHART

      A Continuity
      Cargo lamp terminal
      1 2 Yes

    OK or NG

    • OK: GO TO 5.
    • NG: Replace cargo lamp.

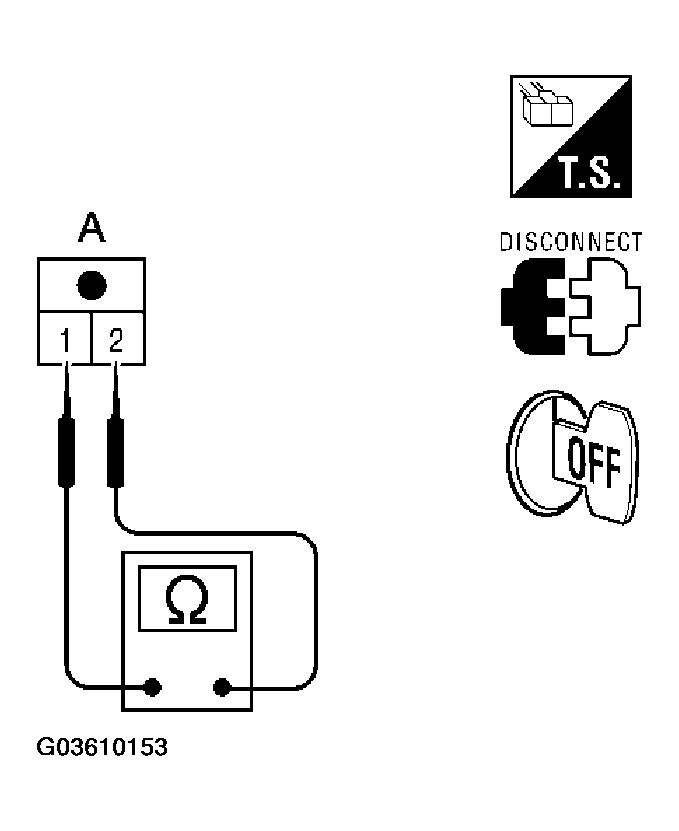

      Fig 4: Checking Continuity Between Cargo Lamp Terminals 1 And 2
      G03610153Courtesy of NISSAN MOTOR CO., U.S.A.
  5. CHECK CARGO LAMP CONTROL CIRCUIT
    1. Disconnect BCM connector.
    2. Check continuity between BCM harness connector M19 terminal 49 and cargo lamp harness connector R11 terminal 1.
      TERMINAL CONTINUITY CHART

      A B Continuity
      BCM connector Terminal Cargo lamp connector Terminal
      M19 49 R11 1 Yes

    OK or NG

    • OK: Replace BCM if cargo lamp does not work after setting the connector again. Refer to "REMOVAL AND INSTALLATION OF BCM ".
    • NG: Repair harness or connector.

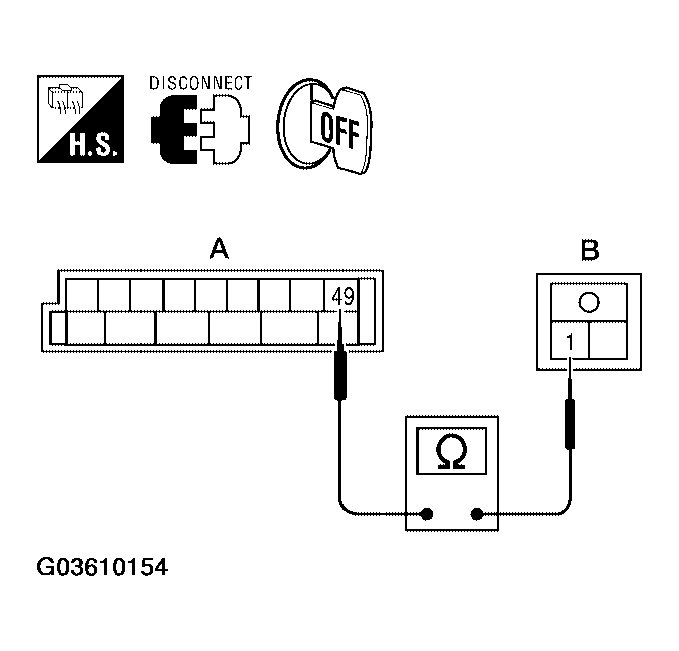

      Fig 5: Checking Continuity Between BCM Connector M19 Terminal 49 And Terminal 1
      G03610154Courtesy of NISSAN MOTOR CO., U.S.A.
  6. CHECK CARGO LAMP POWER SUPPLY CIRCUIT
    1. Disconnect BCM connector and cargo lamp connector.
    2. Check continuity between BCM harness connector M20 terminal 56 and cargo lamp harness connector R11 terminal 2.
      CARGO LAMP CONNECTOR CONTINUITY CHART

      A B Continuity
      BCM connector Terminal Cargo lamp connector Terminal
      M20 56 R11 2 Yes

    OK or NG

    • OK: Replace BCM if cargo lamp does not work after setting the connector again. Refer to "REMOVAL AND INSTALLATION OF BCM ".
    • NG: Repair harness or connector.

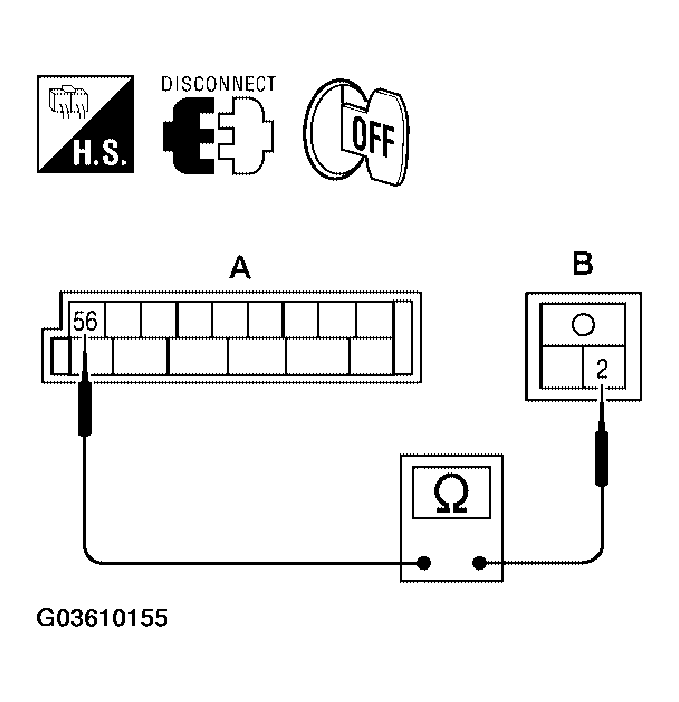

      Fig 6: Checking Continuity Between Terminal 56 And Terminal 2
      G03610155Courtesy of NISSAN MOTOR CO., U.S.A.
