Preliminary Check
WARNING:
This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

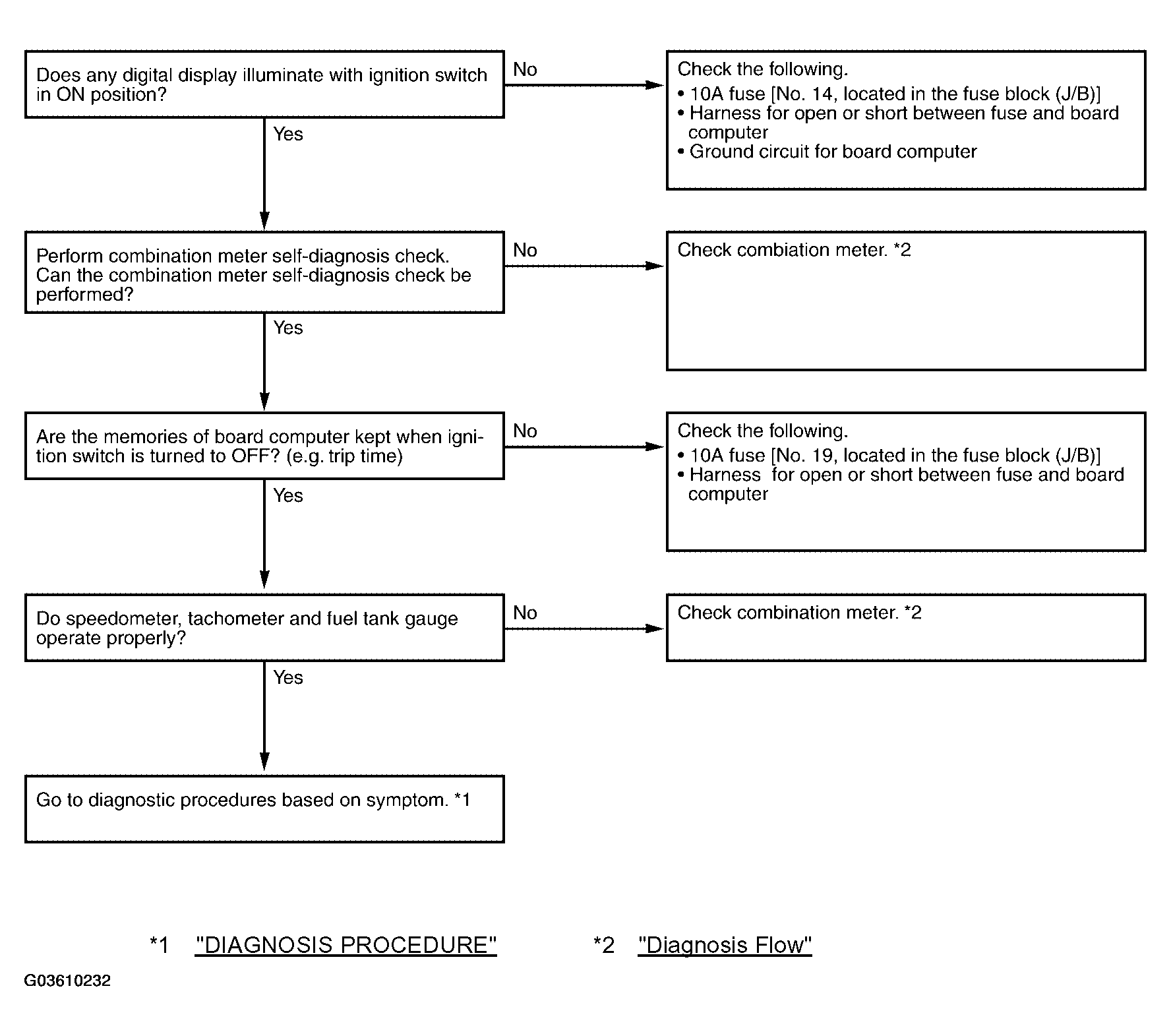

Fig 1: Trouble Diagnoses Preliminary Check Flow Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
