Consult-II Basic Operation Procedure

WARNING: This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carries out CAN communication.

With the ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to the data link connector, and turn ignition switch ON.

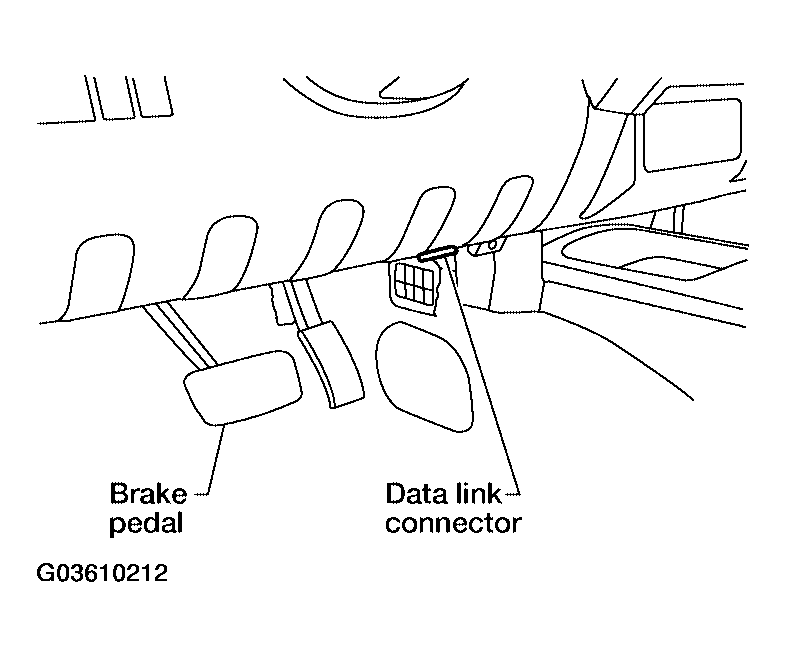

Fig 1: Identifying Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.

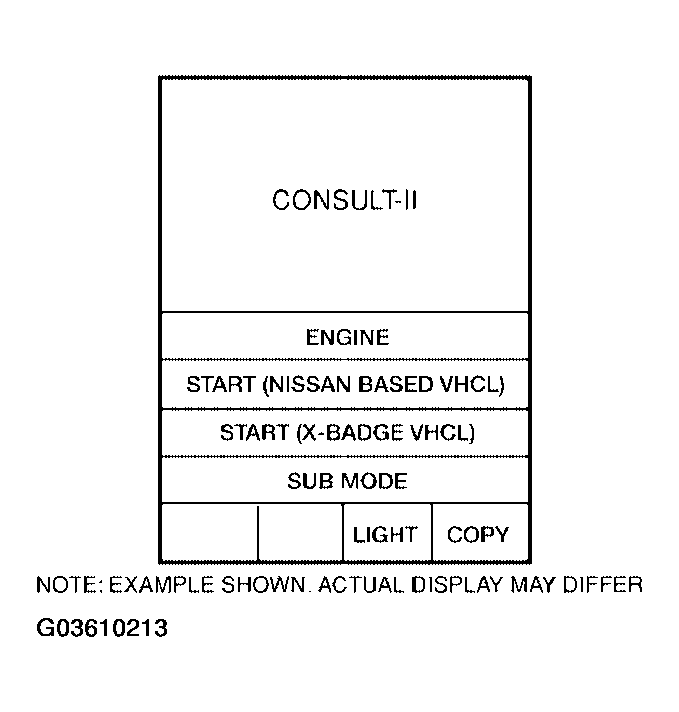

Touch "START (NISSAN BASED VHCL)".

Fig 2: CONSULT-II Display - START (NISSAN BASED VHCL)
Courtesy of NISSAN MOTOR CO., U.S.A.

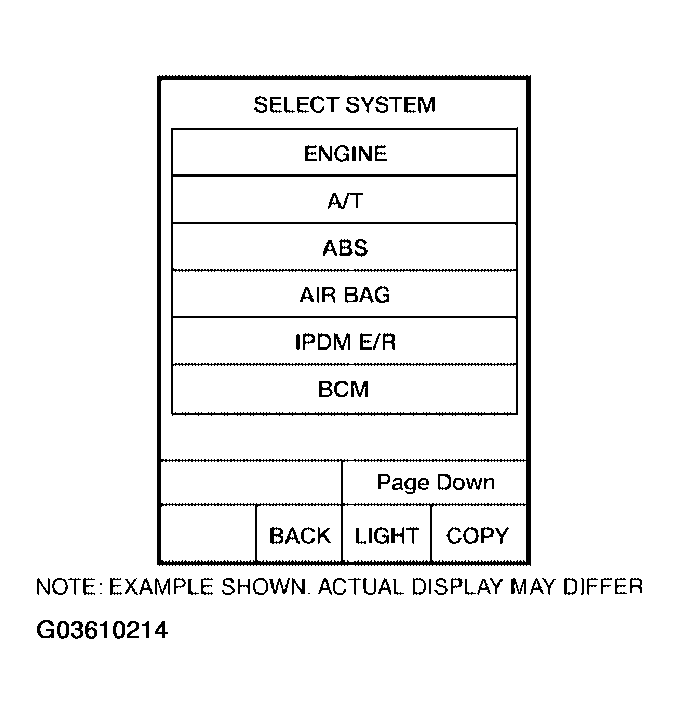

Touch "BCM" on "SELECT SYSTEM" screen. If "BCM" is not indicated, go to "CONSULT-II INSPECTION PROCEDURE ".

Fig 3: CONSULT-II Display - BCM
Courtesy of NISSAN MOTOR CO., U.S.A.

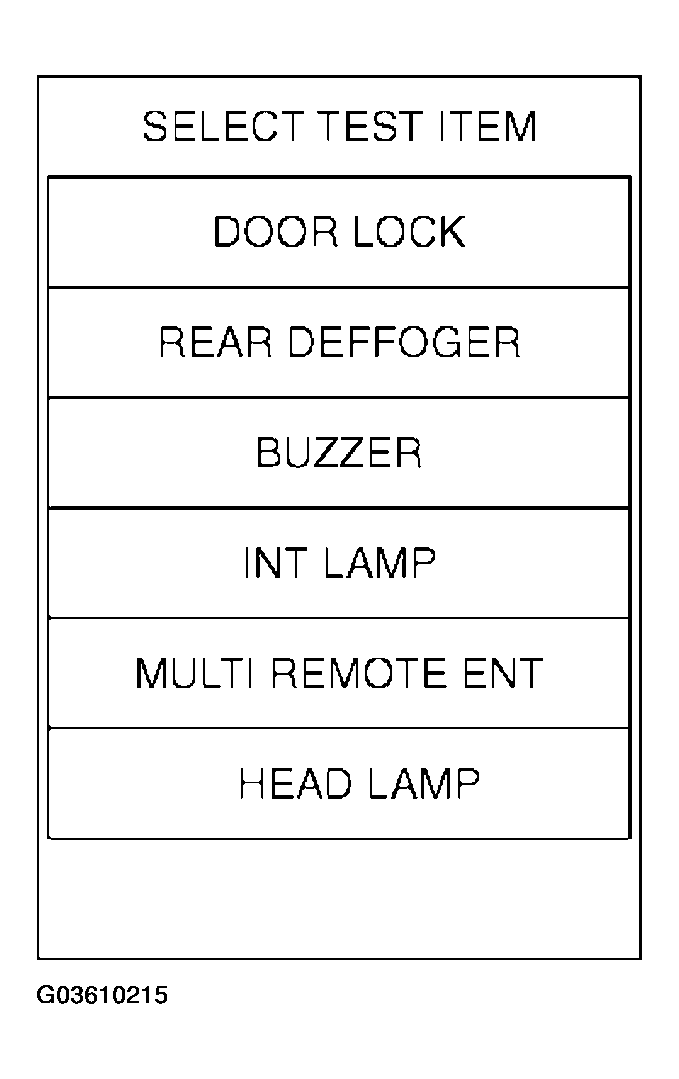

Touch "BUZZER" or "BCM".

Fig 4: CONSULT-II Display - BUZZER
Courtesy of NISSAN MOTOR CO., U.S.A.

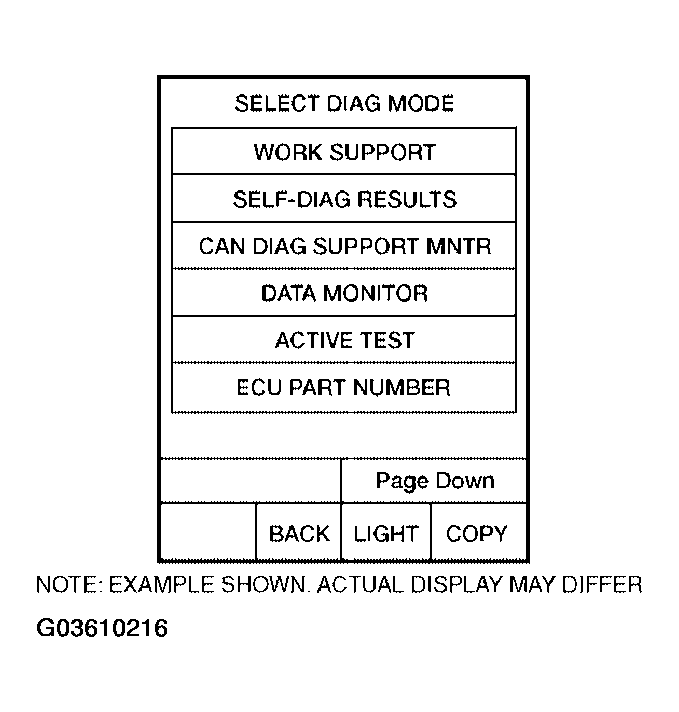

Select "DATA MONITOR" or "SELF-DIAG RESULTS".

Fig 5: CONSULT-II Display - DATA MONITOR
Courtesy of NISSAN MOTOR CO., U.S.A.
