Steering Gear
WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
STEERING GEAR SPECIFICATIONS
| Steering gear model | PR26AM |

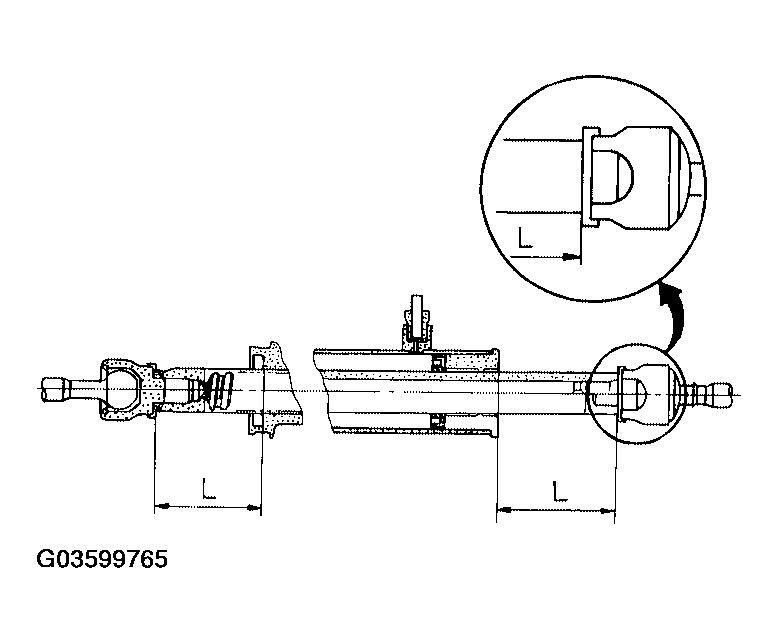

| Rack neutral position, dimension "L" (rack stroke) | 85.5 mm (3.36 in) |
STEERING GEAR SPECIFICATIONS
| Steering gear model | PR26AM | ||
| Rack sliding force | At the neutral point: Range within +/- 11.5 mm (+/-0.453 in) from the neutral position (in power ON) | Area average value | 147 - 211 N (14.99 - 21.52 kg, 33.1 - 47.52 lb) |
| Allowable variation | 98 N (10 kg, 22 lb) or less | ||
| Whole area (in power OFF) | Peak value | 294 N (30.0 kg, 66 lb) or less | |
| Allowable variation | 147 N (16 kg, 35 lb) or less | ||
