Steering Outer Socket and Inner Socket

WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

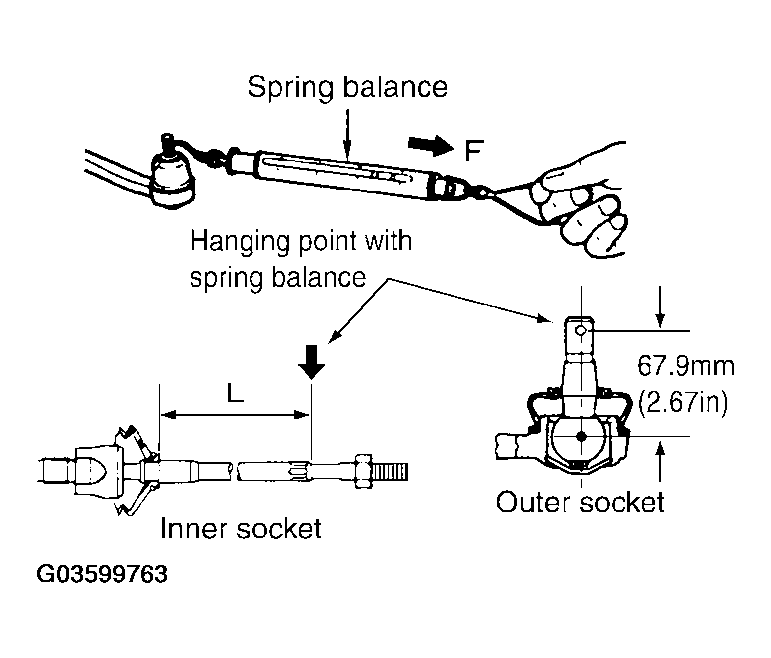

Fig 1: Identifying Steering Outer Socket And Inner Socket

Courtesy of NISSAN MOTOR CO., U.S.A.

STEERING OUTER SOCKET & INNER SOCKET SPECIFICATIONS

Tie-rod ball joint outer socket	Swinging torque	0.3 - 2.9 N.m (0.03 - 0.29 kg-m, 3 - 25 in-lb)
	Measurement on spring balance Measuring point: cotter pin hole of stud	4.84 - 46.7 N (0.50 - 4.7 kg, 4 - 34 lb)
	Rotating torque	0.3 - 2.9 N.m (0.03 - 0.29 kg-m, 3 - 25 in-lb)
	Axial end play	0.5 mm (0.020 in) or less
Tie-rod ball joint inner socket	Swinging torque	1.0 - 7.8 N.m (0.11 - 0.79 kg-m, 9 - 69 in-lb)
	Measurement on spring balance Measuring point: L mark see above, L=83.2 mm (3.276 in).	12.1 - 93.7 N (1.3 - 9.5 kg, 9 - 69 lb)
	Axial end play	0.2 mm (0.08 in) or less

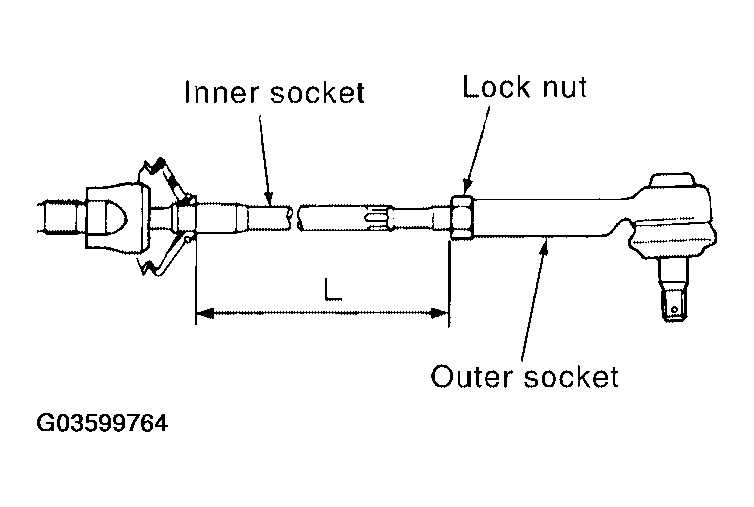

Fig 2: Identifying Steering Inner Socket Length

Courtesy of NISSAN MOTOR CO., U.S.A.

STEERING INNER SOCKET SPECIFICATION

Unit: mm (in)
Inner socket length "L"	115.2(4.54)
