Removal and Installation: Notes

WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

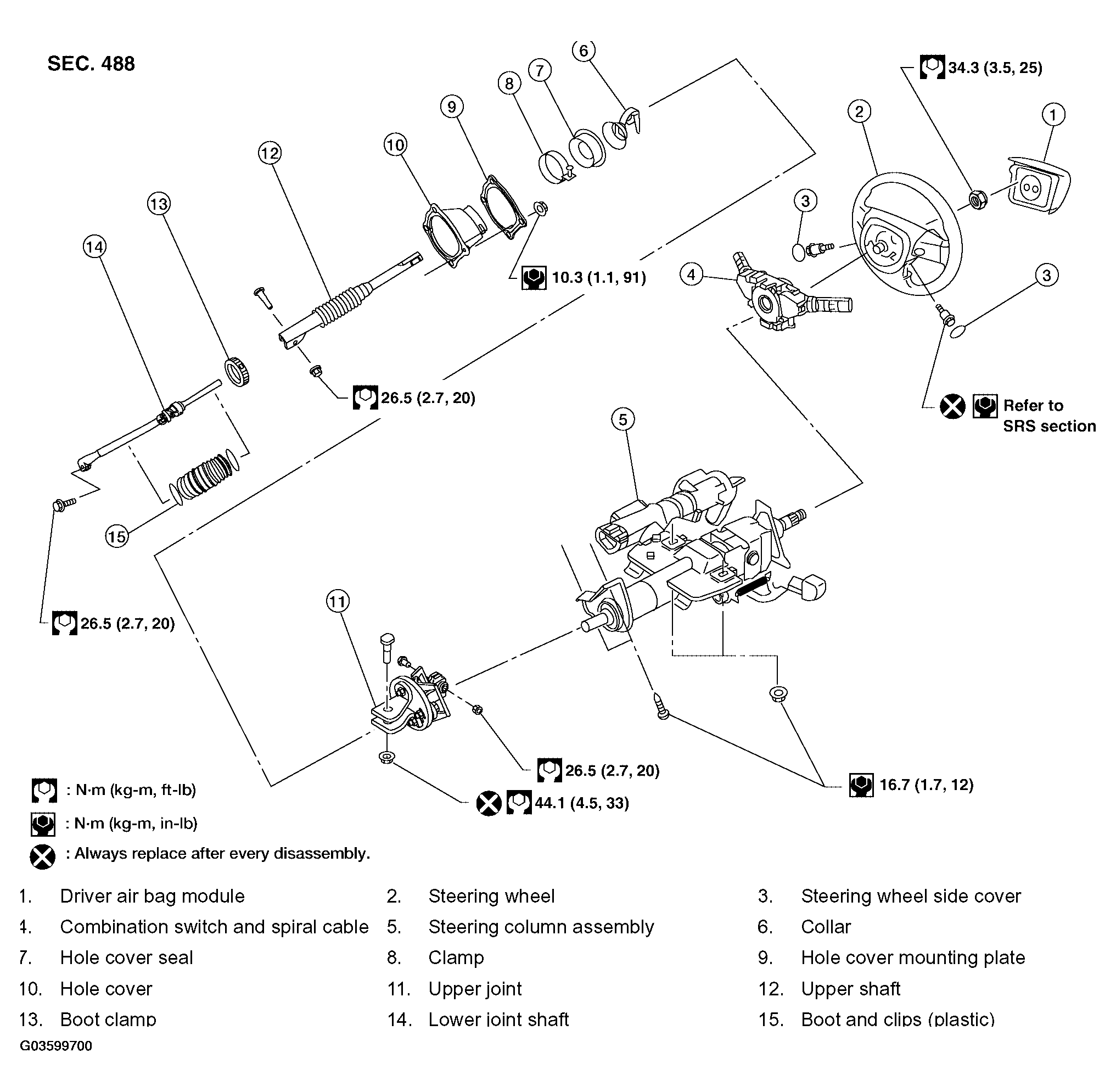

Fig 1: Exploded View Of Column Shift Model Steering Column And Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

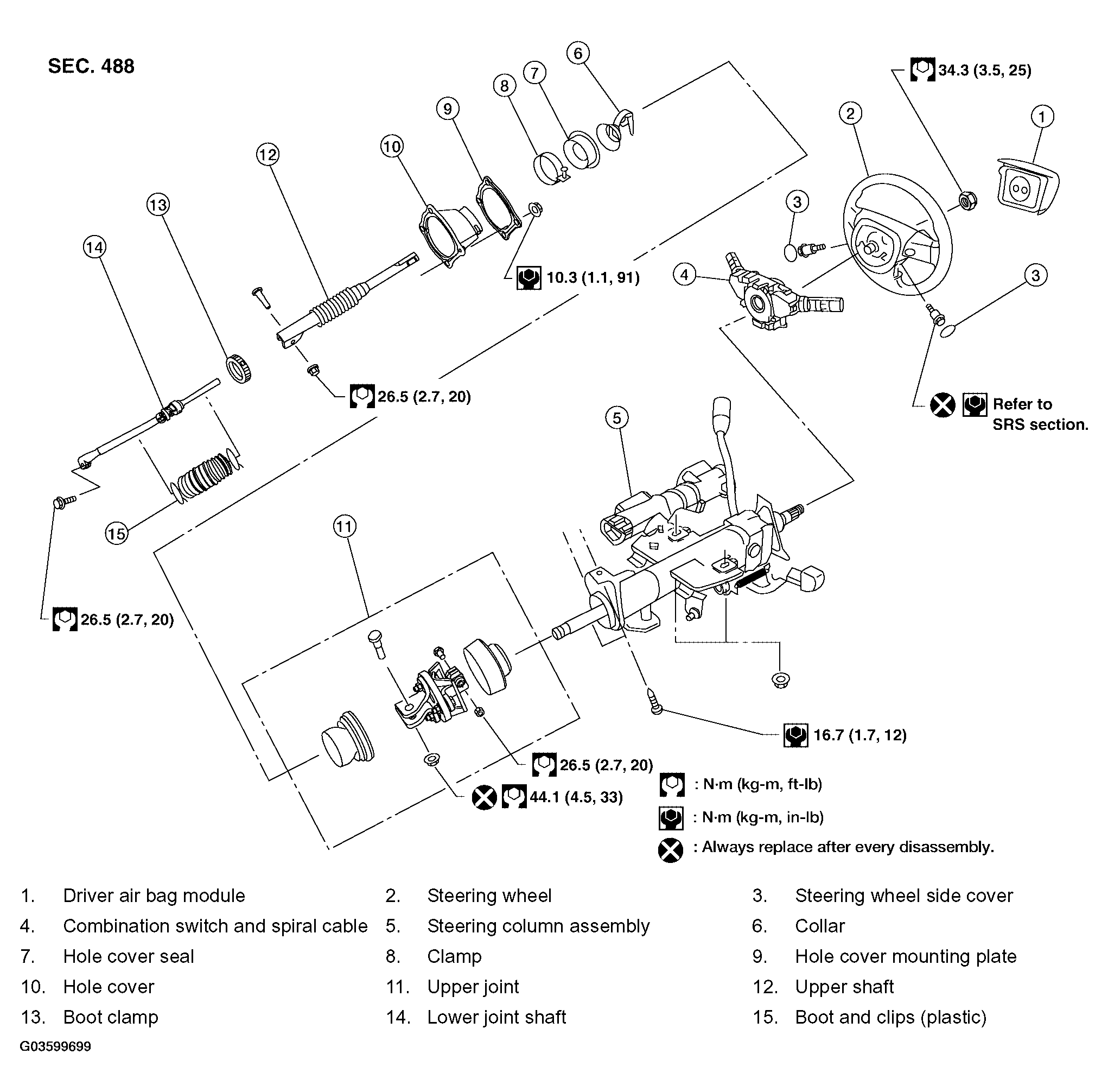

Fig 2: Exploded View Of Floor Shift Model Steering Column And Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION:

Care must be taken not to give axial impact to steering column assembly during removal and installation.
Care must be taken not to move steering gear during removal of steering column assembly.
