With ABS or BLSD: Notes
WARNING:
This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

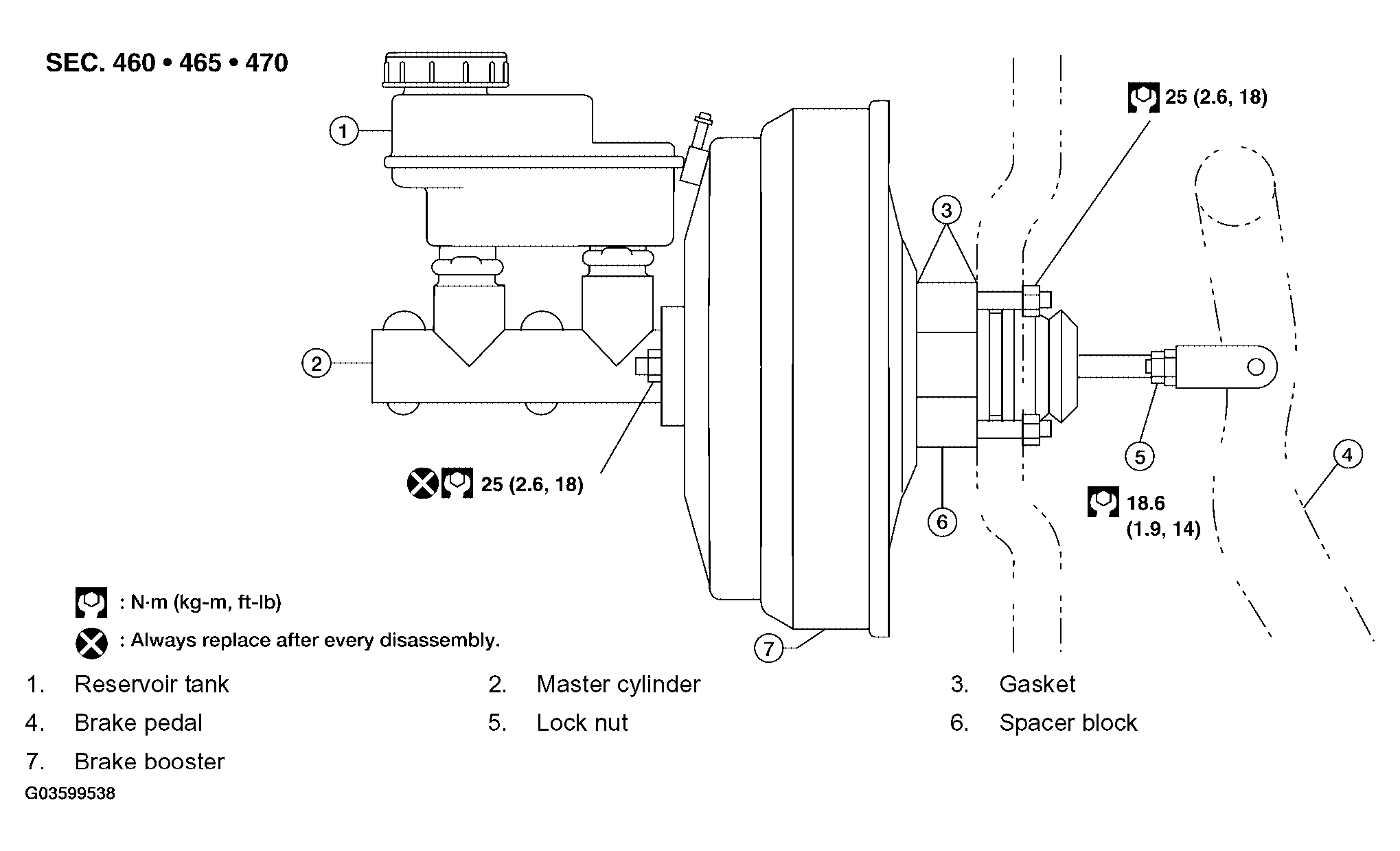

Fig 1: Brake Booster Replacement Components With Torque Specifications (With ABS Or BLSD)
Courtesy of NISSAN MOTOR CO., U.S.A.
