With ABLS or VDC: Notes

WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

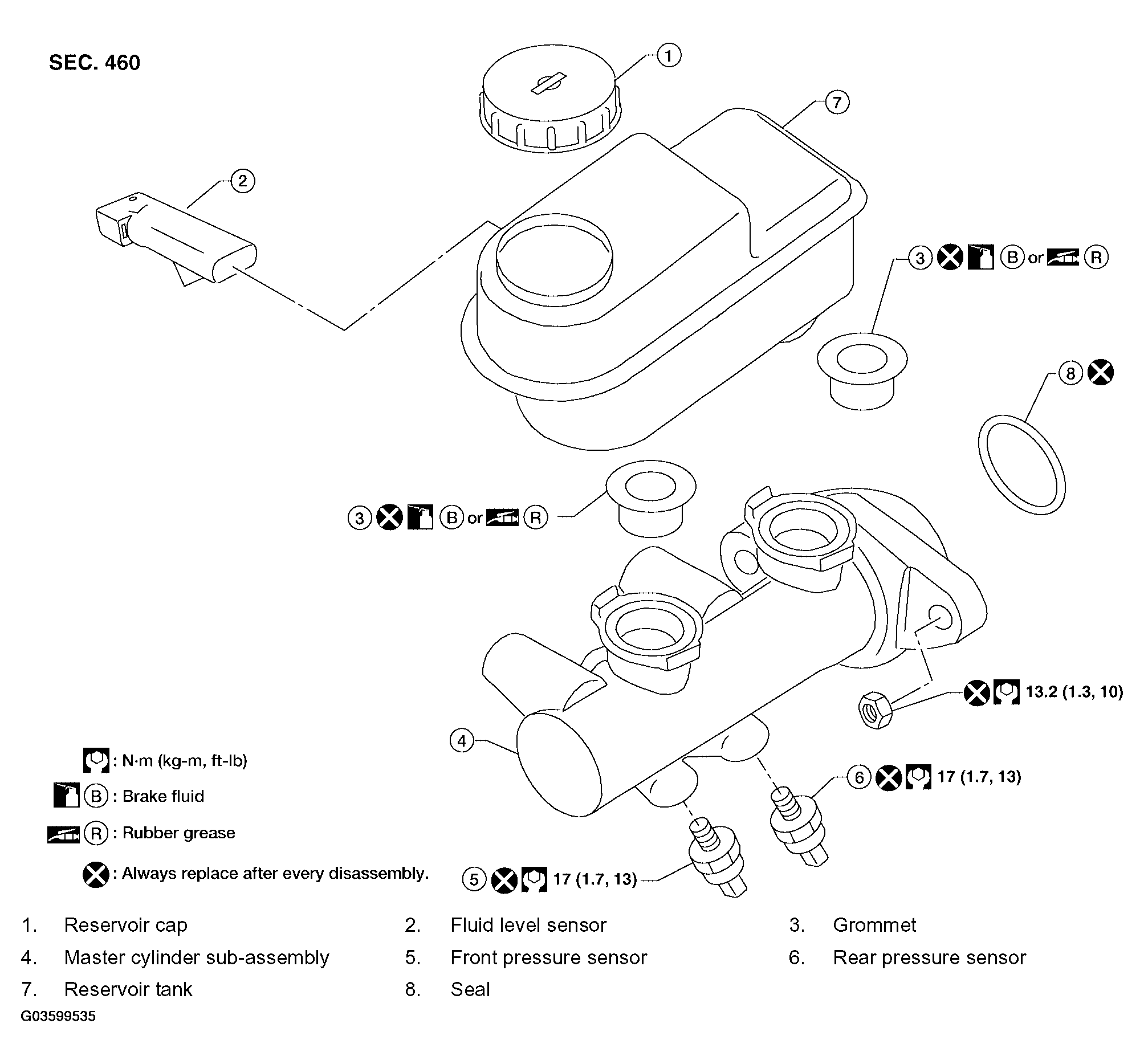

Fig 1: Brake Master Cylinder With Torque Specifications (With ABLS Or VDC)

Courtesy of NISSAN MOTOR CO., U.S.A.
