WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

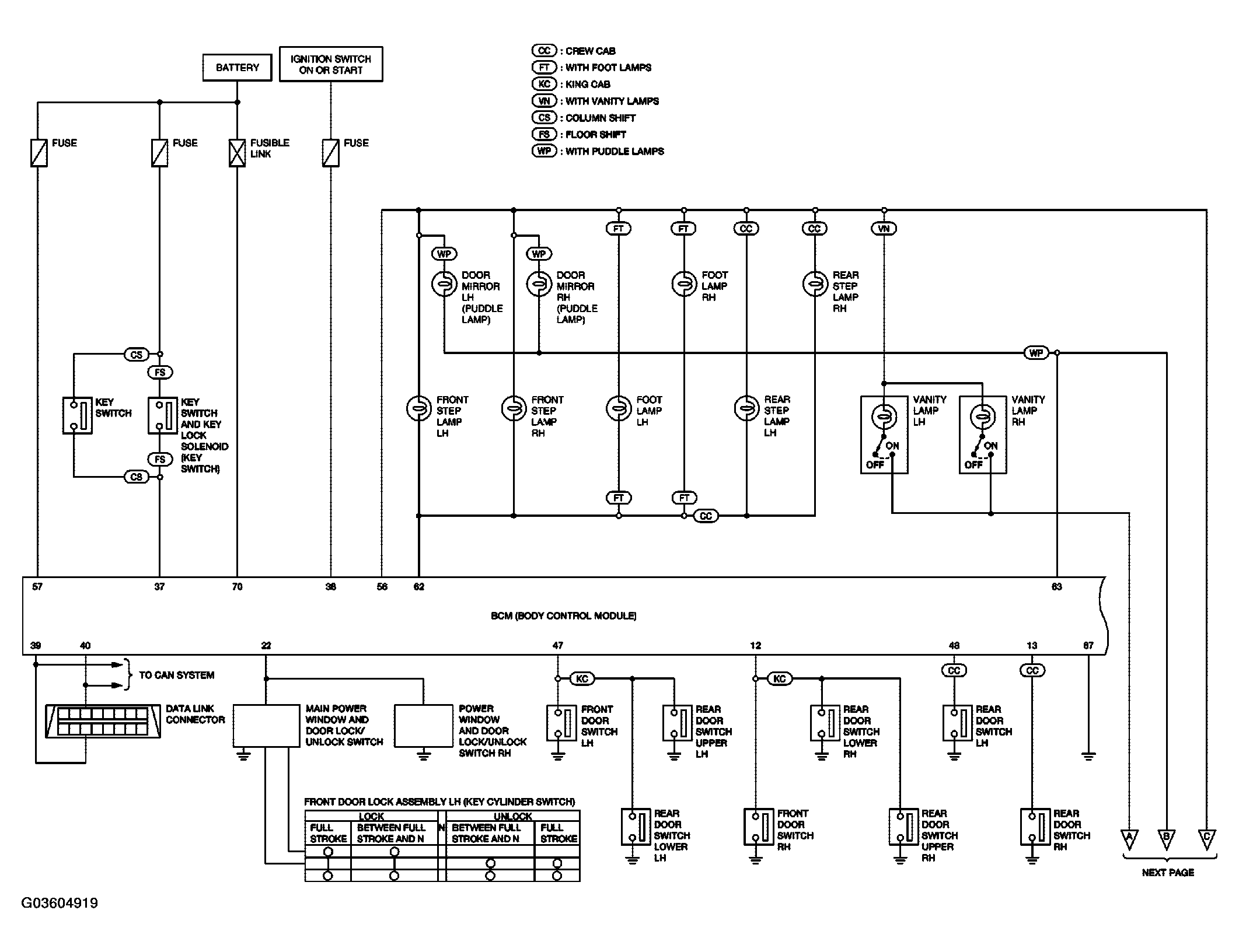

Fig 1: Interior Room Lamp Schematic Diagram (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

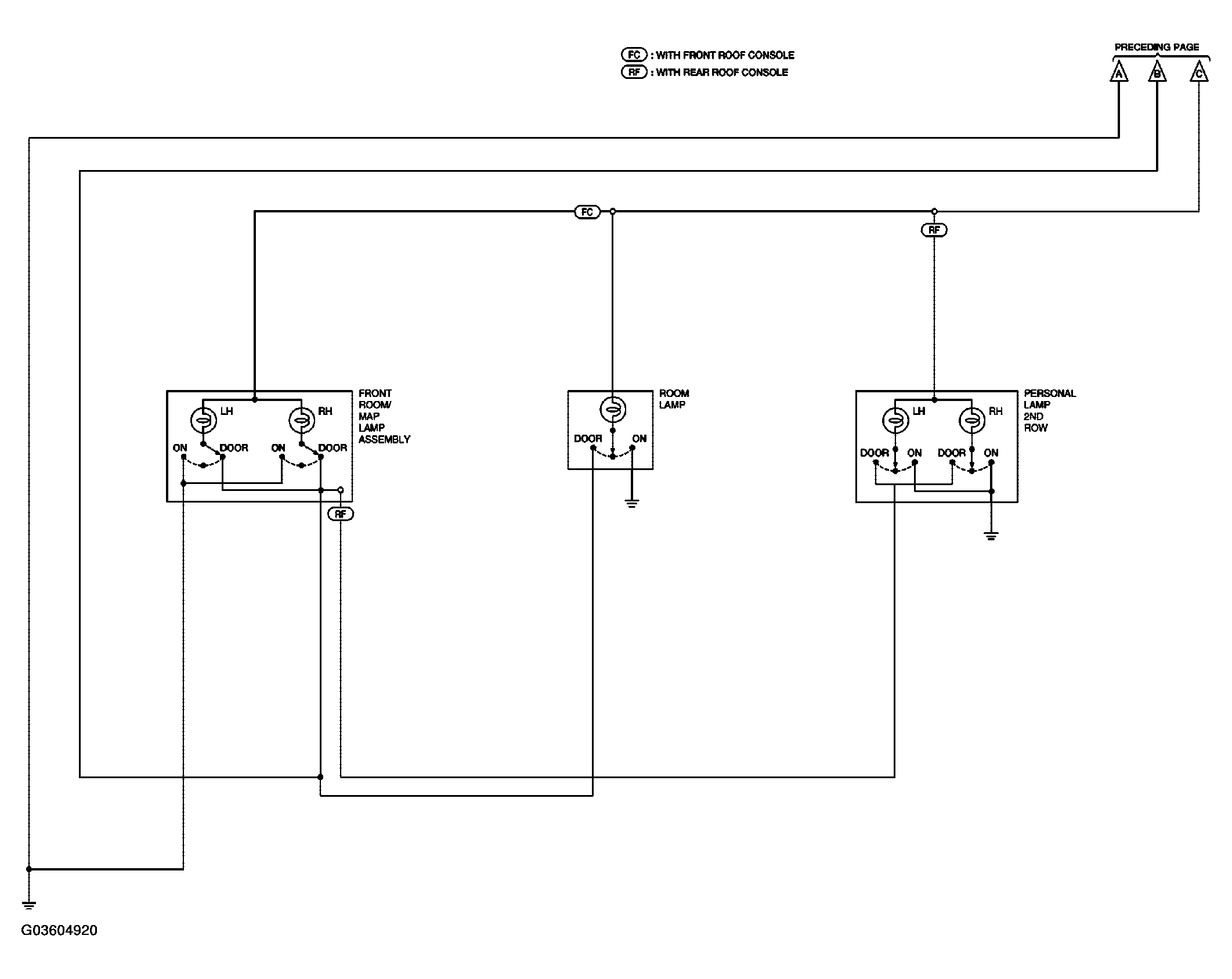

Fig 2: Interior Room Lamp Schematic Diagram (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

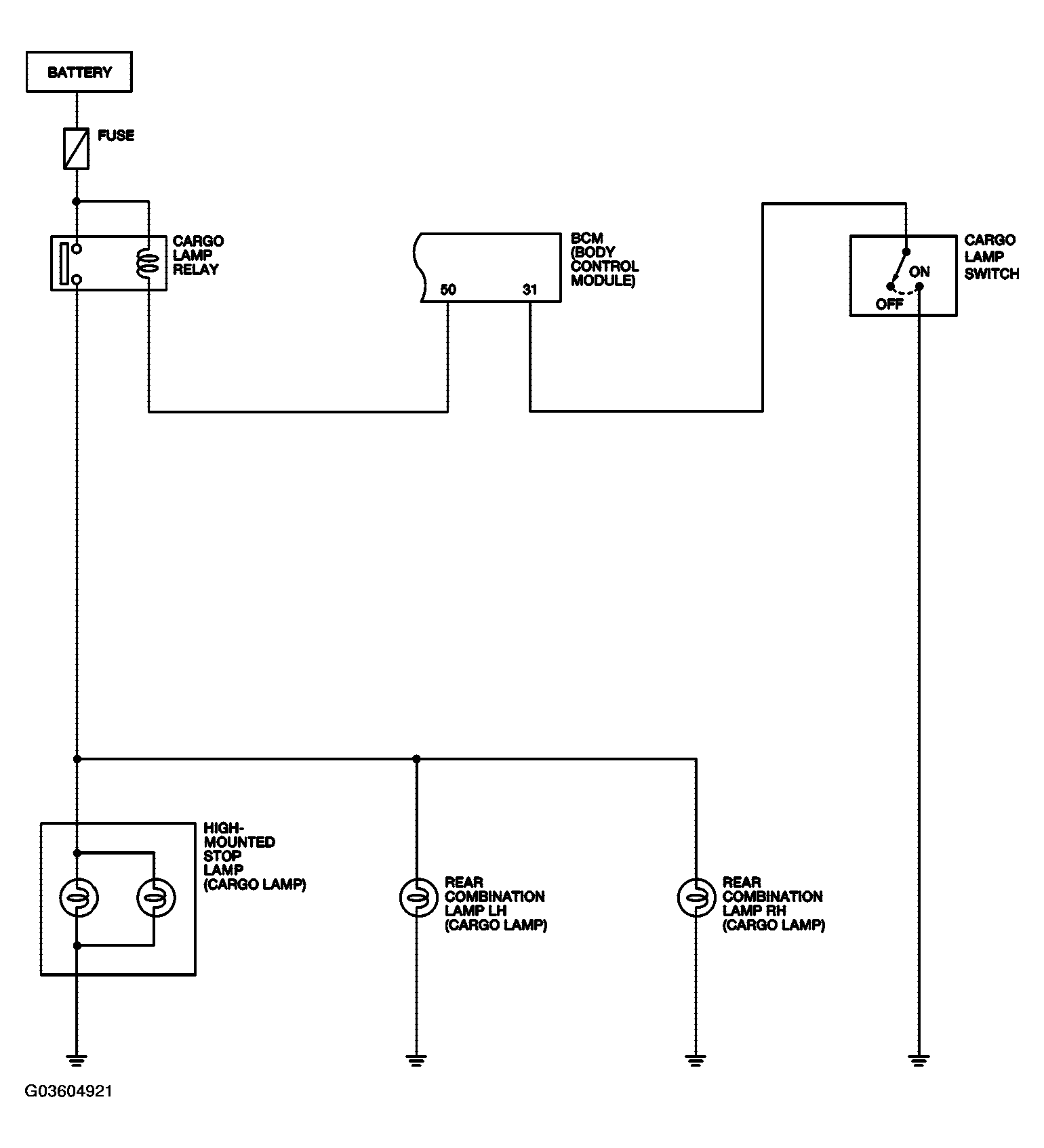

Fig 3: Interior Room Lamp Schematic Diagram (3 Of 3)
