Bulb Replacement

WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove rear combination lamp mounting bolts.
  2. Pull rear combination lamp to remove from the vehicle.
  3. Turn bulb socket counterclockwise and unlock it.
  4. Remove bulb.

    Installation is in the reverse order of removal.

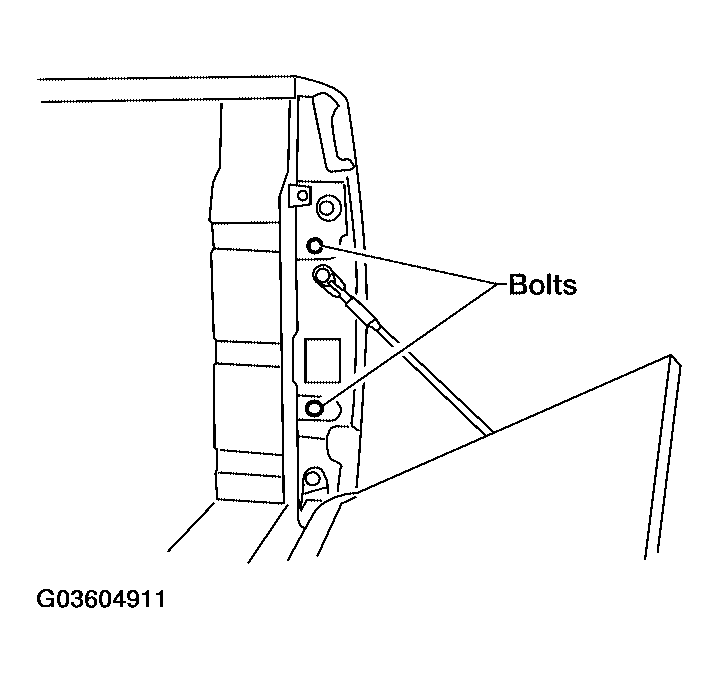

    Fig 1: Removing Rear Combination Lamp Mounting Bolts - For Bulb Replacement
    G03604911Courtesy of NISSAN MOTOR CO., U.S.A.
