Disassembly and Assembly: Assembly

WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Install the rear bearing, using Tools.
Tool number A: KV38100500 (-)

B: ST30901000 (J-26010-01)

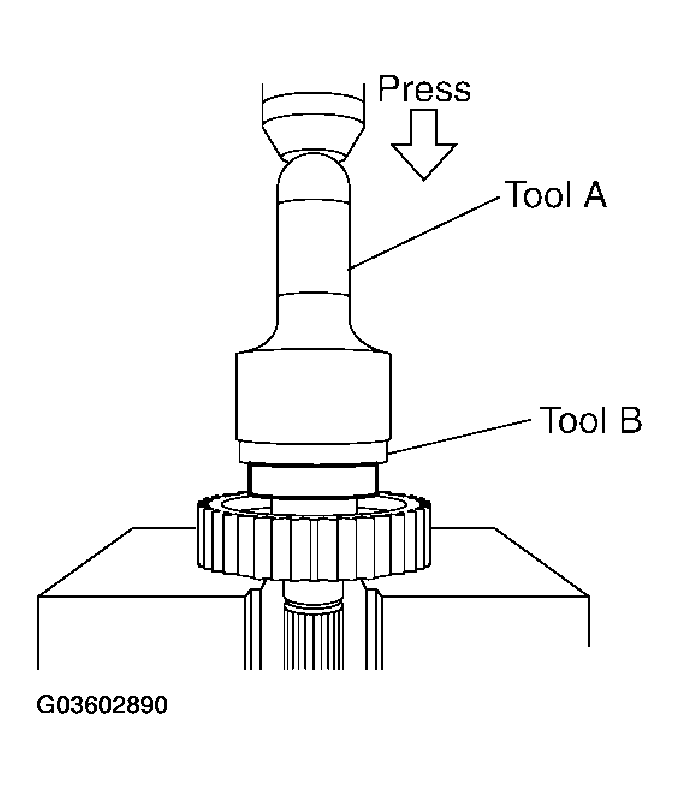

Fig 1: Installing Rear Bearing
Courtesy of NISSAN MOTOR CO., U.S.A.
Install the front bearing, using Tools.
Tool number A: KV38100500 (-)

B: ST30901000 (J-26010-01)

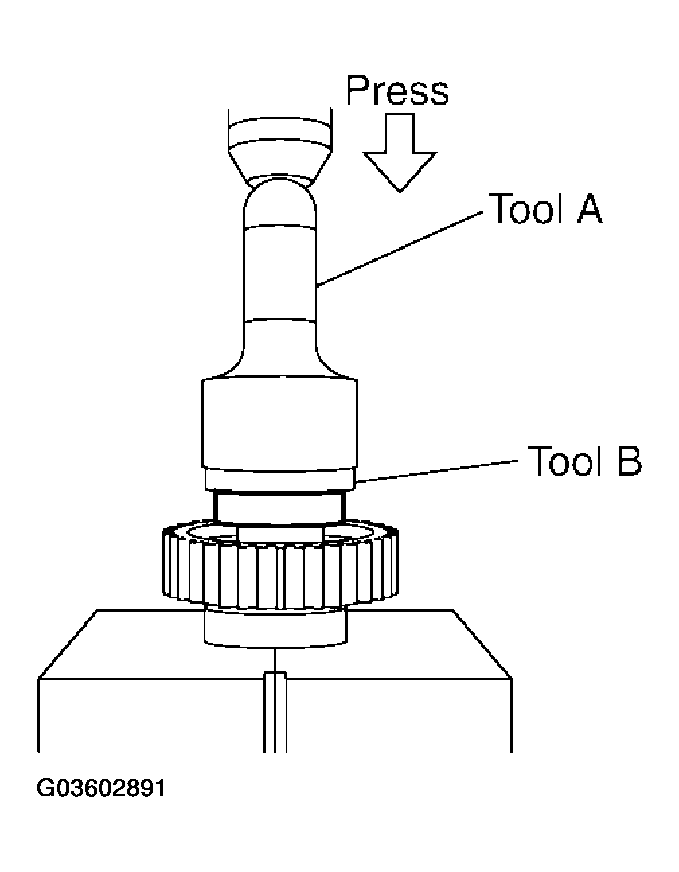

Fig 2: Installing Front Bearing
Courtesy of NISSAN MOTOR CO., U.S.A.
