Disassembly and Assembly: Disassembly

WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front bearing, using Tools.
Tool number A: ST35300000 (-)

B: ST30021000 (J-22912-01)

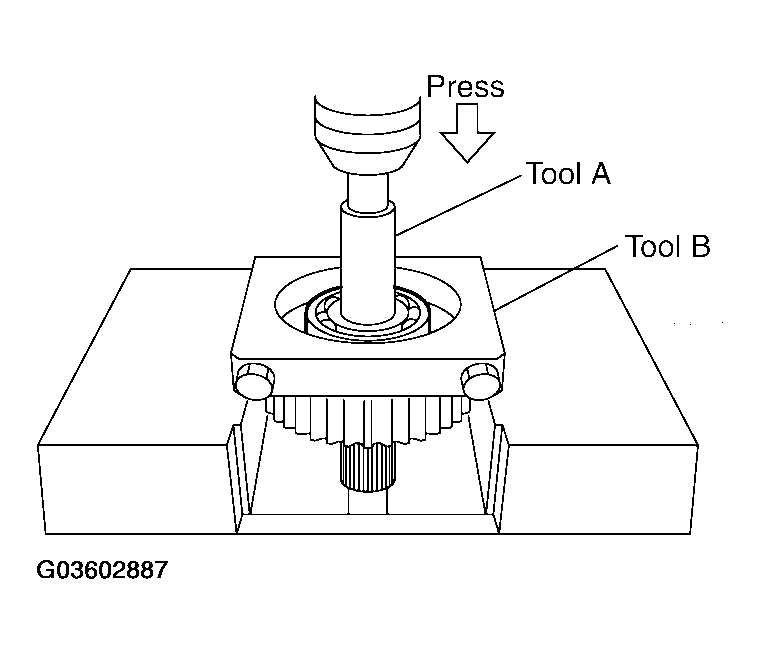

Fig 1: Removing Front Bearing
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the rear bearing, using Tools.
Tool number A: ST33710000 (-)

B: ST30021000 (J-22912-01)

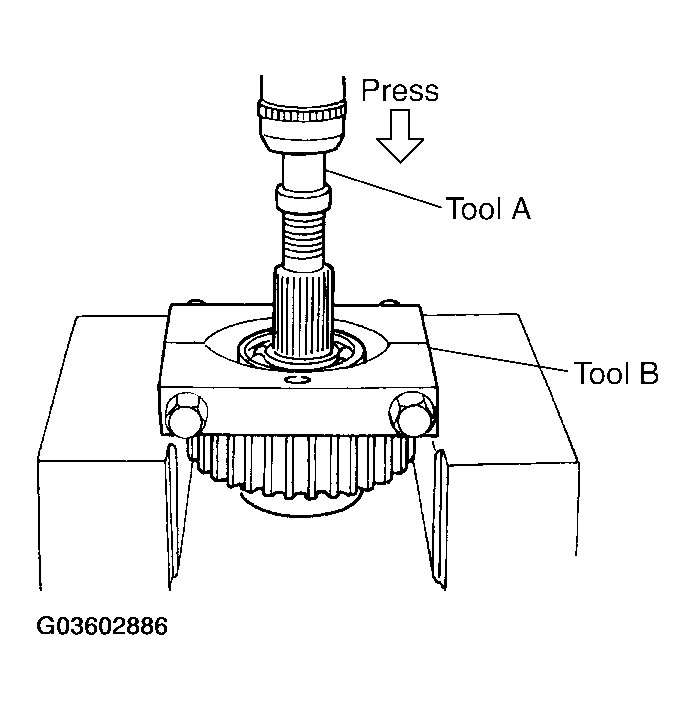

Fig 2: Removing Rear Bearing
Courtesy of NISSAN MOTOR CO., U.S.A.
