Removal and Installation: Removal
WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
- Switch 4WD shift switch to 2WD and set transfer assembly to 2WD.
- Remove the glove box assembly. Refer to "LOWER INSTRUMENT PANEL RH AND GLOVE BOX ".
- Disconnect transfer control unit connectors.

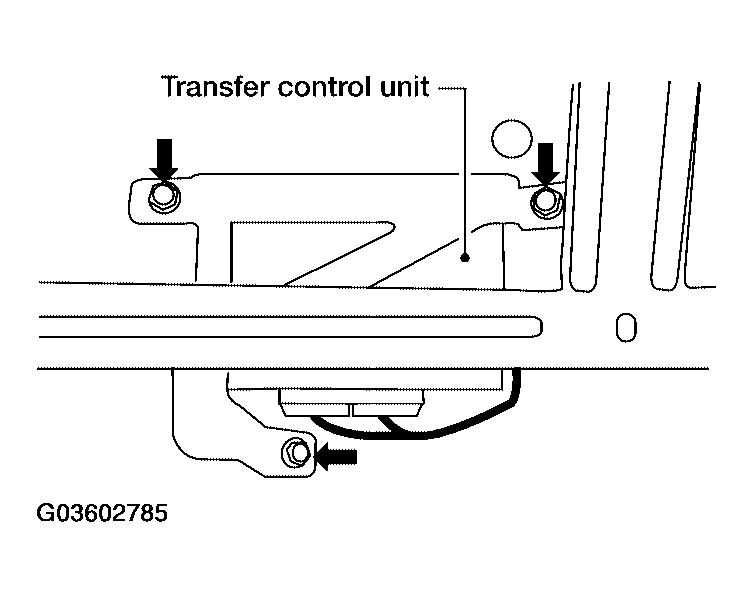

- Remove the transfer control unit.
