Component Inspection
WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
- Turn ignition switch "OFF".
- Disconnect wait detection switch harness connector.
- Remove wait detection switch. Refer to "LOCATION OF ELECTRICAL PARTS ".

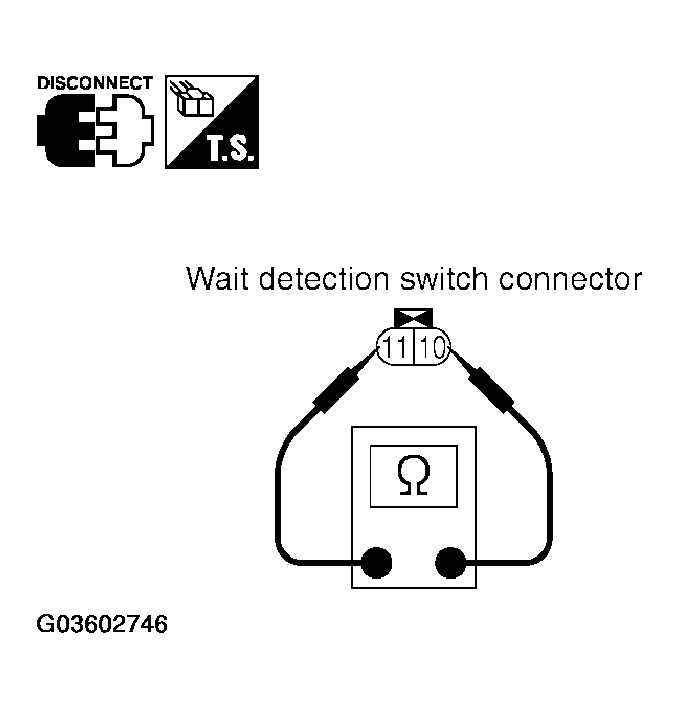

- Push and release wait detection switch and check continuity between wait detection switch terminals 10 and 11.
Courtesy of NISSAN MOTOR CO., U.S.A.
CONTINUITY BETWEEN WAIT DETECTION SWITCH TERMINALS 10 AND 11 REFERENCETerminal Condition Continuity 10 - 11 Push wait detection switch Yes Release wait detection switch No - If NG, replace the wait detection switch. Refer to "LOCATION OF ELECTRICAL PARTS ".
