Combination Meter

WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the lower instrument panel LH. Refer to LOWER INSTRUMENT PANEL LH .
  3. Remove the meter cover.
  4. Remove cluster lid A.
  5. Remove screws using power tool and remove the combination meter assembly.
    • Disconnect electrical connectors.

Installation is in the reverse order of removal.

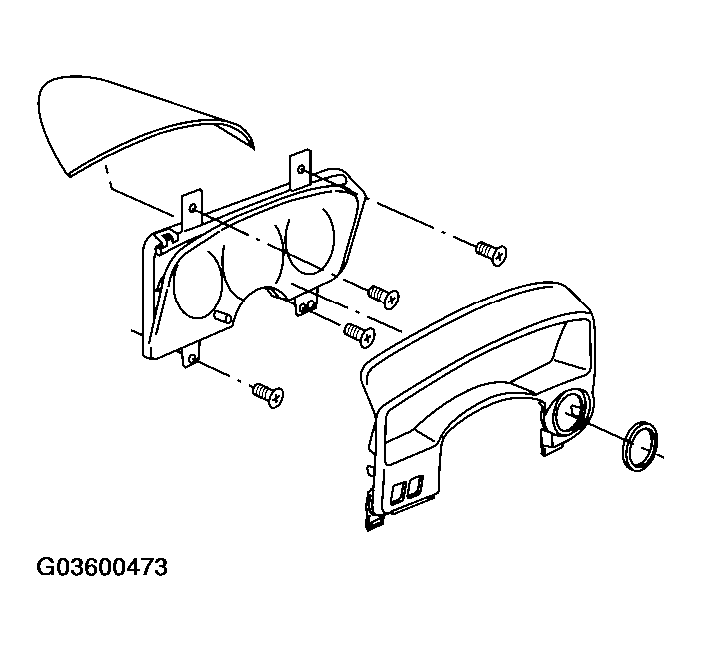

Fig 1: Removing/Installing Combination Meter Assembly
G03600473Courtesy of NISSAN MOTOR CO., U.S.A.
