Disassembly and Assembly: Notes

WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

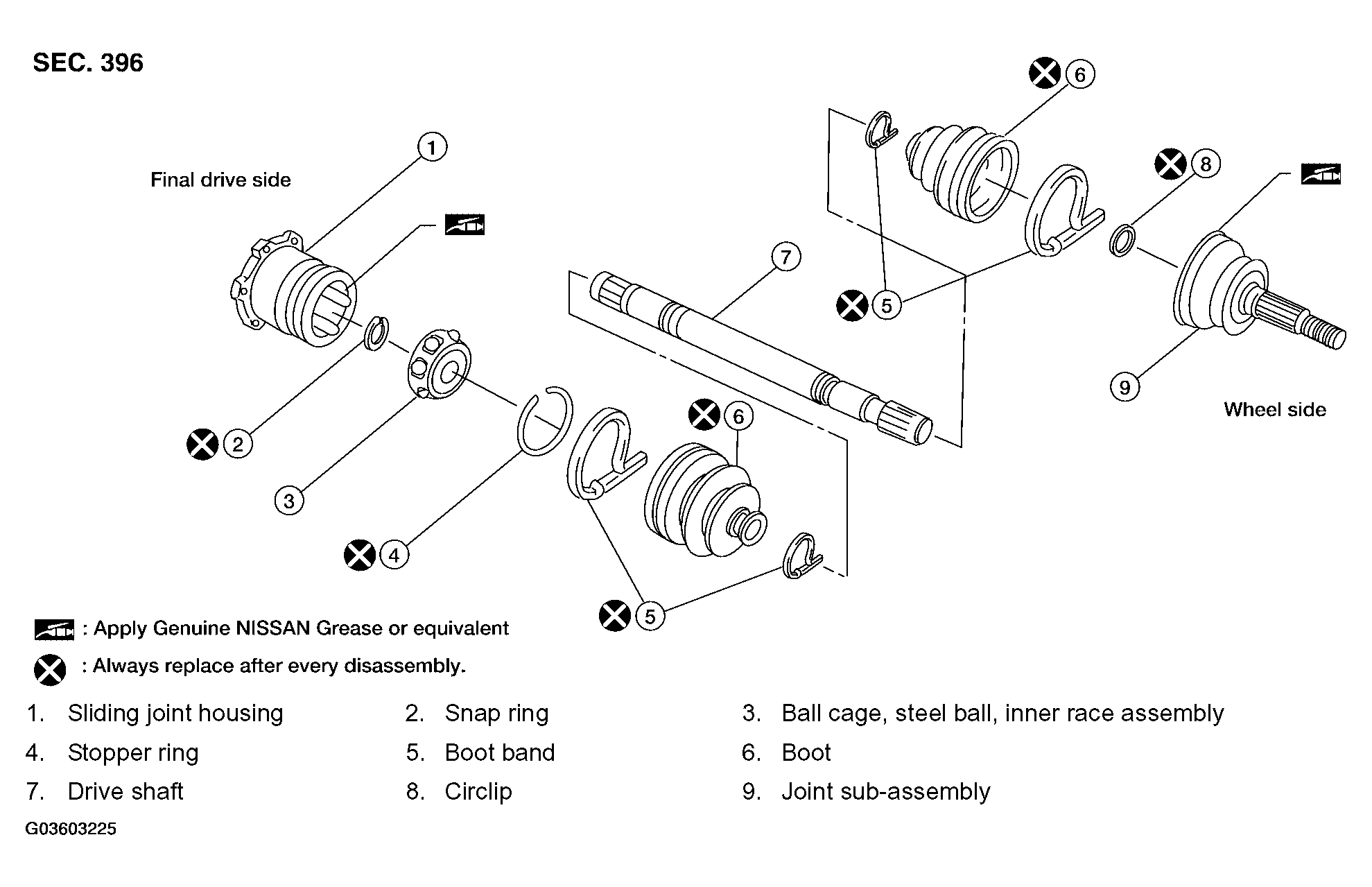

Fig 1: Exploded View Of Drive Shaft, With Torque Specifications
G03603225Courtesy of NISSAN MOTOR CO., U.S.A.
