Removal and Installation of BCM: Removal

WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If possible, before removing BCM, retrieve current BCM configuration to use for reference when configuring new BCM after installation. Refer to CONFIGURATION .

Disconnect negative battery cable.
Remove lower knee bolster. Refer to INSTRUMENT PANEL ASSEMBLY .
Remove screw and release BCM.
Disconnect connectors and then remove BCM.

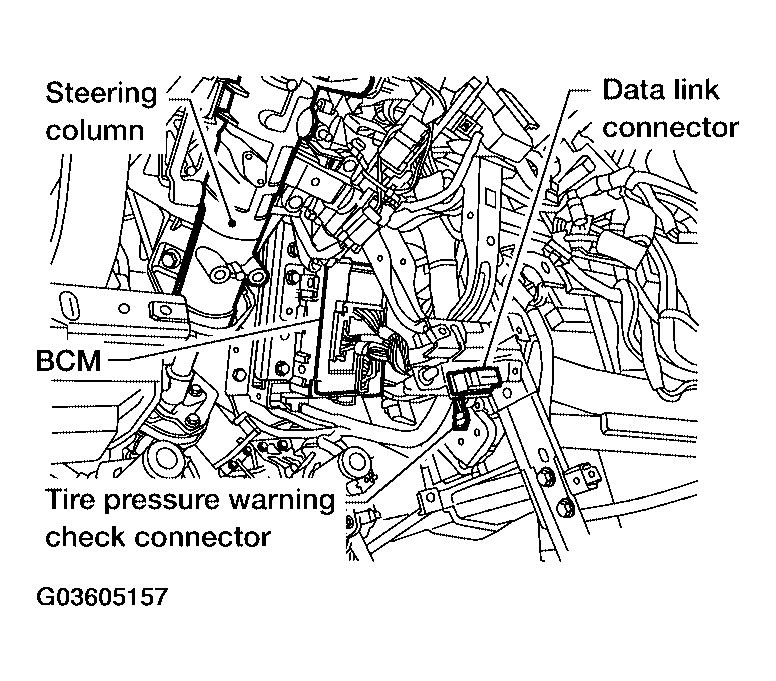

Fig 1: Locating Connectors & Removing BCM
Courtesy of NISSAN MOTOR CO., U.S.A.
