Disassembly and Assembly of Brake Caliper Assembly: Assembly

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Do not use NISSAN Rubber Grease (KRE00 00010, KRE00 00010 01) when assembling.

Apply clean brake fluid to new piston seal and insert seal in to groove on cylinder body.
CAUTION: Do not reuse piston seal.

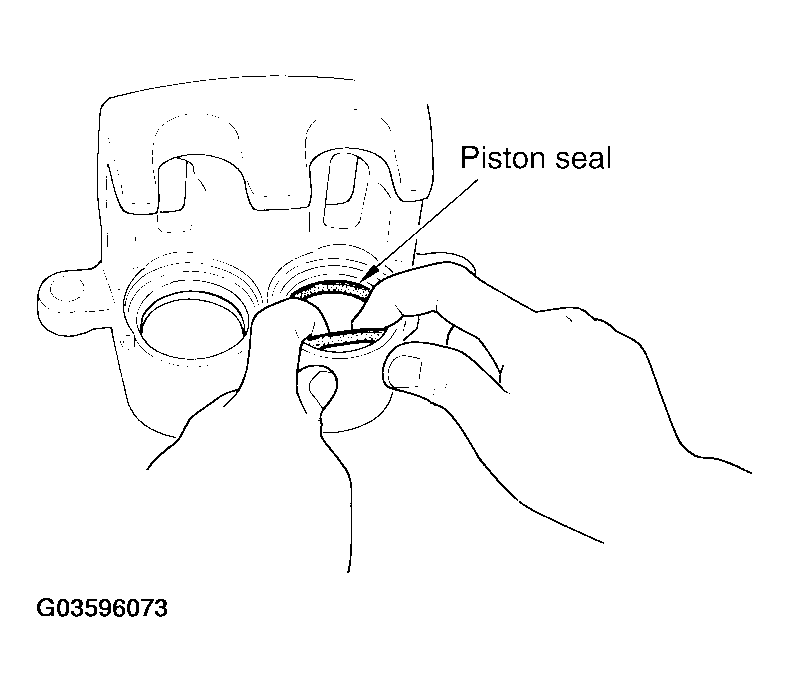

Fig 1: Inserting Seal In To Groove On Cylinder Body
Courtesy of NISSAN MOTOR CO., U.S.A.
Apply clean brake fluid to piston boot. Cover the piston end with piston boot, and then install cylinder side lip on piston boot securely into a groove on cylinder body.
CAUTION: Do not reuse piston boot.

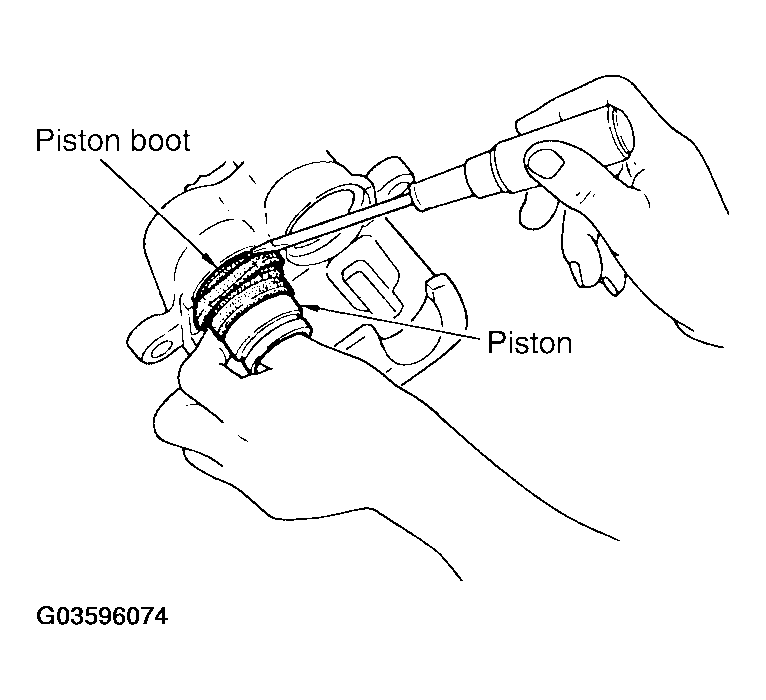

Fig 2: Installing Cylinder Side Lip On Piston Boot Securely Into A Groove On Cylinder Body
Courtesy of NISSAN MOTOR CO., U.S.A.
Apply brake fluid to piston, then install piston into cylinder body and insert piston boot side lip in to groove of piston as shown.
CAUTION: Press the piston evenly to prevent damage to cylinder wall.

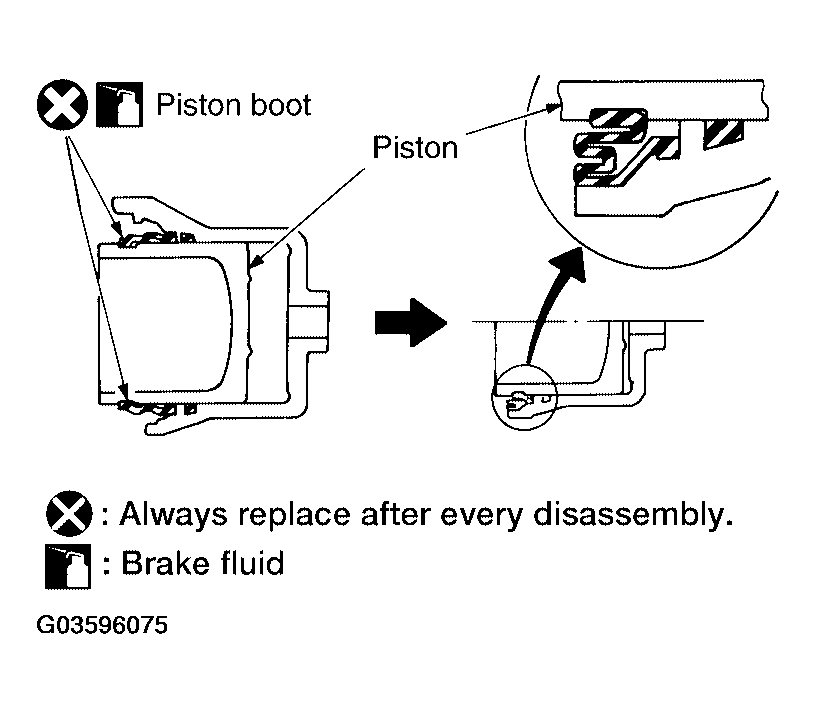

Fig 3: Applying Brake Fluid To Piston
Courtesy of NISSAN MOTOR CO., U.S.A.
Insert into cylinder body by hand and insert piston boot piston-side lip into piston groove.
CAUTION: Press piston evenly and vary the pressing point to prevent cylinder inner wall from being rubbed.
Install sliding pins and sliding pin boots to torque member.
CAUTION: Trailing/upper sliding pin must be replaced at each service.
Install cylinder body. Tighten sliding pin bolt to the specified torque. Refer to "COMPONENTS ".
