Checking Fluid Level

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

Check fluid level, referring to the scale on the reservoir tank.

Use HOT range for fluid temperatures of 50° - 80°C (122° - 176°F).

Use COLD range for fluid temperatures of 0° - 30°C (32° - 86°F).

CAUTION:
  • Do not overfill.
  • Do not reuse any power steering fluid.
  • Recommended fluid is Genuine NISSAN PSF or equivalent. Refer to "RECOMMENDED FLUIDS AND LUBRICANTS ".

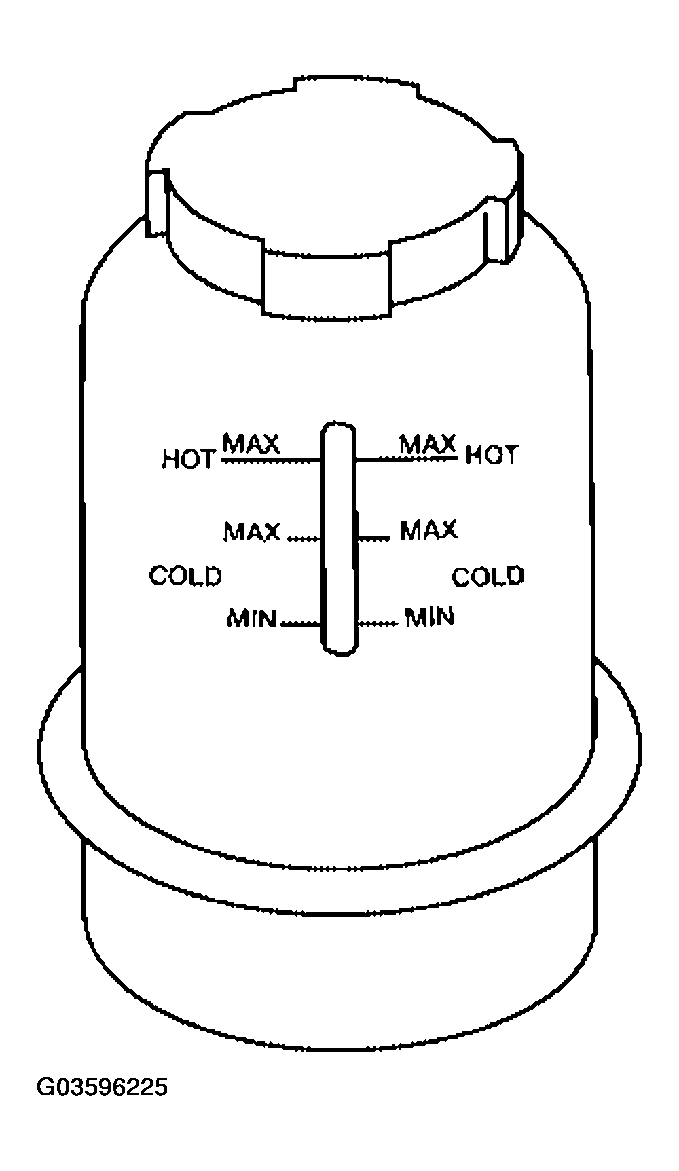

    Fig 1: Checking Fluid Level
    G03596225Courtesy of NISSAN MOTOR CO., U.S.A.
