Removal and Installation: Installation

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

Installation is in the reverse order of removal.

CAUTION: When installing the steering column, finger-tighten all of the lower bracket and joint bolts; then tighten them to specification. Do not apply undue stress to the steering column.

NOTE:

With the wheels in the straight ahead position, align the slit of the lower joint with the projection on the dust cover. Insert the joint until surface "A" contacts surface "B".
After installation, inspect the steering column for proper operation. Refer to "INSPECTION AFTER INSTALLATION ".

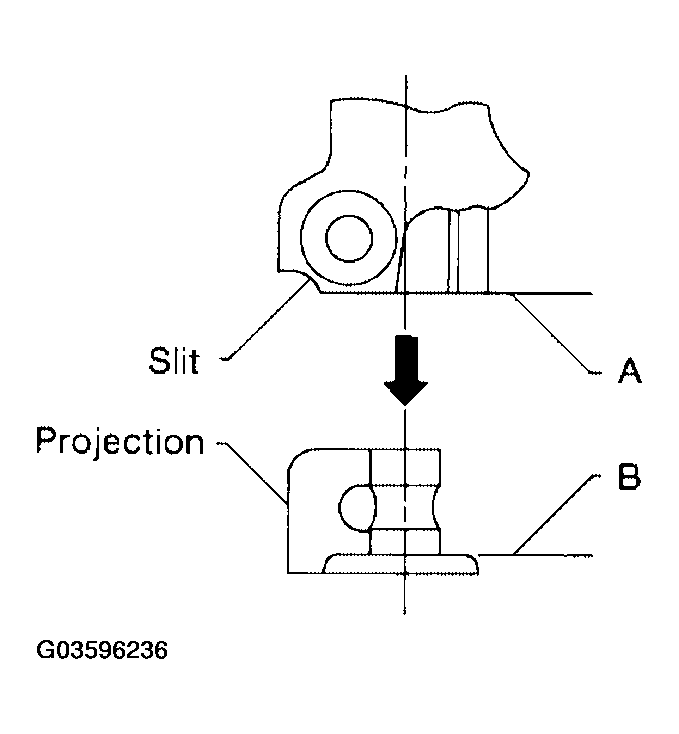

Fig 1: Aligning Slit Of Lower Joint With Projection On Dust Cover
Courtesy of NISSAN MOTOR CO., U.S.A.
