Side Shaft

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain gear oil, if necessary.
  2. Remove side oil seal.
    CAUTION: Be careful not to damage gear carrier.

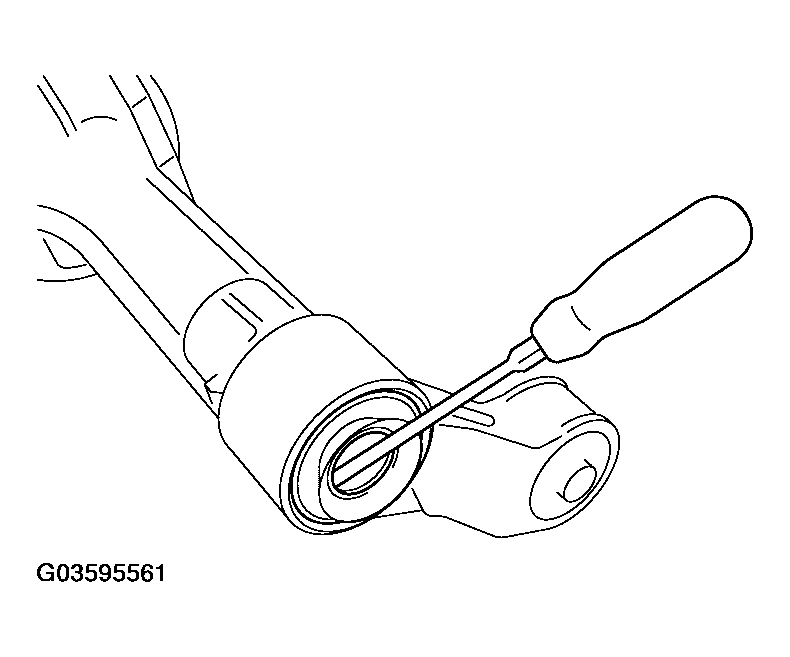

    Fig 1: Removing Side Oil Seal
    G03595561Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove snap ring (hole side).

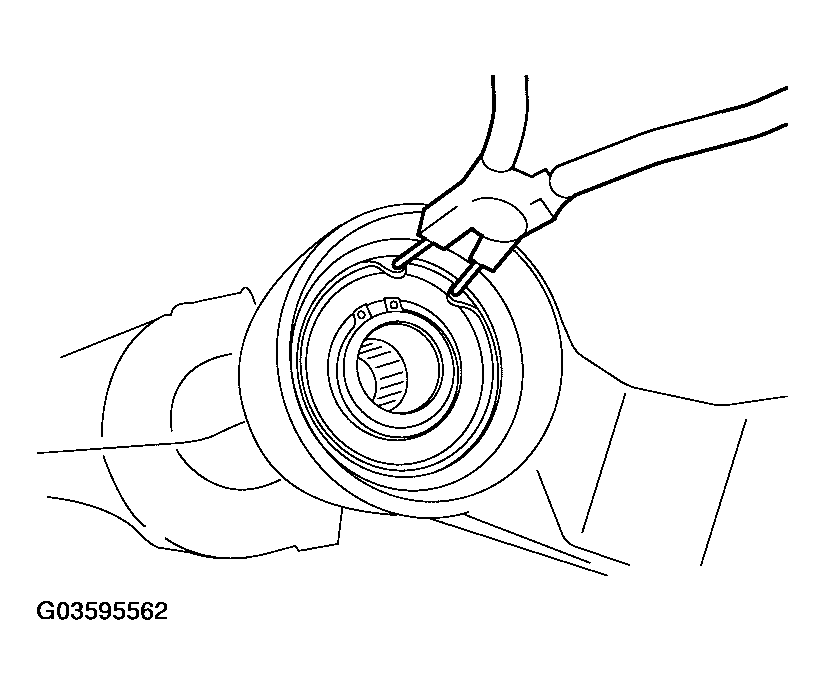

    Fig 2: Removing Snap Ring (Hole Side)
    G03595562Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove side shaft assembly out of gear carrier.
    NOTE: Tap on side shaft assembly from side gear side.
  5. Remove snap ring (shaft side).

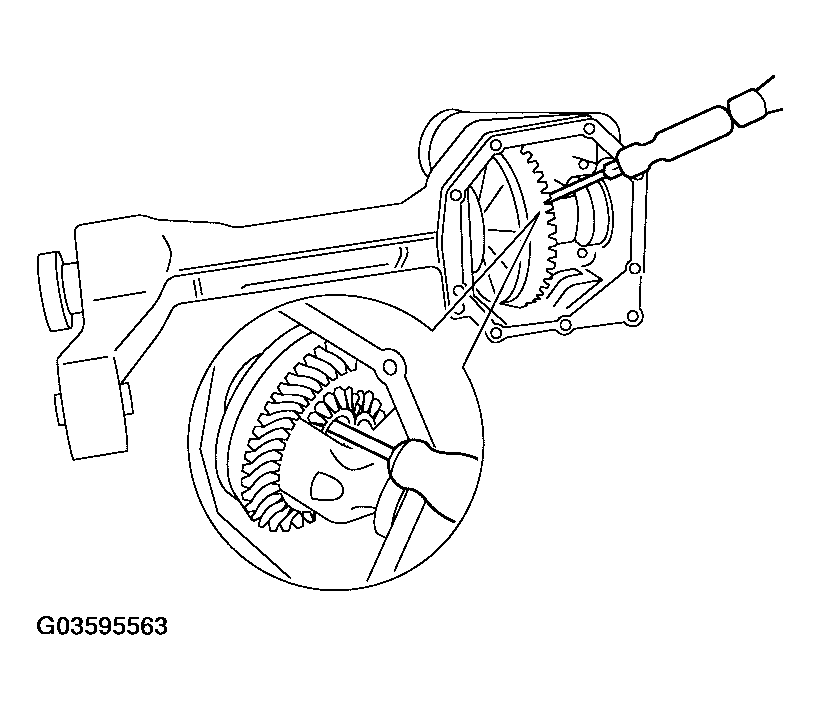

    Fig 3: Removing Snap Ring (Shaft Side)
    G03595563Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Press side shaft out of side shaft bearing.
    CAUTION: Do not drop side shaft.

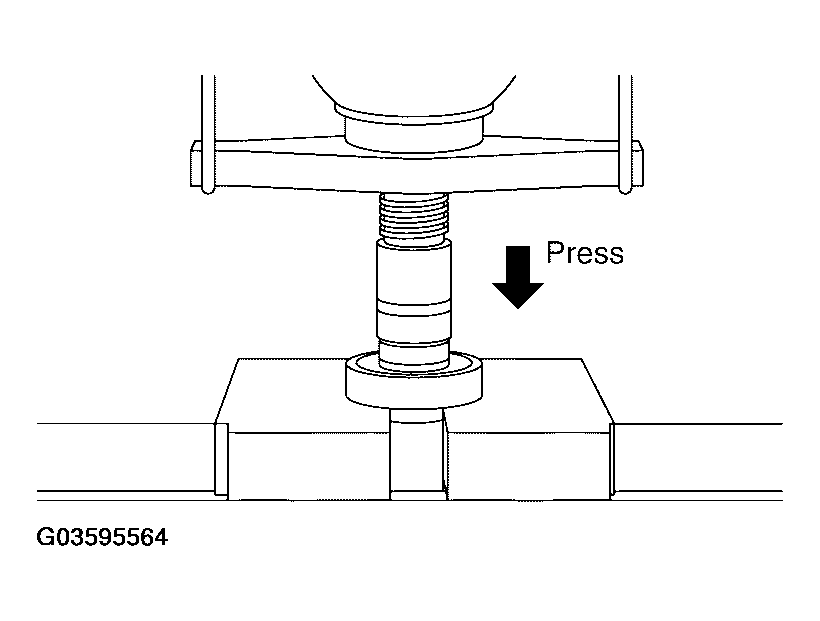

    Fig 4: Pressing Side Shaft Out Of Side Shaft Bearing
    G03595564Courtesy of NISSAN MOTOR CO., U.S.A.
