Consult-II Basic Operation Procedure

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carries out CAN communication.

With the ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to the data link connector, and turn ignition switch ON.

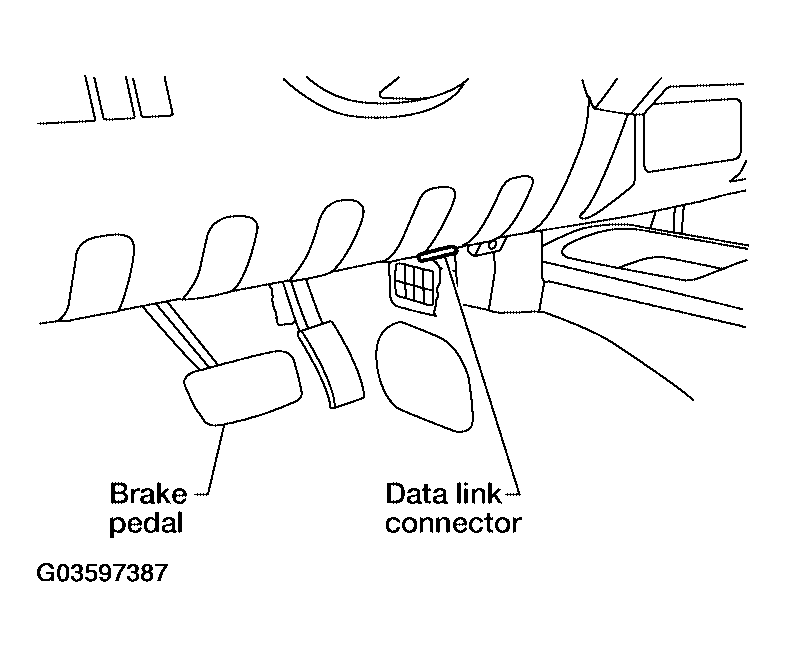

Fig 1: Identifying Data Link Connector Location
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START (NISSAN BASED VHCL)".

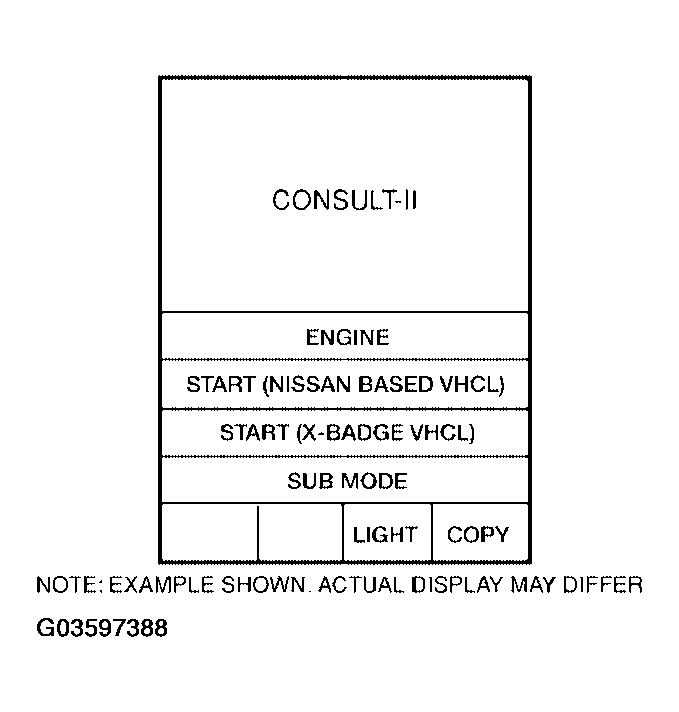

Fig 2: Identifying Scan Tool Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "BCM" on "SELECT SYSTEM" screen. If "BCM" is not indicated, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

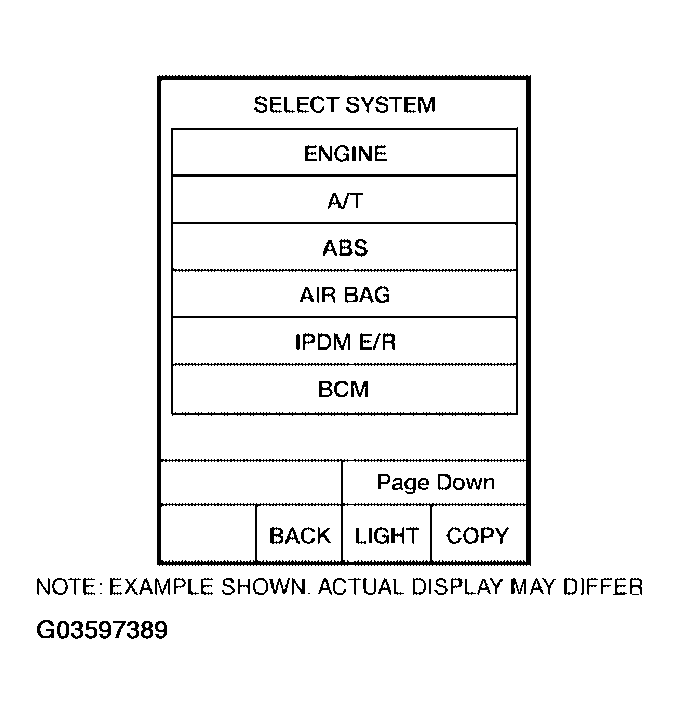

Fig 3: Identifying Scan Tool Display - Select System
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "BUZZER" or "BCM".

Fig 4: Identifying Scan Tool Display - Select Test Item
Courtesy of NISSAN MOTOR CO., U.S.A.
Select "DATA MONITOR" or "SELF-DIAG RESULTS".

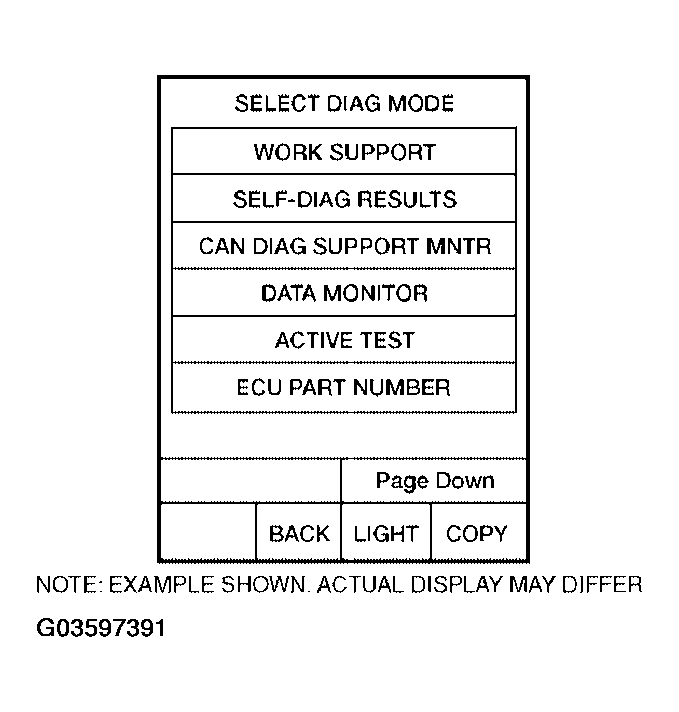

Fig 5: Identifying Scan Tool Display - Self-Diag Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
