Consult-II Operation

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carries out CAN communication.

With the ignition switch OFF, connect CONSULT-II and CONSULT- II CONVERTER to the data link connector, then turn the ignition switch ON.

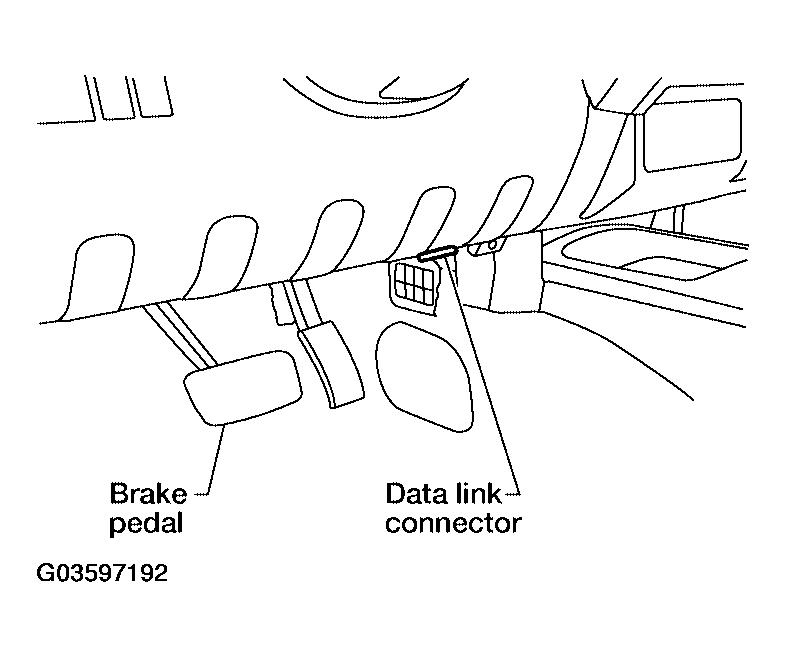

Fig 1: Identifying Data Link Connector Location
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START (NISSAN BASED VHCL)".

Fig 2: CONSULT-II Screen Display - START (NISSAN BASED VHCL)
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "IPDM E/R" on "SELECT SYSTEM" screen.
If "IPDM E/R" is not displayed, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

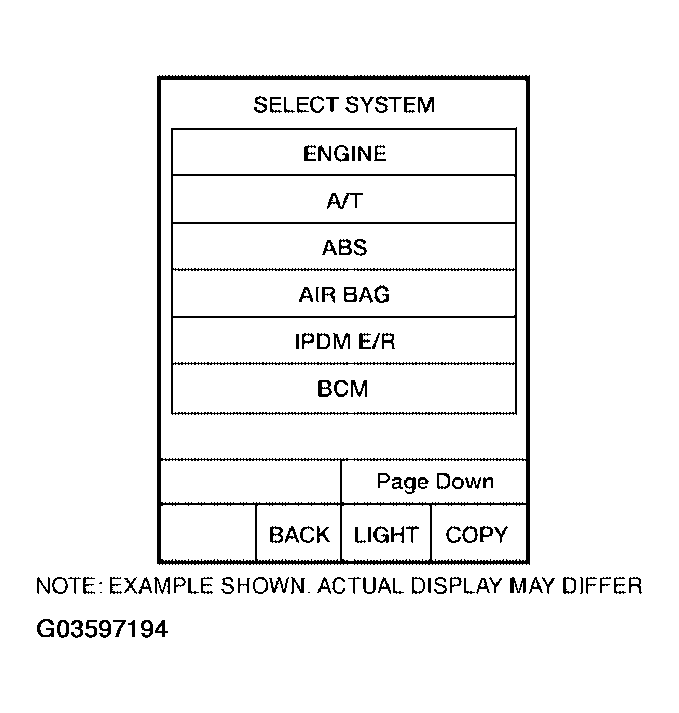

Fig 3: CONSULT-II Screen Display - Select System (IPDM E/R)
Courtesy of NISSAN MOTOR CO., U.S.A.
Select the desired part to be diagnosed on the "SELECT DIAG MODE" screen.

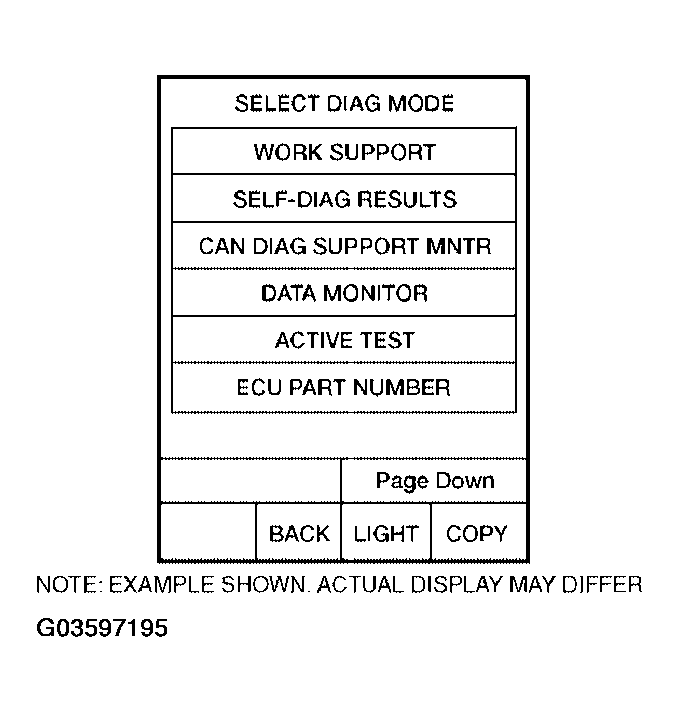

Fig 4: Selecting Diag Mode - Auto Light System
