Assembly (M/T Models)

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

Install clevis pin and shift collar to L-H shift fork after assembling them.
CAUTION: Use caution when installing L-H shift fork, clevis pin or shift collar.
Install clevis pin and shift collar to 2-4 shift bracket after assembling them.
CAUTION: Use caution when installing 2-4 shift bracket.
Install the fork guide collar and 2-4 shift fork spring to the 2-4 shift fork, and then secure it with the retaining ring.
CAUTION:
- Do not reuse retaining ring.
- Be careful with orientation.

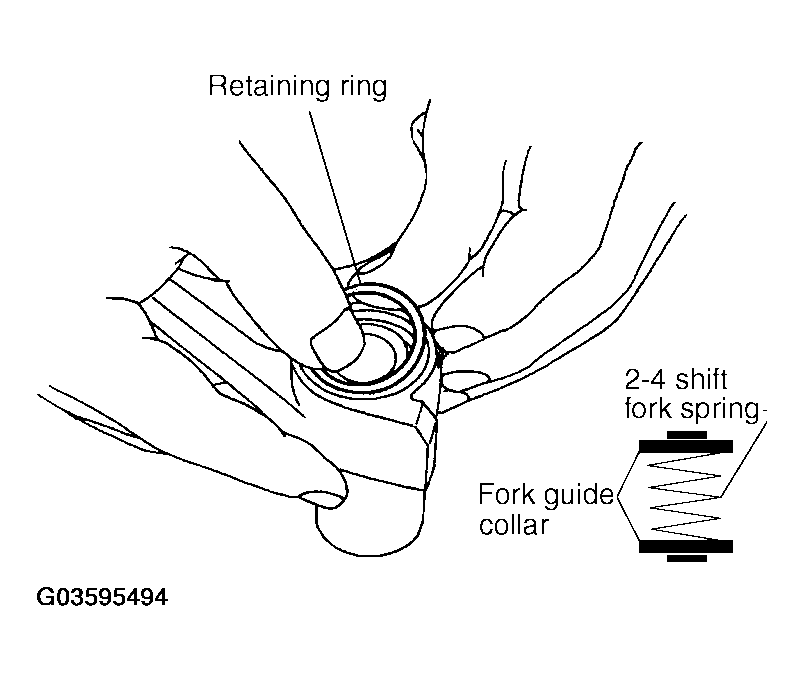

  Fig 1: Installing Fork Guide Collar And 2-4 Shift Fork Spring To 2-4 Shift Fork
  Courtesy of NISSAN MOTOR CO., U.S.A.
