Inspection After Disassembly: Case

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

Check the contact surfaces of the shift rod and bearing for wear and damage. If any is found, replace with a new one.

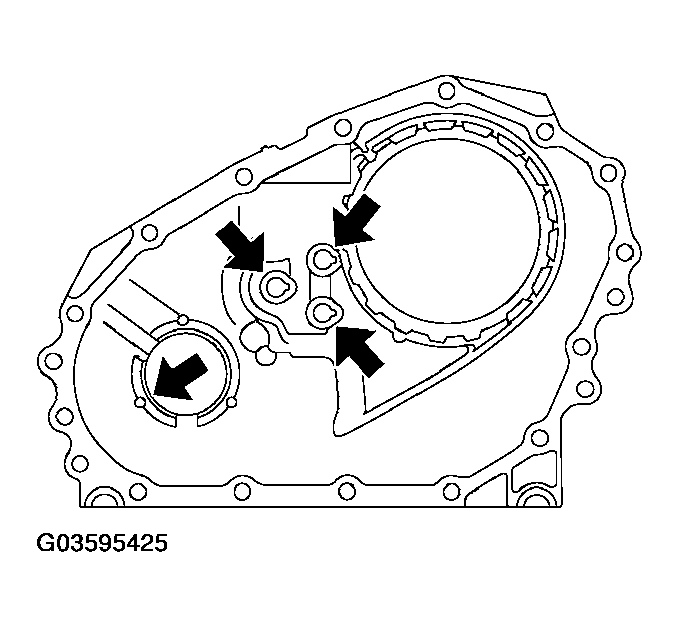

Fig 1: Checking Contact Surfaces Of Shift Rod And Bearing For Wear
G03595425Courtesy of NISSAN MOTOR CO., U.S.A.
