Removal and Installation: Installation

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

Install the O-ring to the transfer control device.
CAUTION:
- Do not reuse O-ring.
- Apply petroleum jelly to O-ring.

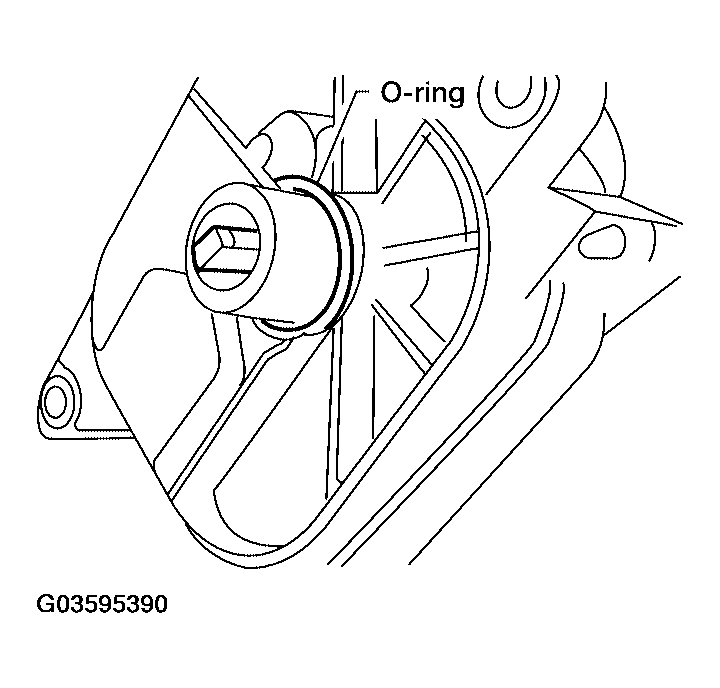

  Fig 1: Identifying Transfer Control Device O-Ring
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install the transfer control device.
1. Turn the control shift rod fully counterclockwise using a flat-bladed screwdriver, and then put a mark on the control shift rod.

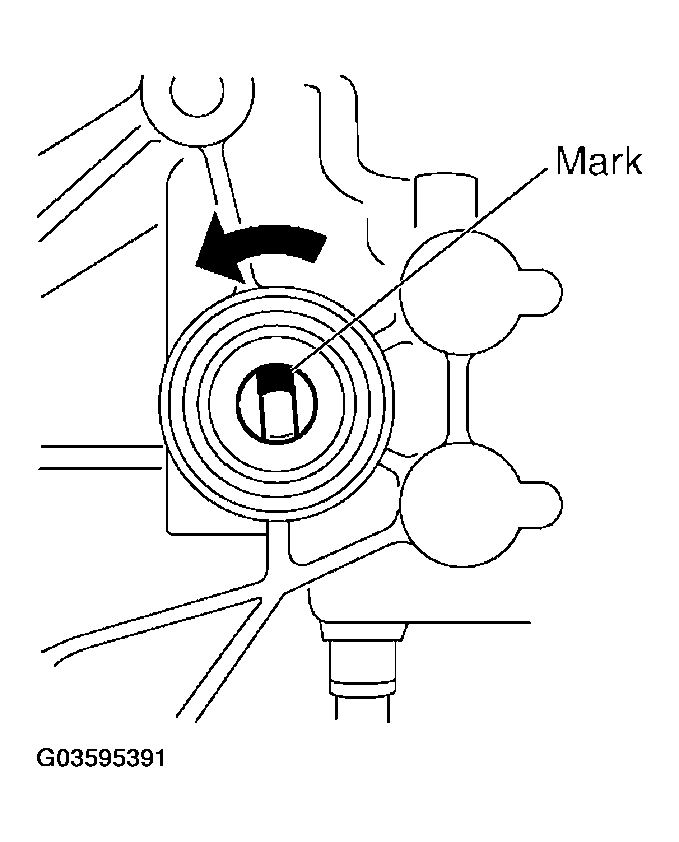

  Fig 2: Identifying Mark On The Control Shift Rod
  Courtesy of NISSAN MOTOR CO., U.S.A.
2. Align the transfer control device shaft cutout with the mark on the control shift rod, and install.
  NOTE: Turn the transfer control device when the transfer control device connection does not match.

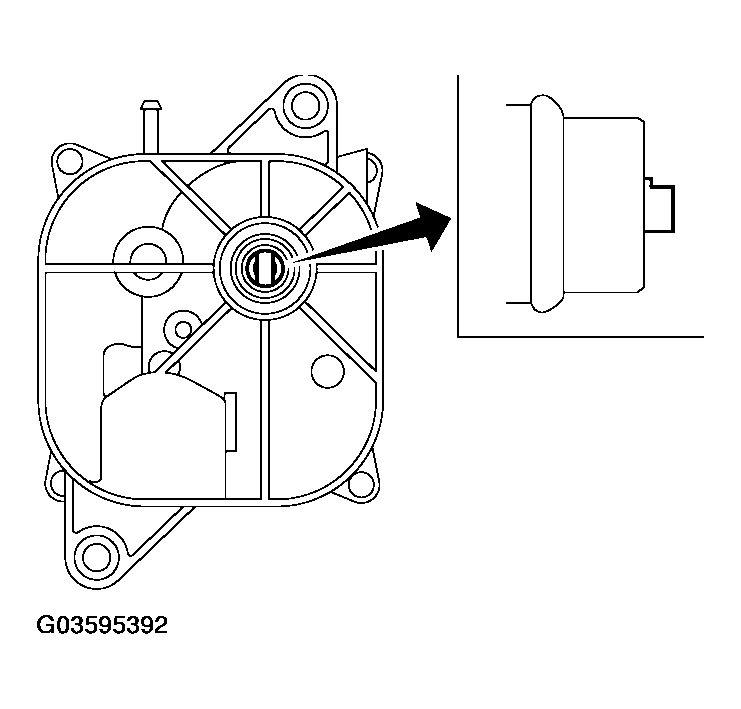

  Fig 3: Aligning The Transfer Control Device Shaft Cutout With The Mark On The Control Shift Rod
  Courtesy of NISSAN MOTOR CO., U.S.A.
3. Tighten the bolts to the specified torque. Refer to "COMPONENTS ".
Install the breather hose to the transfer control device.
Connect the transfer control device connector.
After the installation, check the 4WD shift indicator pattern. If NG, adjust the position between the transfer assembly and transfer control unit. Refer to "PRECAUTIONS FOR TRANSFER ASSEMBLY AND TRANSFER CONTROL UNIT REPLACEMENT ".

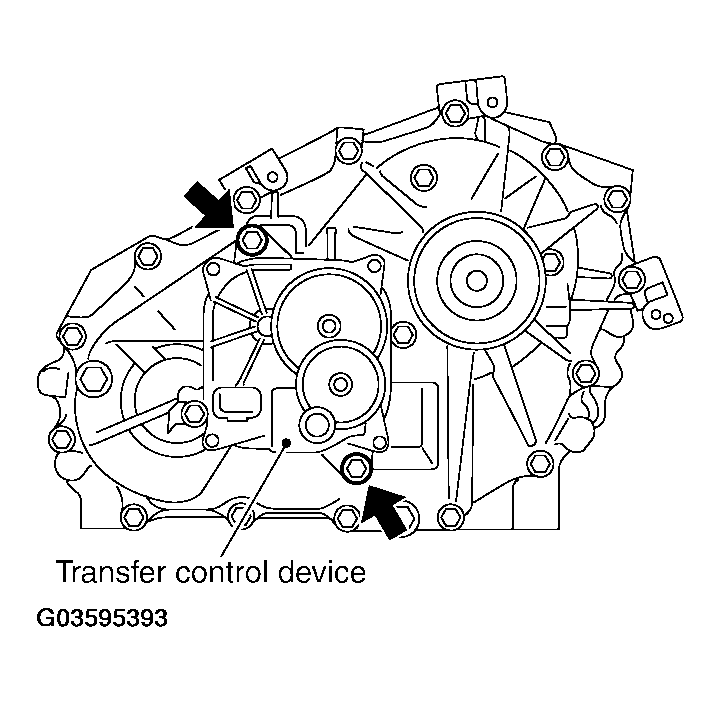

Fig 4: Identifying Transfer Control Device Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
