Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Switch the 4WD shift switch to 2WD and set the transfer assembly to 2WD.
  2. Disconnect the transfer control device connector.
  3. Remove the breather hose from the transfer control device.
  4. Remove the bolts and detach the transfer control device.

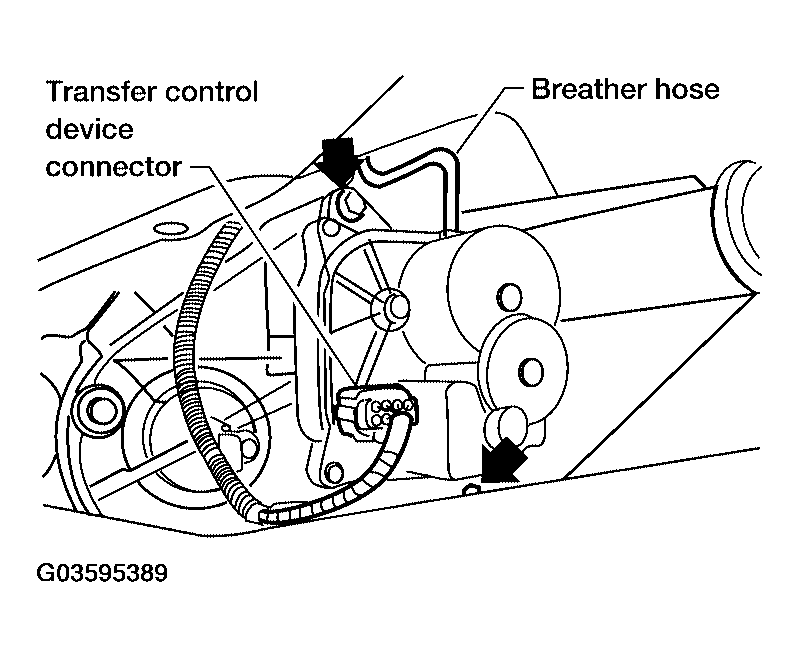

    Fig 1: Detaching Transfer Control Device
    G03595389Courtesy of NISSAN MOTOR CO., U.S.A.
