Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Switch 4WD shift switch to 2WD and set transfer assembly to 2WD.
  2. Turn the ignition switch OFF and disconnect negative battery terminal.
  3. Remove the lower instrument panel LH. Refer to "LOWER INSTRUMENT PANEL LH ".
  4. Disconnect the two transfer control unit connectors.
  5. Remove the transfer control unit bolts.
  6. Remove the transfer control unit.

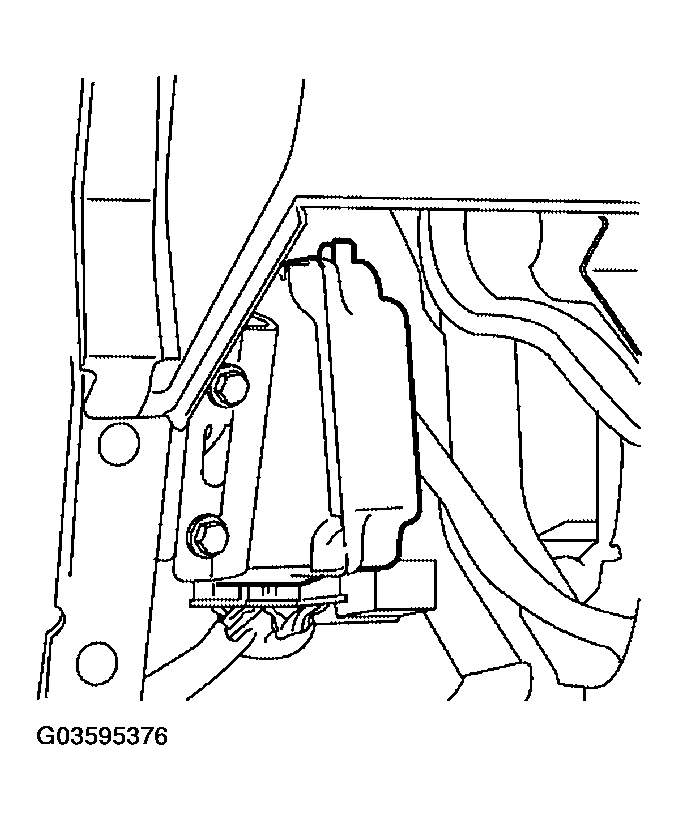

    Fig 1: Identifying Transfer Control Unit
    G03595376Courtesy of NISSAN MOTOR CO., U.S.A.
