Component Inspection

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch "OFF". (Stay for at least 5 seconds.)
Disconnect ATP switch harness connector.
Remove ATP switch. Refer to "LOCATION OF ELECTRICAL PARTS ".

Push and release ATP switch and check continuity between ATP switch terminals 8 and 9.

ATP SWITCH TERMINALS 8 & 9 CONTINUITY SPECIFICATIONS

Terminal	Condition	Continuity
8 - 9	Push ATP switch	Yes
8 - 9	Release ATP switch	No

If NG, replace the ATP switch. Refer to "LOCATION OF ELECTRICAL PARTS ".

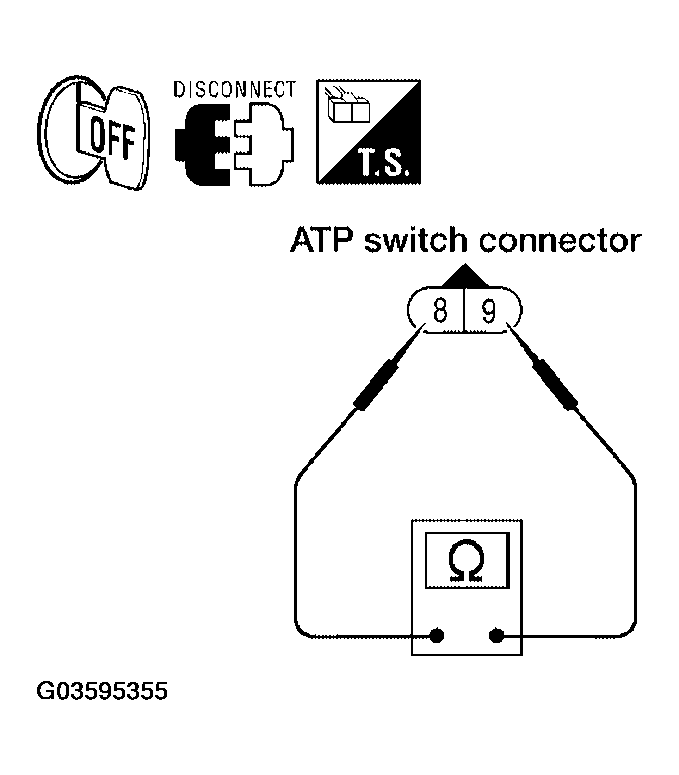

Fig 1: Checking Continuity Between ATP Switch Terminals 8 And 9
Courtesy of NISSAN MOTOR CO., U.S.A.
