Diagnostic Procedure

With CONSULT-II

1. Start engine.
2. Select "DATA MONITOR" mode for "ALL MODE AWD/4WD" with CONSULT-II.
3. Read out the value of "WAIT DETCT SW".
   DIAGNOSTIC PROCEDURE CHART (WITH CONSULT-II)



   Condition		Display value
   Vehicle stopped Engine running For A/T models, A/T selector lever "N" position with brake pedal depressed. For M/T models, M/T shift lever neutral position with clutch and brake pedal depressed.	4WD shift switch: 4H and 4LO	ON
   	4WD shift switch: 2WD	OFF

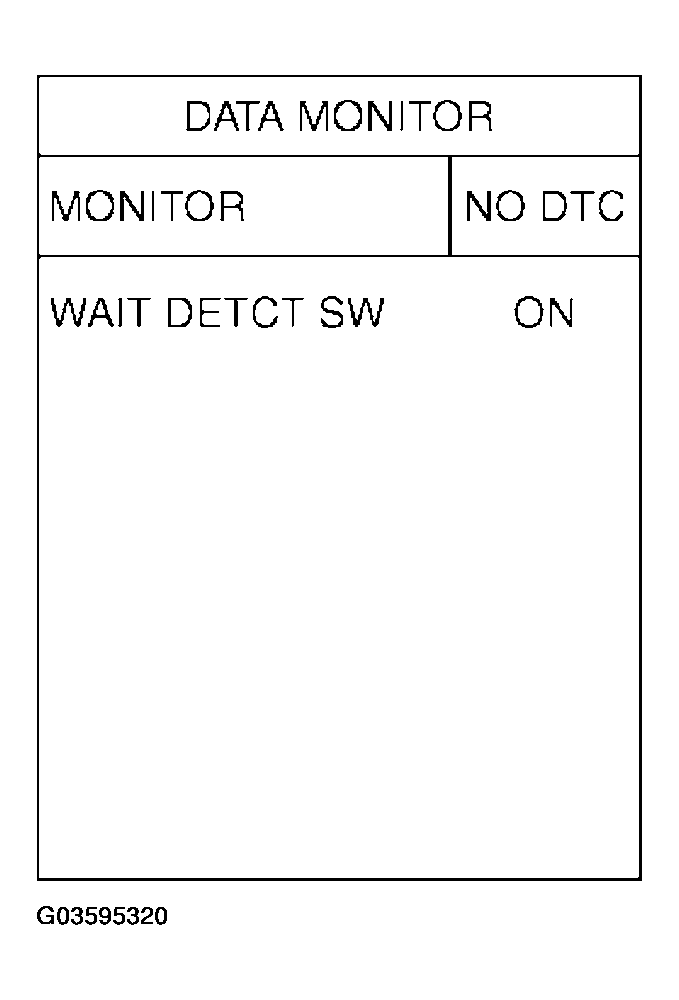

   Fig 1: CONSULT-II Display DATA MONITOR

   Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

1. Start engine.
2. Check voltage between transfer control unit harness connector terminal and ground.
   DIAGNOSTIC PROCEDURE CHART (WITHOUT CONSULT-II)



   Connector	Terminal	Condition		Voltage (Approx.)
   M152	17 - Ground	Vehicle stopped Engine running For A/T models, A/T selector lever "N" position with brake pedal depressed. For M/T models, M/T shift lever neutral position with clutch and brake pedal depressed.	4WD shift switch: 4H and 4LO	0V
   			4WD shift switch: 2WD	Battery voltage

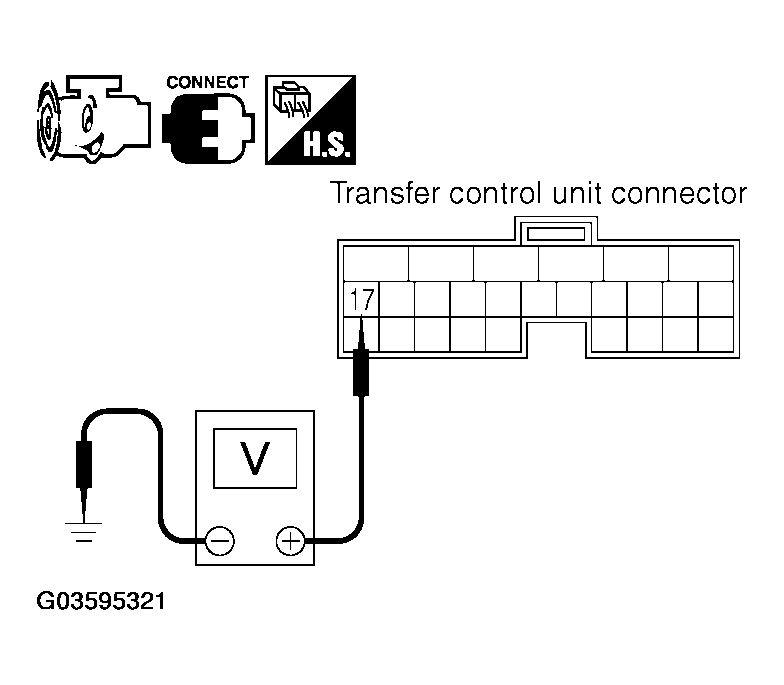

   Fig 2: Checking Voltage Between Transfer Control Unit Harness Connector Terminal And Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: GO TO 5.
2. NG: GO TO 2.

1. Turn ignition switch "OFF". (Stay for at least 5 seconds.)
2. Disconnect transfer control unit harness connector and the wait detection switch harness connector.
3. Check continuity between transfer control unit harness connector M152 terminal 17 and wait detection switch harness connector F59 terminal 10.

   Continuity should exist.

   Also check harness for short to ground and short to power.

OK or NG

1. OK: GO TO 3.
2. NG: Repair or replace damaged parts.

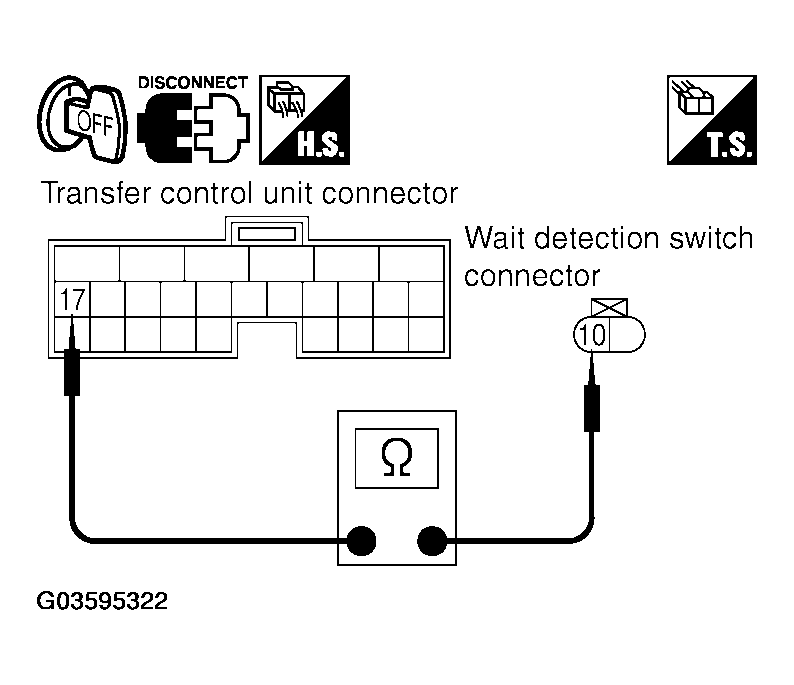

   Fig 3: Checking Continuity Between Transfer Control Unit Harness Connector M152 Terminal 17 And Wait Detection Switch Harness Connector F59 Terminal 10

   Courtesy of NISSAN MOTOR CO., U.S.A.

1. Turn ignition switch "OFF". (Stay for at least 5 seconds.)
2. Disconnect wait detection switch harness connector.
3. Check continuity between wait detection switch harness connector F59 terminal 11 and ground.

   Continuity should exist.

   Also check harness for short to power.

OK or NG

1. OK: GO TO 4.
2. NG: Repair open circuit or short to power in harness or connectors.

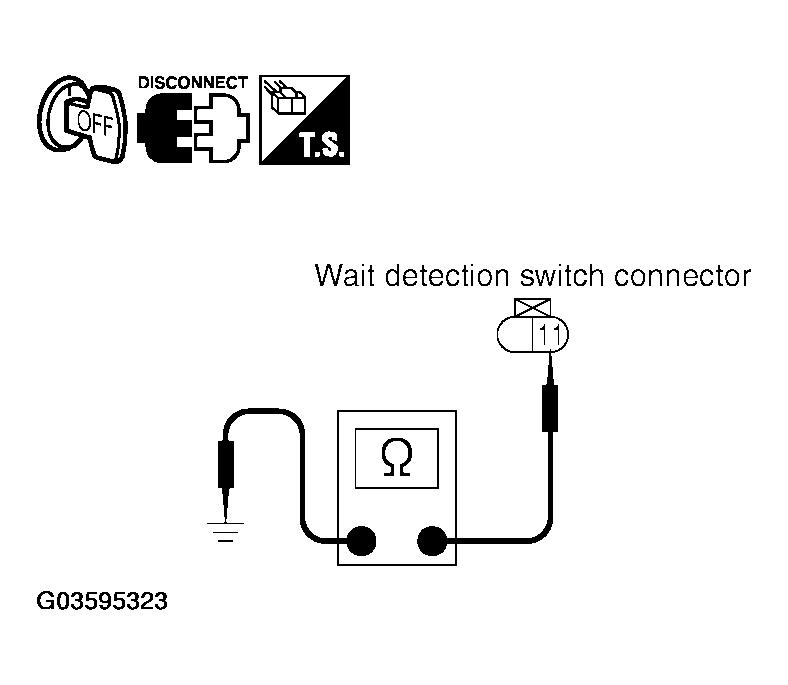

   Fig 4: Checking Continuity Between Wait Detection Switch Harness Connector F59 Terminal 11 And Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.

1. Turn ignition switch "OFF". (Stay for at least 5 seconds.)
2. Disconnect wait detection switch harness connector.
3. Remove wait detection switch. Refer to "LOCATION OF ELECTRICAL PARTS ".
4. Push and release wait detection switch and check continuity between wait detection switch terminals 10 and 11.
   WAIT DETECTION SWITCH TERMINALS 10 & 11 CONTINUITY SPECIFICATIONS



   Terminal	Condition	Continuity
   10 - 11	Push wait detection switch	Yes
   	Release wait detection switch	No

OK or NG

1. OK: GO TO 5.
2. NG: Replace wait detection switch. Refer to "LOCATION OF ELECTRICAL PARTS ".

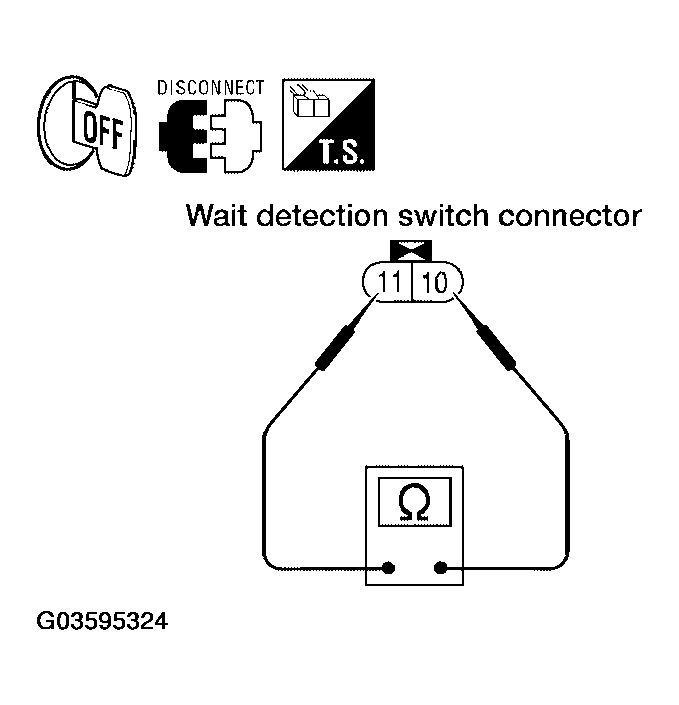

   Fig 5: Checking Continuity Between Wait Detections Switch Terminals 10 And 11

   Courtesy of NISSAN MOTOR CO., U.S.A.

Check transfer control unit input/output signal. Refer to "TRANSFER CONTROL UNIT INPUT/OUTPUT SIGNAL REFERENCE VALUES ".

OK or NG

1. OK: GO TO 6.
2. NG: Check transfer control unit pin terminals for damage or loose connection with harness connector. If any items are damaged, repair or replace damaged parts.

Perform the self-diagnosis, after driving a vehicle for a while.

OK or NG

1. OK: Inspection End.
2. NG: Replace transfer control unit. Refer to "REMOVAL AND INSTALLATION ".
