Removal and Installation: Installation

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

Installation is in the reverse order of removal.

Use new bolts when installing the wheel hub and bearing assembly.
When installing disc rotor on wheel hub and bearing assembly, position the disc rotor according to alignment mark. (When not using the alignment mark, refer to "REMOVAL AND INSTALLATION OF BRAKE CALIPER ASSEMBLY AND DISC ROTOR ".)
When installing wheel and tire, refer to "ROTATION ".

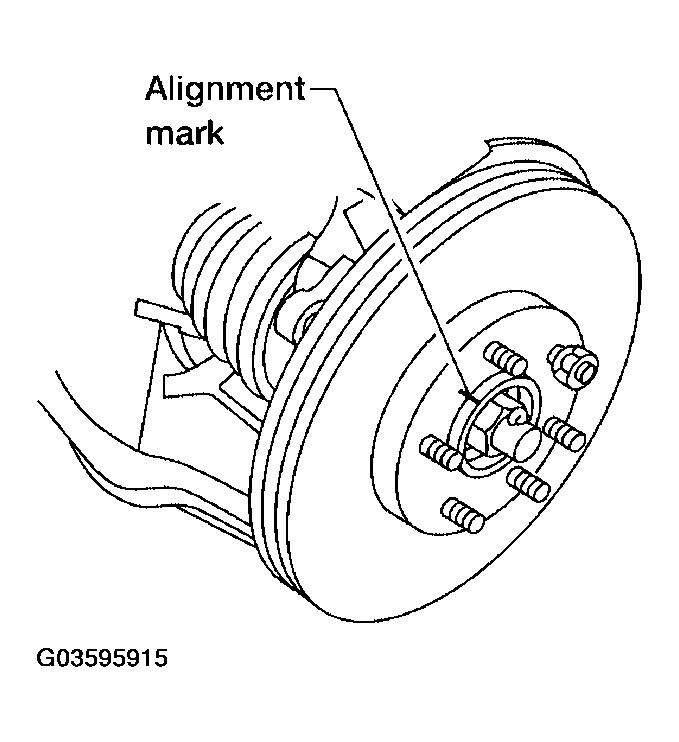

Fig 1: Identifying Alignment Mark On Disc Rotor
Courtesy of NISSAN MOTOR CO., U.S.A.
