Removal and Installation of BCM: Removal

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If possible, before removing BCM, retrieve current BCM configuration to use for reference when configuring brand-new BCM after installation. Refer to "CONFIGURATION ".

Disconnect negative battery cable.
Remove lower knee protector. Refer to "LOWER INSTRUMENT PANEL LH ".
Remove screws and release BCM.
Disconnect connectors and then remove BCM.

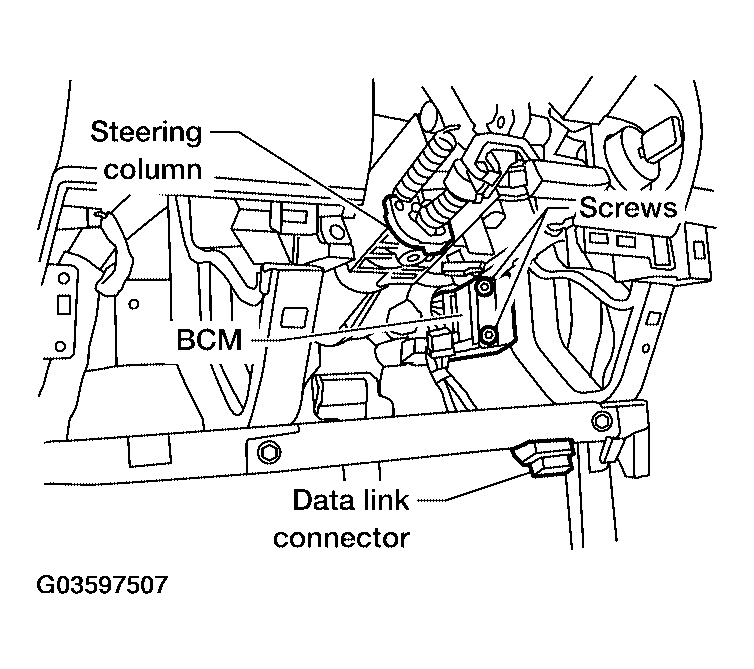

Fig 1: Disconnecting BCM Connectors
Courtesy of NISSAN MOTOR CO., U.S.A.
