Component Locations

WARNING: This page is about a different car, the 2003 Nissan Pathfinder and 2002 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
COMPONENT LOCATIONS

Component Location
Defogger Negative Connector Top Right Of Rear Window, See Fig 1
Defogger Positive Connector Top Left Of Rear Window, See Fig 2
Defogger Relay In Fuse Box No. 1, See Fig 3
Defogger Switch 2002 Model (2003 Model With Auto A/C Without NAVI) Left Side Of Instrument Panel, Under Hazard Switch, See Fig 4
Defogger Switch 2003 Model (With Auto A/C & NAVI & With Manual A/C) In Center Console, Next To Temperature Control Knob, See Fig 5
Fuse Block (J/B) Behind Left Side Of Dash, See Fig 6
Fuse & Fusible Link Box Under Hood, In Front Of Right Strut Pillar, See Fig 7
Smart Entrance Control Unit Behind Left Side Of Dash, See Fig 8

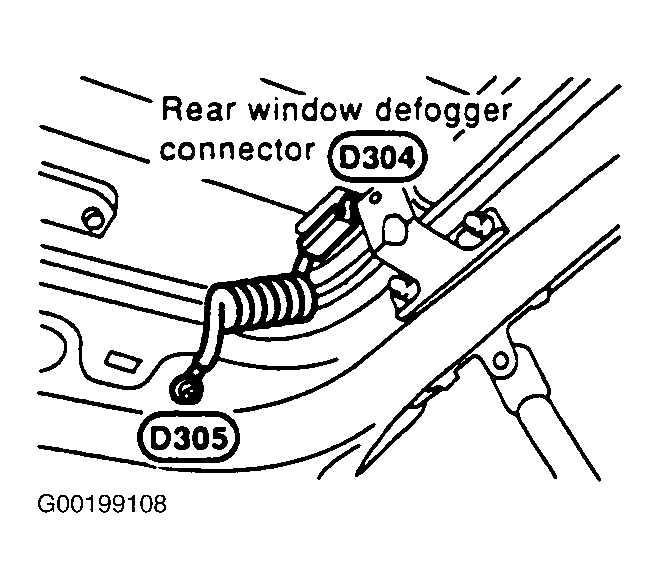

Fig 1: Locating Defogger Negative Connector
G00199108Courtesy of NISSAN MOTOR CO., U.S.A.

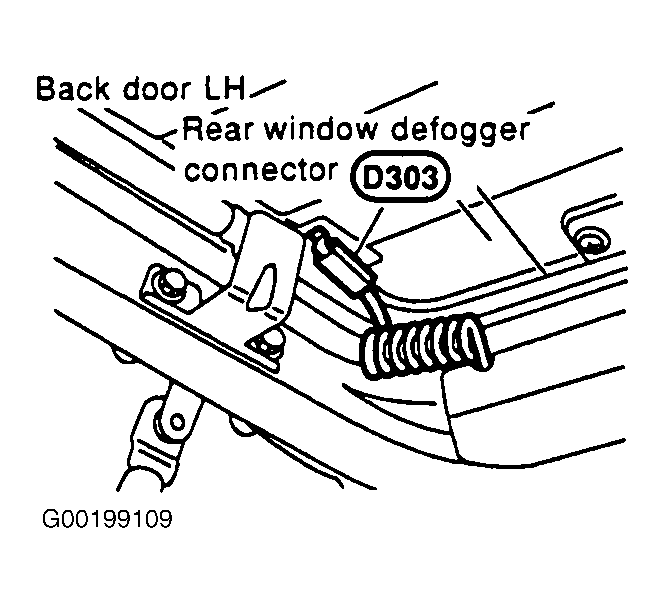

Fig 2: Locating Defogger Positive Connector
G00199109Courtesy of NISSAN MOTOR CO., U.S.A.

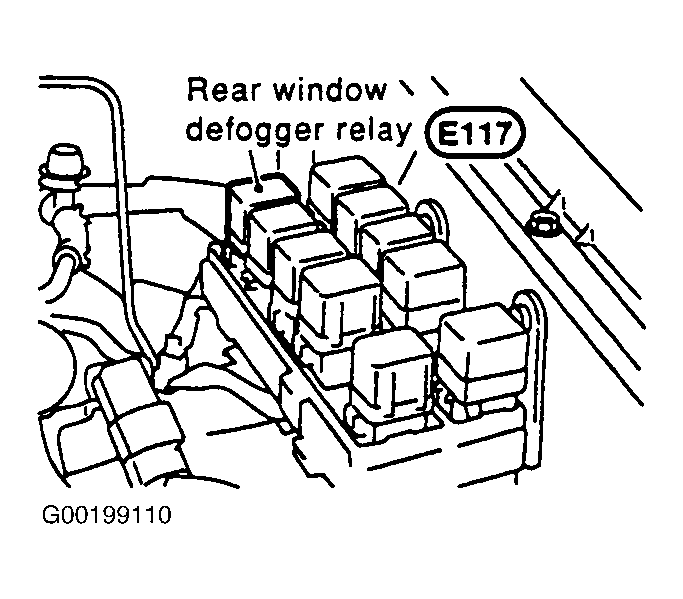

Fig 3: Locating Defogger Relay
G00199110Courtesy of NISSAN MOTOR CO., U.S.A.

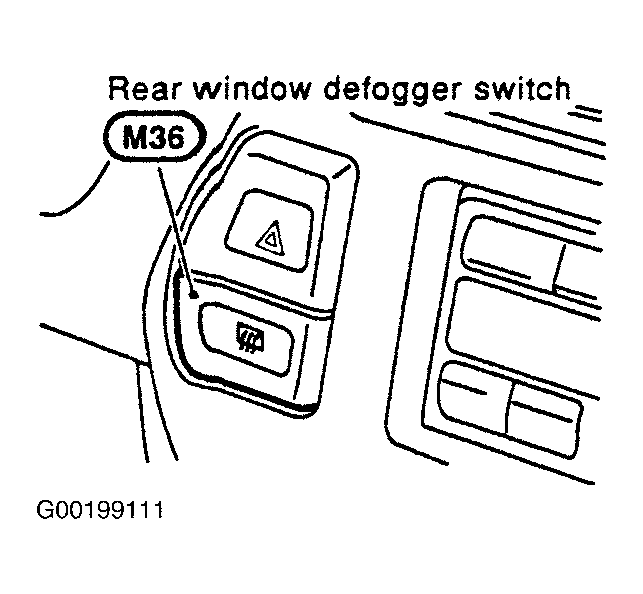

Fig 4: Locating Defogger Switch
G00199111Courtesy of NISSAN MOTOR CO., U.S.A.

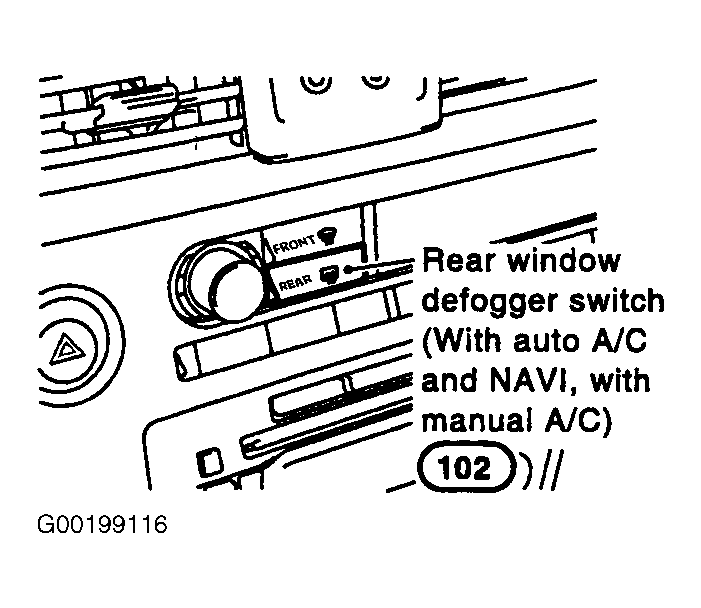

Fig 5: Locating Defogger Switch With Auto A/C & NAVI
G00199116Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 6: Identifying Fuse Block (J/B) Fuse Locations
G00199112Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 7: Identifying Fuse & Fusible Link Box Fuse & Fusible Link Locations
G00199113Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 8: Locating Smart Entrance Control Unit
G00199114Courtesy of NISSAN MOTOR CO., U.S.A.
