4. Check Combination Meter Circuit

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Check indication of each meter/gauge in self-diagnosis mode.

OK or NG

OK >> GO to Symptom Chart 1 .

NG >> Replace the combination meter. Refer to Removal and Installation of Combination Meter .

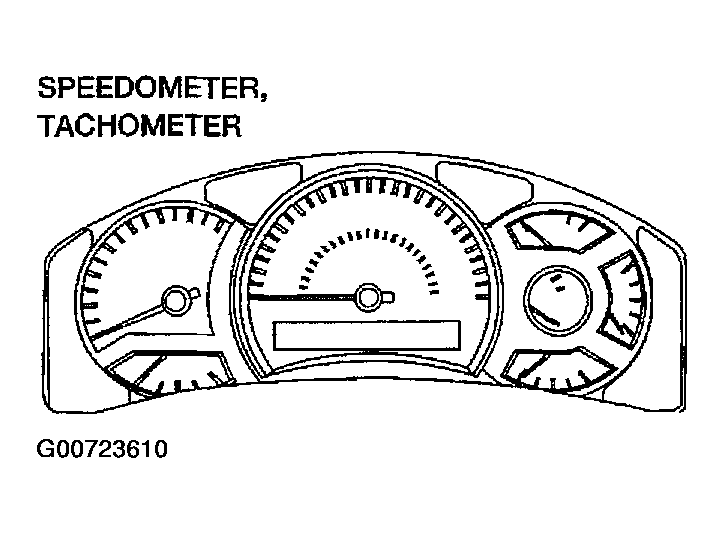

Fig 1: Speedometer & Tachometer Display
G00723610Courtesy of NISSAN MOTOR CO., U.S.A.
