2. Check Oil Pressure Sensor Signal
WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
- Turn ignition switch OFF.
- Disconnect oil pressure sensor connector F4.
- Turn ignition switch ON.

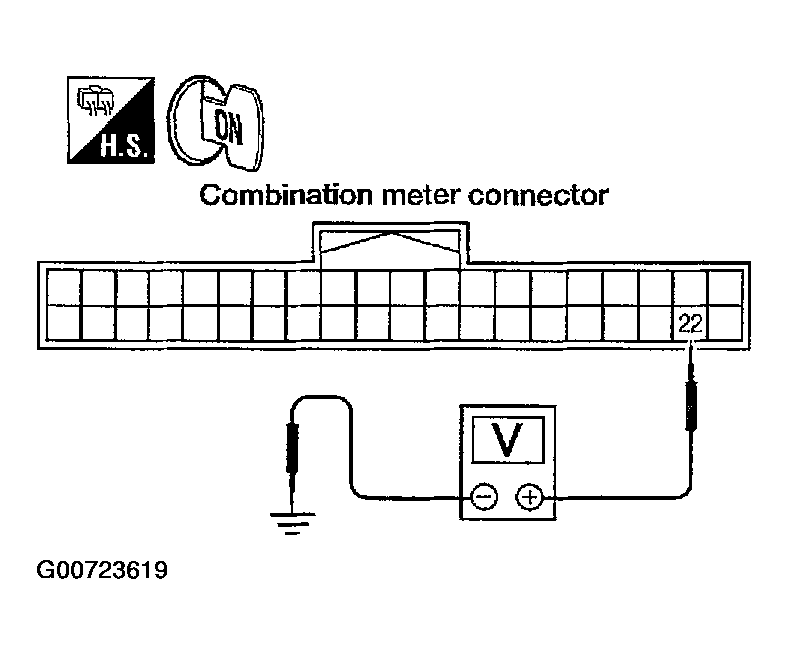

- Check voltage between combination meter harness connector M24 terminal 22 (GR/L) and ground.
- Voltage : Approx. 5V
OK or NG
OK >> GO TO 3.
NG >> Replace combination meter.
