Entering Diagnostics Mode

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch ON. Rear sonar system OFF switch indicator lamp illuminates for three seconds and then turns off.
  2. Immediately push rear sonar system OFF switch ten times within five seconds.
  3. The sonar buzzer will sound once and the rear sonar system OFF indicator will flash once.

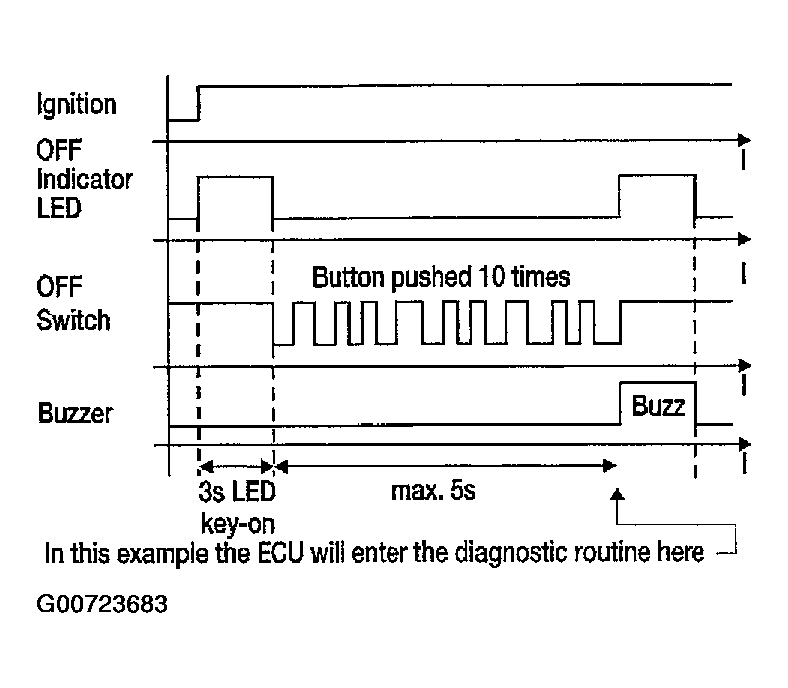

Fig 1: Reading Diagnostic Mode LED Flashes
G00723683Courtesy of NISSAN MOTOR CO., U.S.A.
