4. Check Key Switch
WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
- Turn ignition switch OFF.
- Disconnect key switch and key lock solenoid connector (floor shift) or key switch connector (column shift).

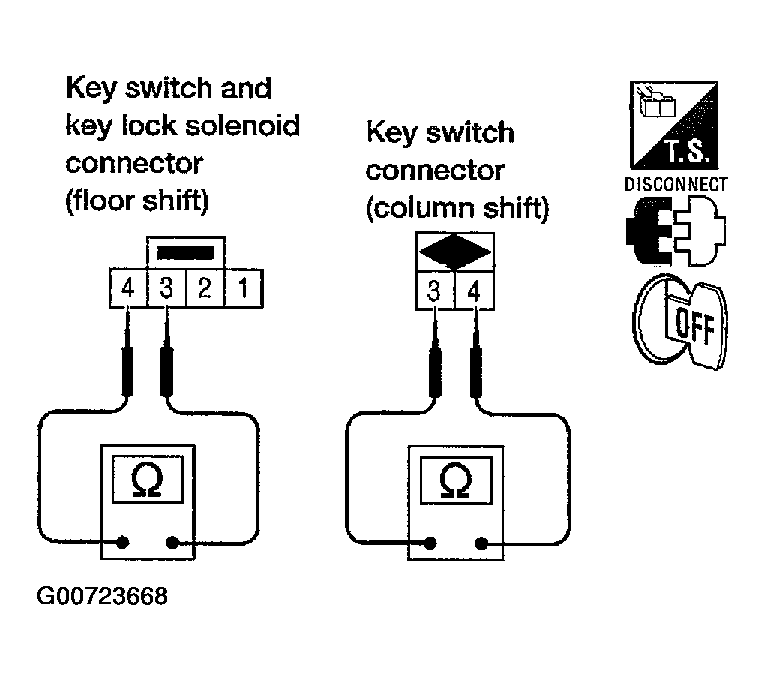

- Check continuity between key switch and key lock solenoid harness connector M27 (floor shift) or key switch harness connector M80 (column shift) terminals 3 and 4.
- When key is inserted in ignition key cylinder : Continuity should exist
- When key is removed from ignition key cylinder : Continuity should not exist
OK or NG
OK >> GO TO 5.
NG >> Replace the key switch and key lock solenoid connector (floor shift) or key switch connector (column shift).
