Component Locations

WARNING: This page is about a different car, the 2003 Nissan Pathfinder and 2002 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
COMPONENT LOCATIONS (PATHFINDER)

Component Location
Body Grounds M4, M66, M77, M111 & M147 Behind Dash, See Fig 1
Fuse Block (J/B) Behind Left Side Of Dash, See Fig 2
Fuse & Fusible Link Box Under Hood, In Front Of Right Strut Pillar, See Fig 3
Power Window Main Switch On Left Front Door Arm Rest, See Fig 4
Power Window Relay Behind Left Side Of Dash, See Fig 5
Smart Entrance Control Unit Behind Left Side Of Dash, See Fig 6

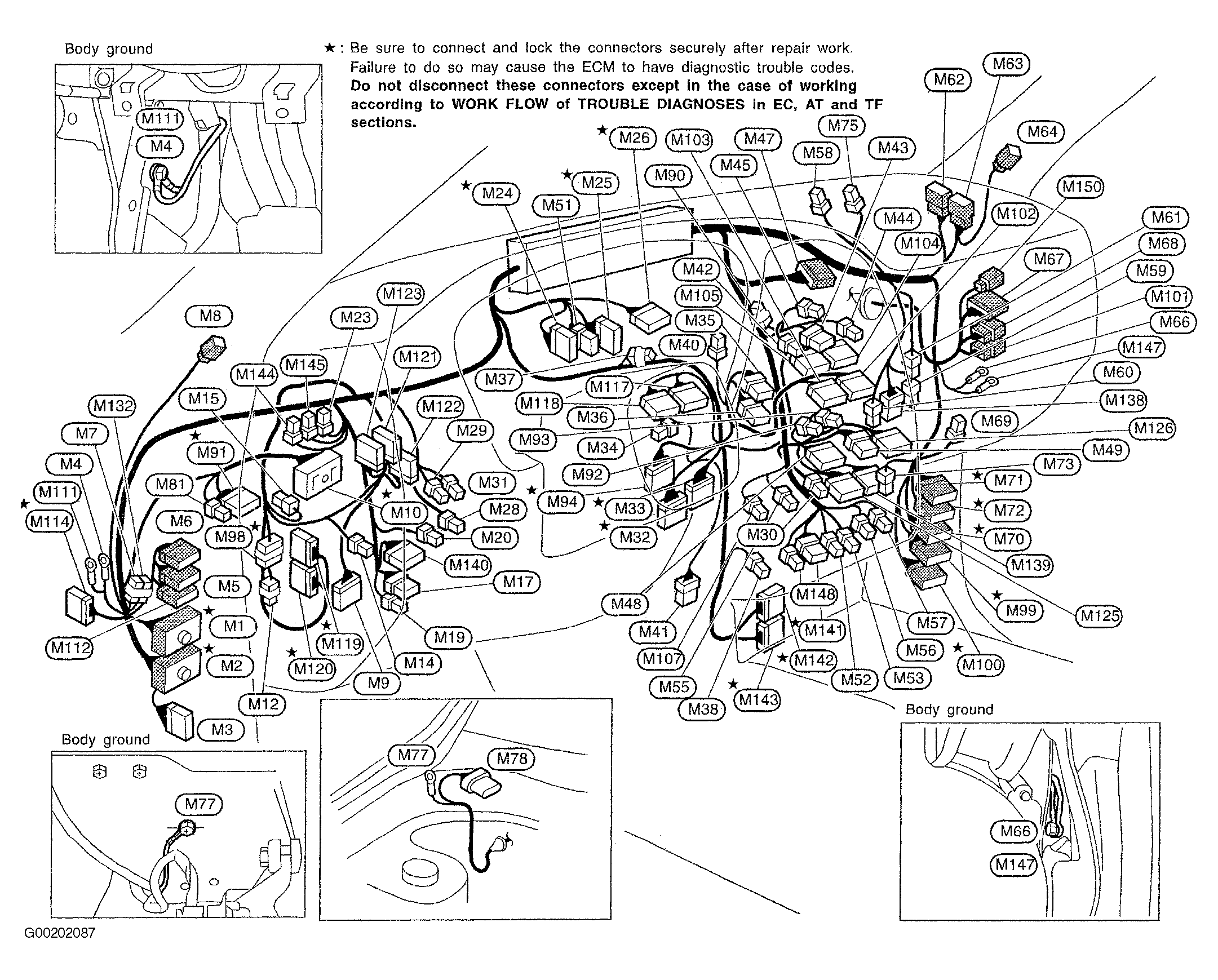

Fig 1: Locating Body Grounds M4, M66, M77, M111 & M147
G00202087Courtesy of NISSAN MOTOR CO., U.S.A.

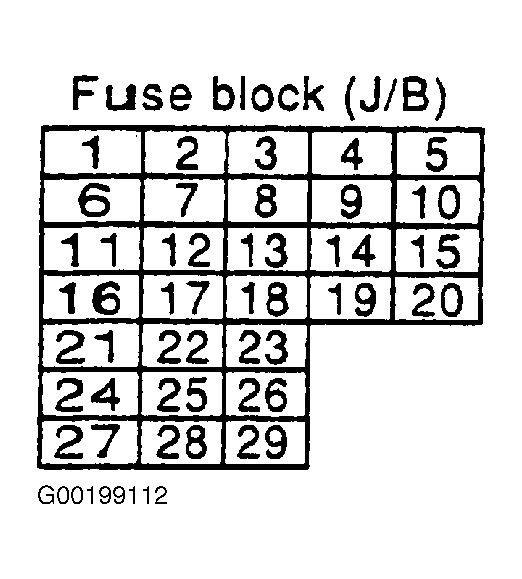

Fig 2: Locating & Identifying Fuse Block (J/B) Fuse Locations
G00199112Courtesy of NISSAN MOTOR CO., U.S.A.

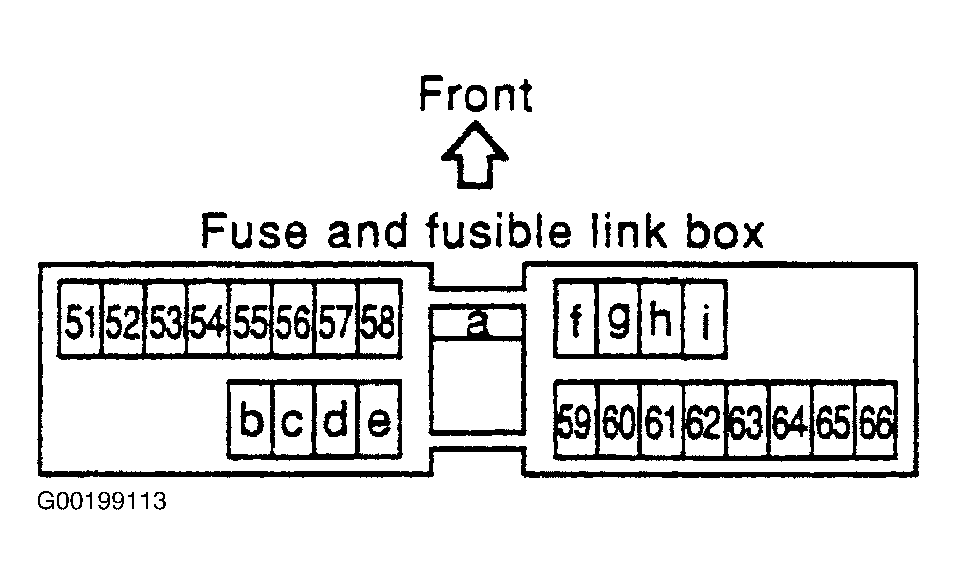

Fig 3: Locating & Identifying Fuse & Fusible Link Box Fuse & Fusible Link Locations
G00199113Courtesy of NISSAN MOTOR CO., U.S.A.

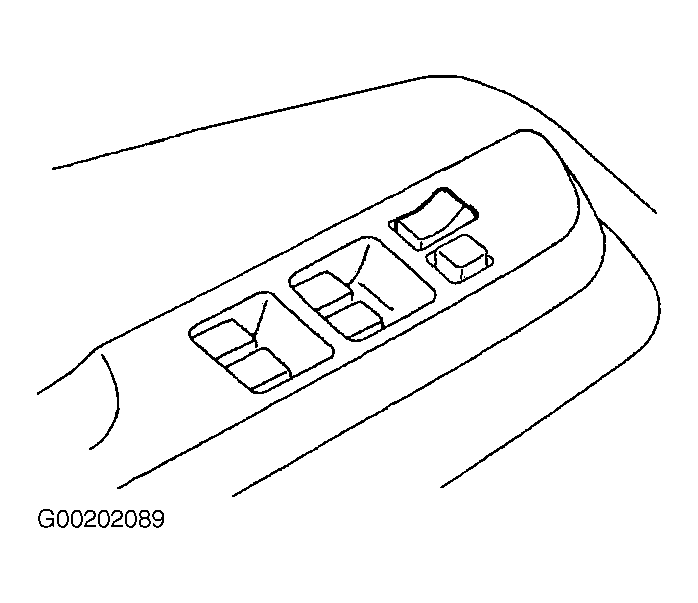

Fig 4: Locating Power Window Main Switch
G00202089Courtesy of NISSAN MOTOR CO., U.S.A.

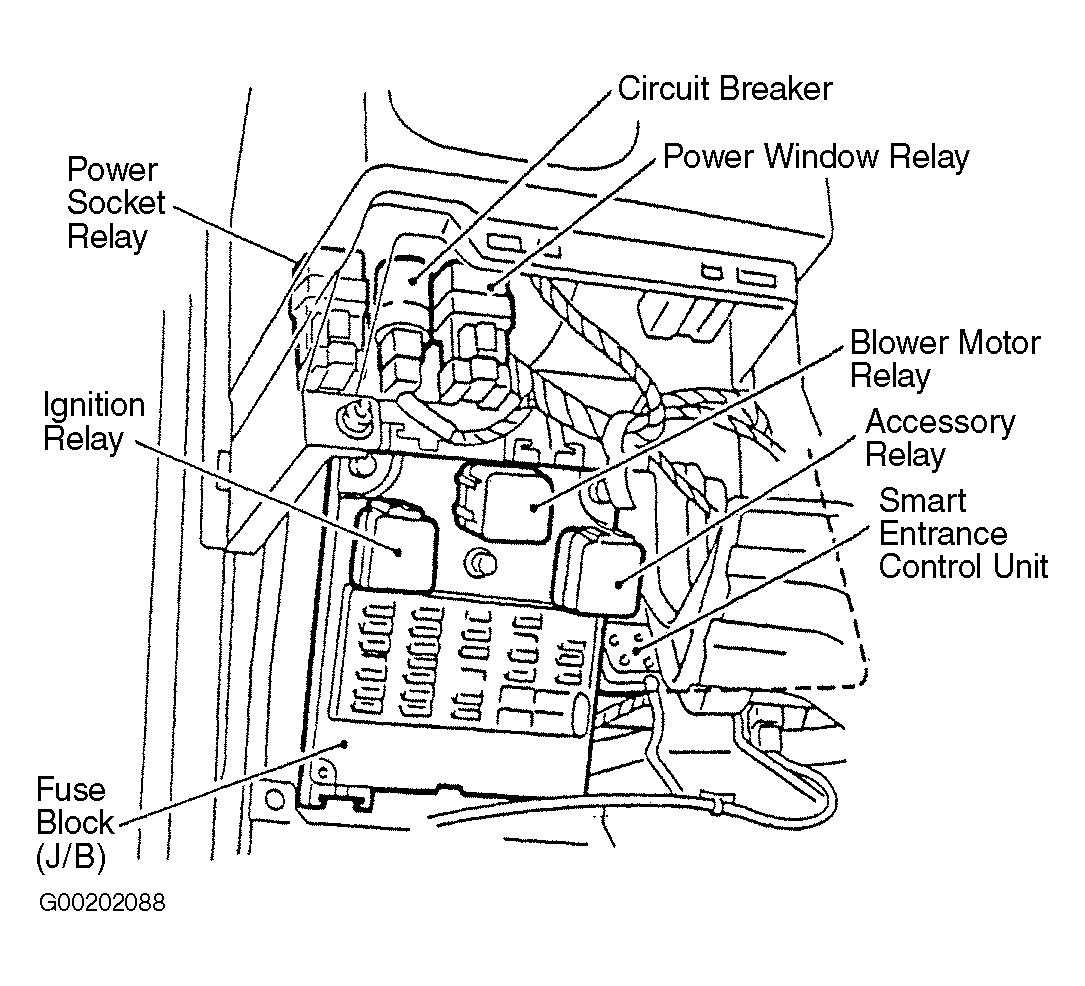

Fig 5: Locating Power Window Relay
G00202088Courtesy of NISSAN MOTOR CO., U.S.A.

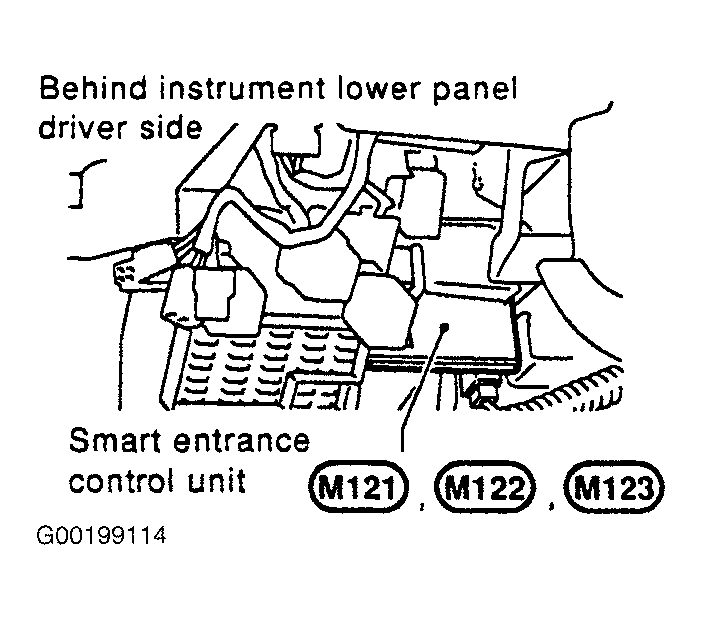

Fig 6: Locating Smart Entrance Control Unit
G00199114Courtesy of NISSAN MOTOR CO., U.S.A.
