Left Rear Window Operation (2002 Models)

WARNING: This page is about a different car, the 2003 Nissan Pathfinder and 2002 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

For left rear window operation check on 2002 model, see Fig 1 and Fig 2

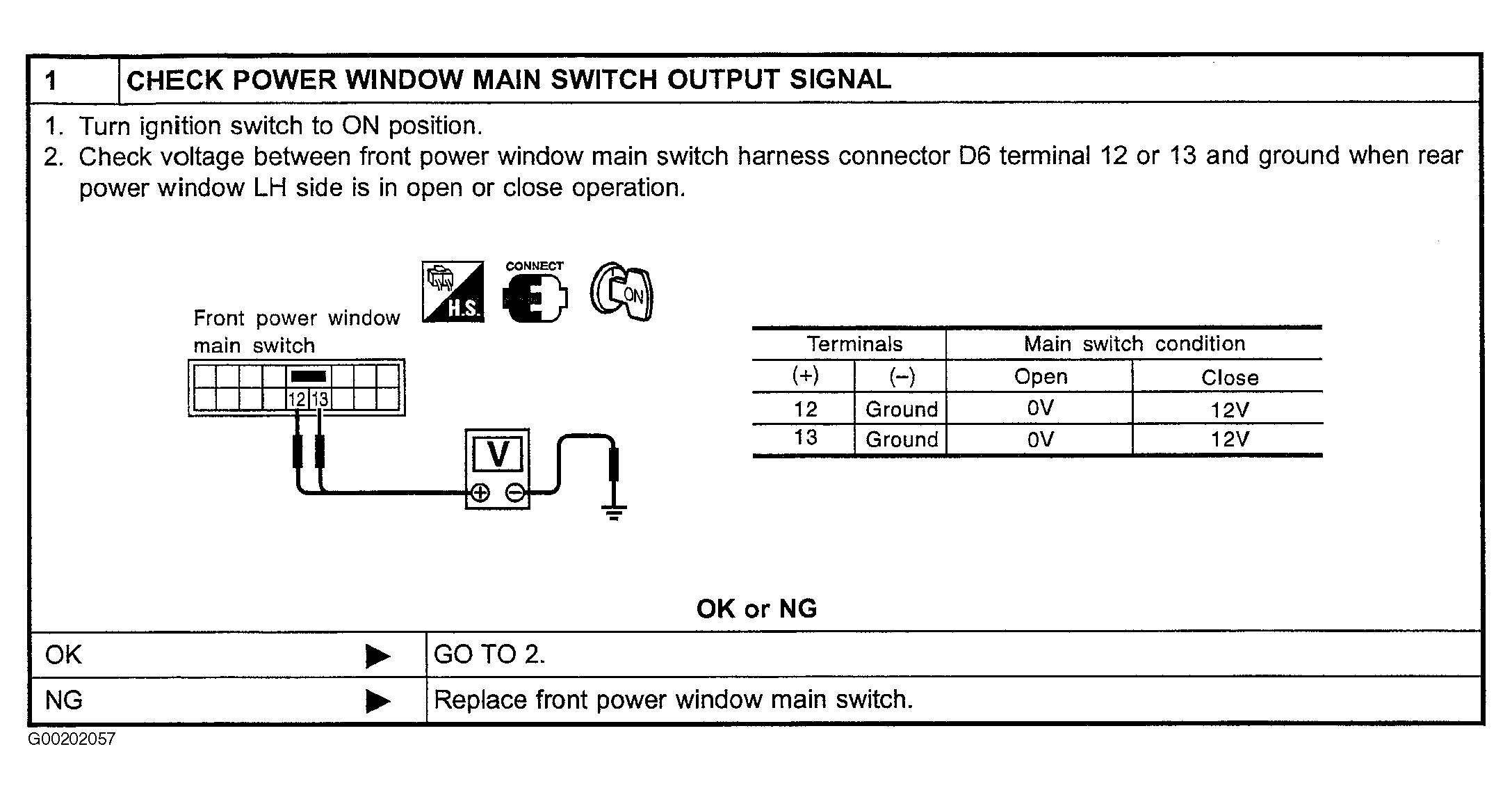

Fig 1: Performing Main Switch Operation Check, Left Rear Window, Step 1 (2002 Model)
G00202057Courtesy of NISSAN MOTOR CO., U.S.A.

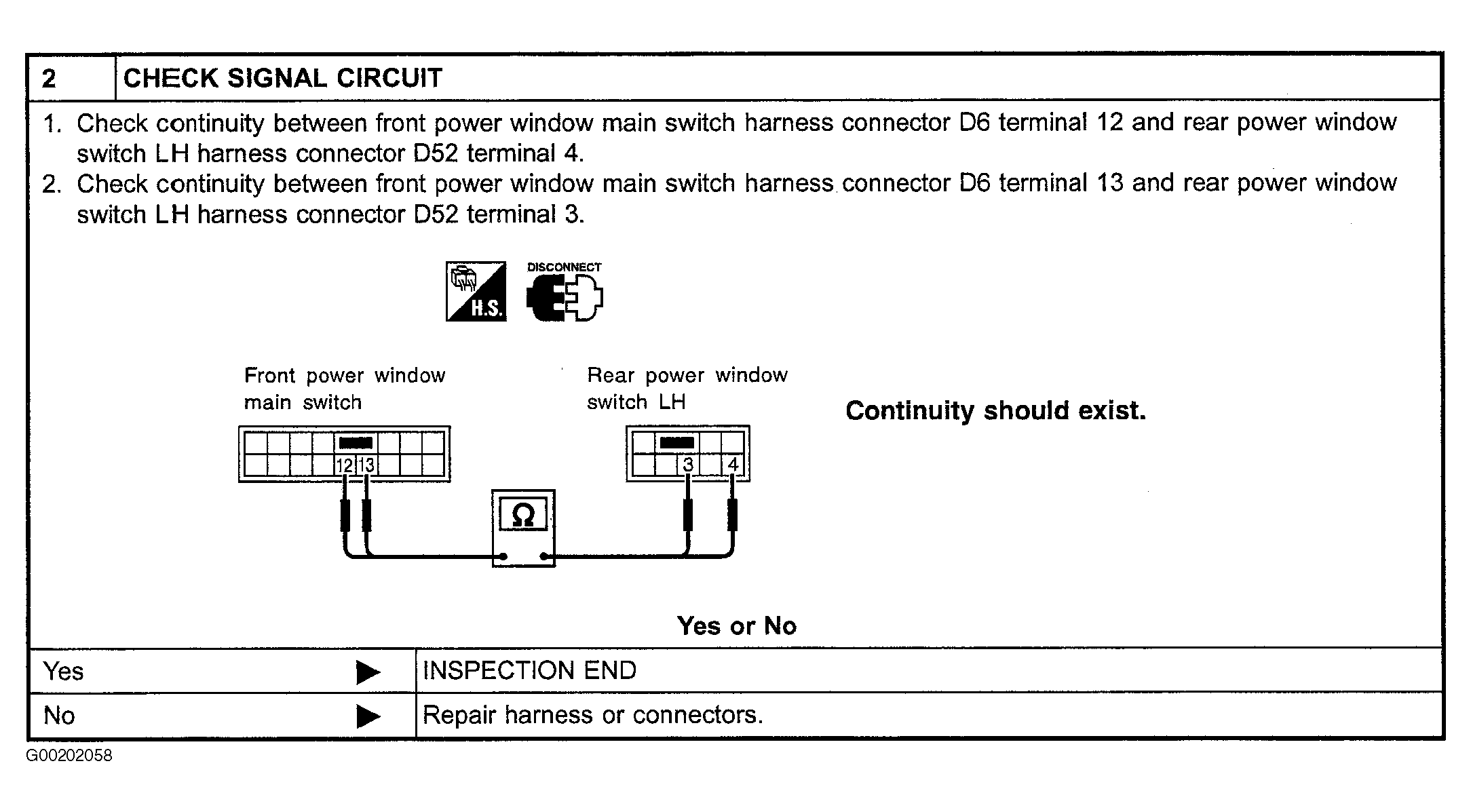

Fig 2: Performing Main Switch Operation Check, Left Rear Window, Step 2 (2002 Model)
G00202058Courtesy of NISSAN MOTOR CO., U.S.A.
