Combination Meter Circuit Inspection

WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check terminals and connector of combination meter for damage, bend and loose connection (meter side and harness side).
OK or NG

OK: GO TO 2.

NG: Repair terminal or connector.

CHECK HARNESS FOR OPEN CIRCUIT

Disconnect combination meter connector.

Check resistance between combination meter harness connector terminals.

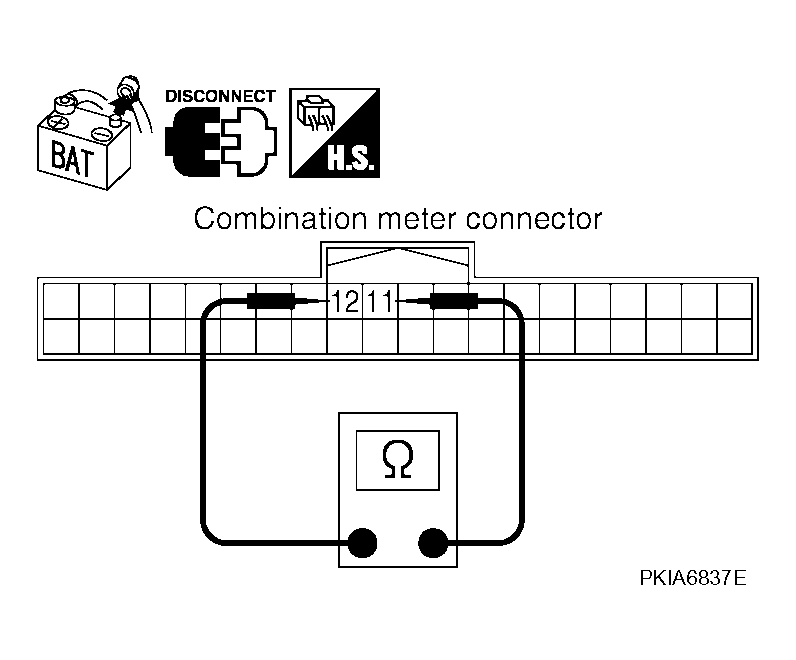

Fig 1: Checking Resistance Between Combination Meter Harness Connector Terminals

Courtesy of NISSAN MOTOR CO., U.S.A.

COMBINATION METER HARNESS CONNECTOR RESISTANCE

Combination meter connector	Terminal		Resistance (Approx.)
M24	11	12	54 - 66 Ω

OK or NG

OK: Replace combination meter.

NG: Repair harness between combination meter and data link connector.
