Special Service Tools
WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
The actual shapes of the Kent-Moore tools may differ from those of the special service tools illustrated here.
SPECIAL SERVICE TOOLS CHART
| Tool number (Kent-Moore No.) Tool name |
Description | |
|---|---|---|

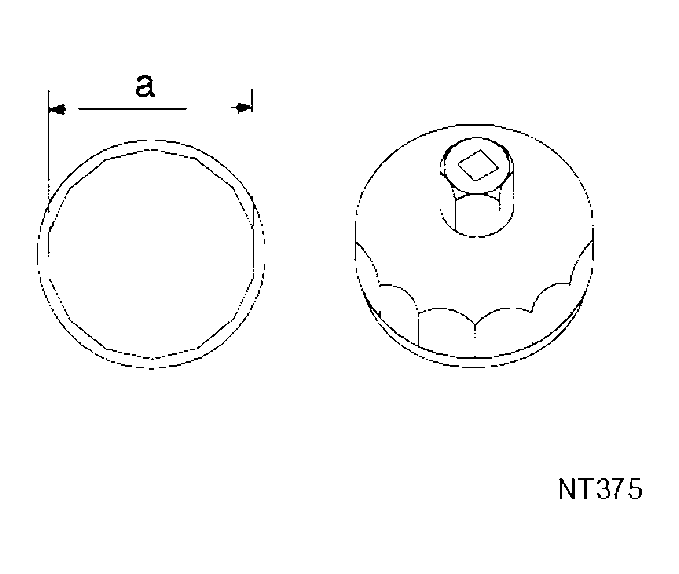

| KV10115801 (J-38956) Oil filter cap wrench | Removing and installing oil filter a: 64.3 mm (2.531 in) |
|
| KV991J0010 (J-23688) Engine coolant refractometer | Checking concentration of ethylene glycol in engine coolant | |

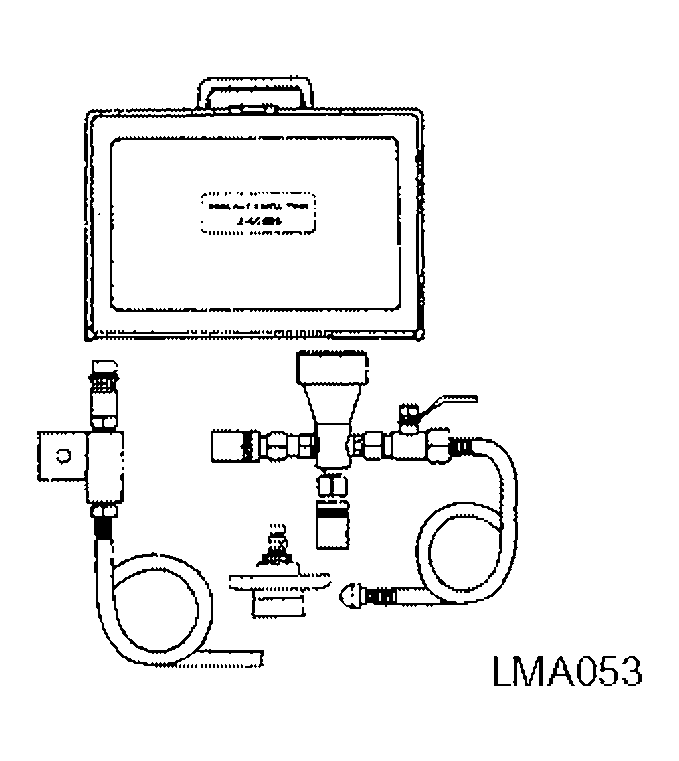

| KV991J0070 (J-45695) Coolant refill tool | Filling cooling system |
